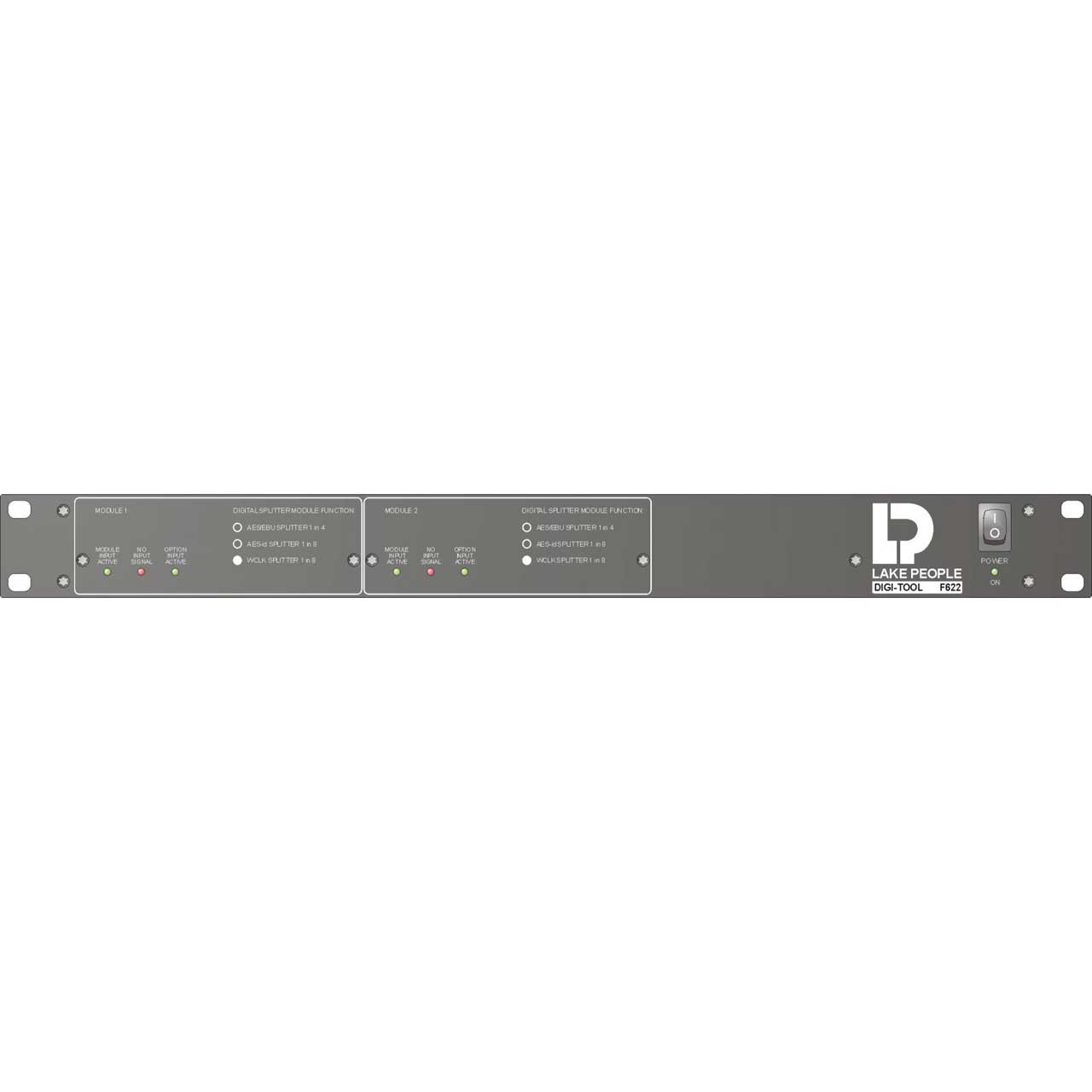

Lake People DIGI-TOOL F622 1RU 2 x 1 in 8 WORDCLOCK/AES-id Digital Audio Splitter

F622 - Overview

• Features:

  • Digital distribution amplifier for WCLK or AES-id signals
  • 2 inputs and 16 outputs
  • Two identical modules with 1 input and 8 outputs
  • Switched internally, 1 in 8 is also possible

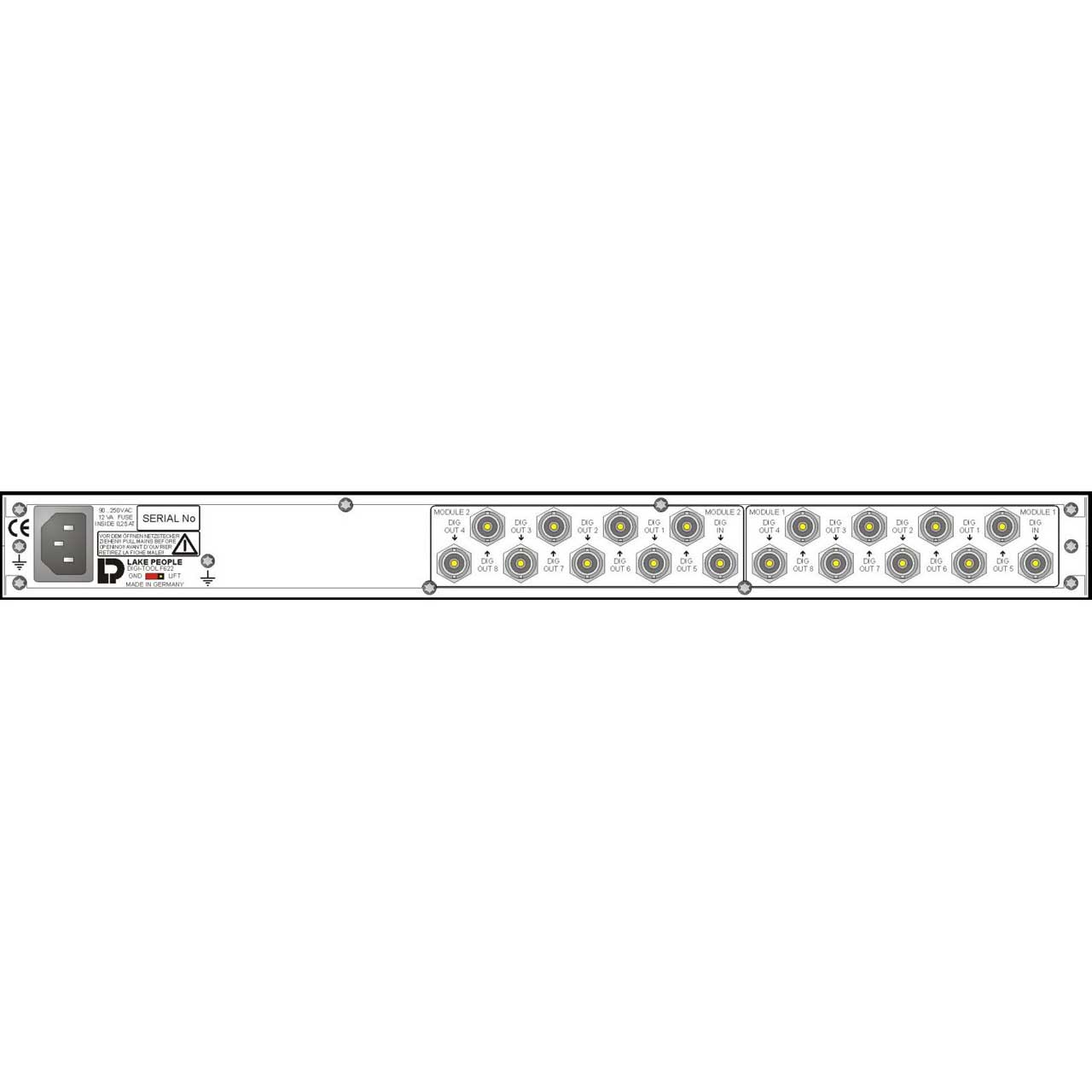

  • Inputs and outputs unbalanced, impedance 75 ohms via BNC sockets
  • Highly sensitive inputs to regenerate dirty and blurred signals
  • High output voltages for bridging large distances
  • Output impedance switchable from 75 ohms to 50 ohms via jumpers
  • Can be switched to "Superclock 256 Fs" via jumpers


• Specifications:

  • Dimensions: 483 x 44 x 166mm (19.02 x 1.73 x 6.54in)
  • Bit Depth: 24 Bit
  • Output Impedance: 50 / 75 Ohm
  • Input Sensitivity: < 200 mV
  • Input Impedance: 75 Ohm
  • Additional Features: optional multi-sync option available
  • Housing: 19" / 1RU
  • Power Supply: Internal 230 V / 115 V AC
  • SPDIF I/O: 2 / 16 (RCA)


• Item Includes:

  • 1x DIGI-TOOL F622
  • 1x power cord
  • 1x user manual


• GTIN:

  7426923821974
