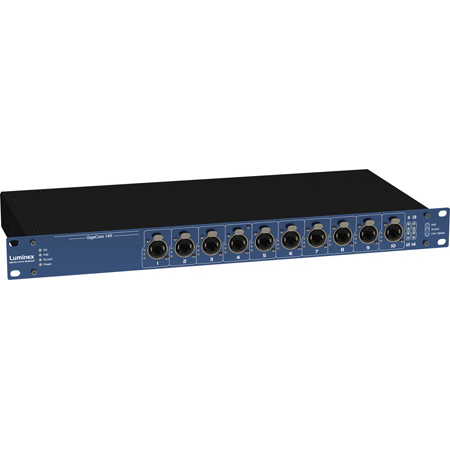

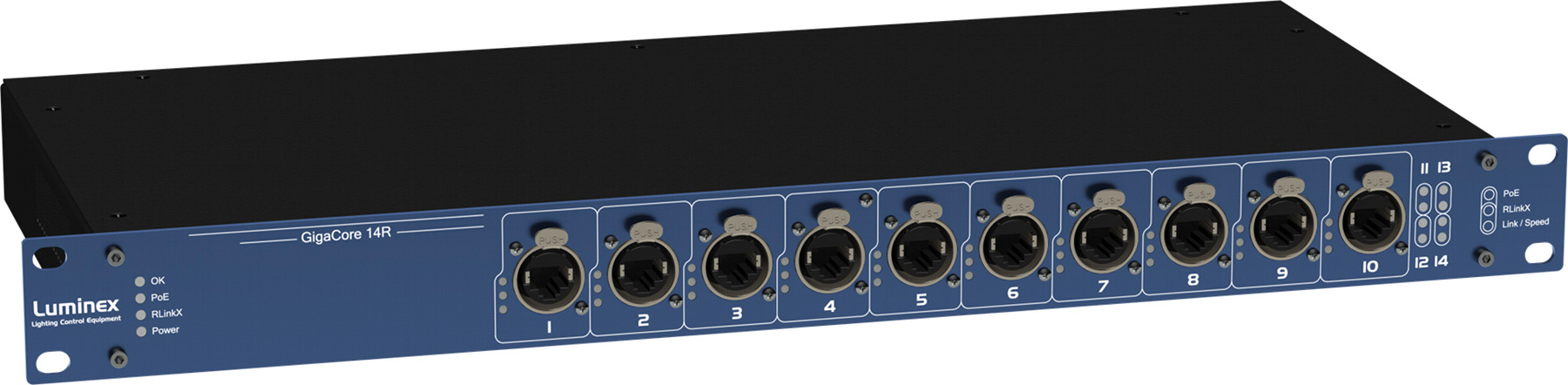

Luminex GigaCore 14RPOE Rackmount Touring 12-Port EtherCON & 2-SFP Port POE Gigabit Ethernet Switch / Dante / AES Switch

ITEM #: LUM-GC-14RPOE MFG #: LU 01 00038-POE

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LUM-GC-14RPOE

LU 01 00038-POE - Overview

Setup a Pro AV Network Without any IT Knowledge!

The GigaCore 14RPOE is a Gigabit Ethernet switch designed to cope with the most demanding lighting and AV installations. Managed through a web interface, the device offers a user friendly experience with an industry specific oriented interface. Fitted with two SFP cages, the switch can support any compliant fiber transceiver, breaking the limit of copper cable run. Two power backup ports at the rear of the unit makes the switch a reliable Gigabit core for your network. The GigaCore 14R comes with a bunch of industry oriented feature, providing a user friendly solution and lowering down setup time.

Focus on being creative again
Stop wasting time on programming your network or spending money on IT consultants to do it for you. With the Luminex GigaCore 14RPOE switch and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: “being creative”!

When distance matters: Fiber to the rescue
The Luminex GigaCore 14RPOE provides users with two SFP cages for Fiber connectivity. Just connect a multimode or single mode Fiber transceiver to each cage and it will enable you to cover greater distances with a total link immunity up to 10km!

Optional: Redundant Power Supply Unit (RPSU)
Connect the GigaCore 14RPOE to a GigaCore RPSU for ultimate redundancy, even on power level (and PoE). If for some reason the built-in power supply fails, the RPSU keeps your system up and running.

Free software included
LumiNet Monitor is a free software pack that will increase the comfort of working with Luminex equipment and together with the easy-to-use web interface for GigaCore’s, it adds high value to your project monitoring and preparation.

  • Features:

    • Tailored for AV industry: Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.
    • Easy set-up: Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).
    • Touring approved: Metal housing and ruggedized Ethercon connectors, ideal for touring and live events.
    • Converged networking: Transfer multiple protocols (Dante™, RAVENNA/AES67, ArtNet, MANet 1&2, sACN,Q-LAN)
    • Ultimate link redundancy: RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.
    • With PoE+: Don’t worry about power plugs anymore. PoE+ powers-up all compatible devices within the network.

  • Specifications:

    • Ethernet Connectivity: 12 x Shielded Neutrik Ethercon connectors
    • Fiber Connectivity: 2 x SFP cages
    • Ethernet Port Speed: 1Gbps
    • Serial: 1 x serial RJ45 console port

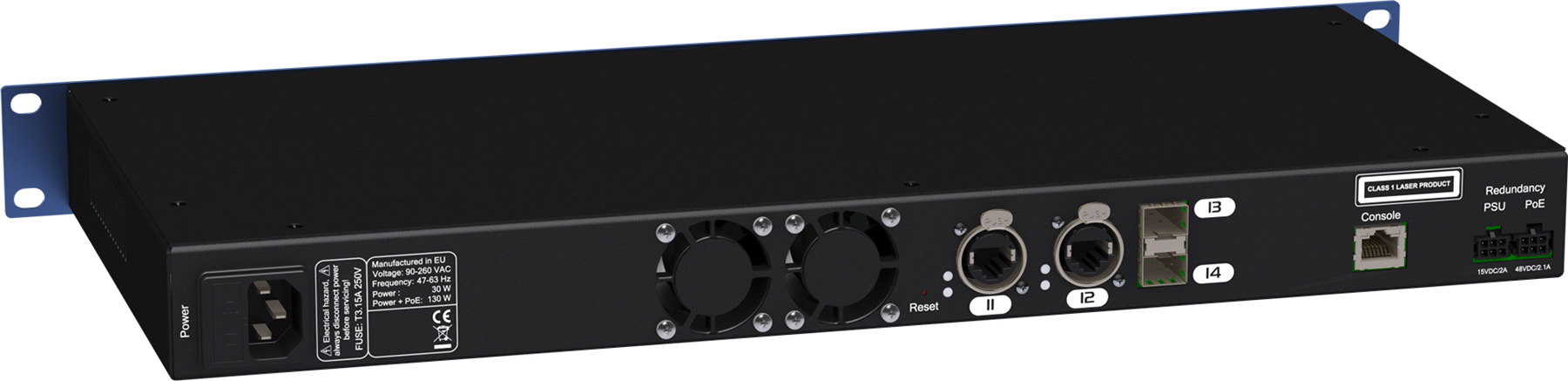

    • Power Connectivity:
      1 x IEC (14C) inlet with fuse holder
      1 x redundant power input on Molex Micro-Fit 6 pin connector
      1 x redundant PoE input on Molex Micro-Fit 6 pin connector
    • Power Input: 100-240VAC, 50-60Hz
    • Power Consumption: Maximum 30W or 180W with PoE
    • Fuse: 3.15A 250V Slow Blow
    • Backup Power Input: 15VDC / 2A
    • Backup PoE Power Input: 48VDC/3.4A
    • PoE: Optional on front ports only (up to 160W)
    • Mounting: Rack
    • Enclosure: Robust Metal Housing
    • Dimensions: 19" x 8.04" x 1.73" (WxDxH)
    • Weight: 6.4 lbs
    • Environment:
      Operating temperature: 32 to 122 °F
      Storage temperature: 14 to 158 °F
      Humidity (non condensing): 5 to 95% RH
    • Noise Level:
      Max 30dBA (Ambient: 32 - 95°F)
      Max 42dBA (Ambient: 95 - 122°F)

  • Supported Protocols & Compliance

    :

    • Supported protocols: Dante, RAVENNA/AES67, Ethersound, Q-LAN, REAC, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
    • Sound protocol compliance: Yes (low jitter)
    • Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
