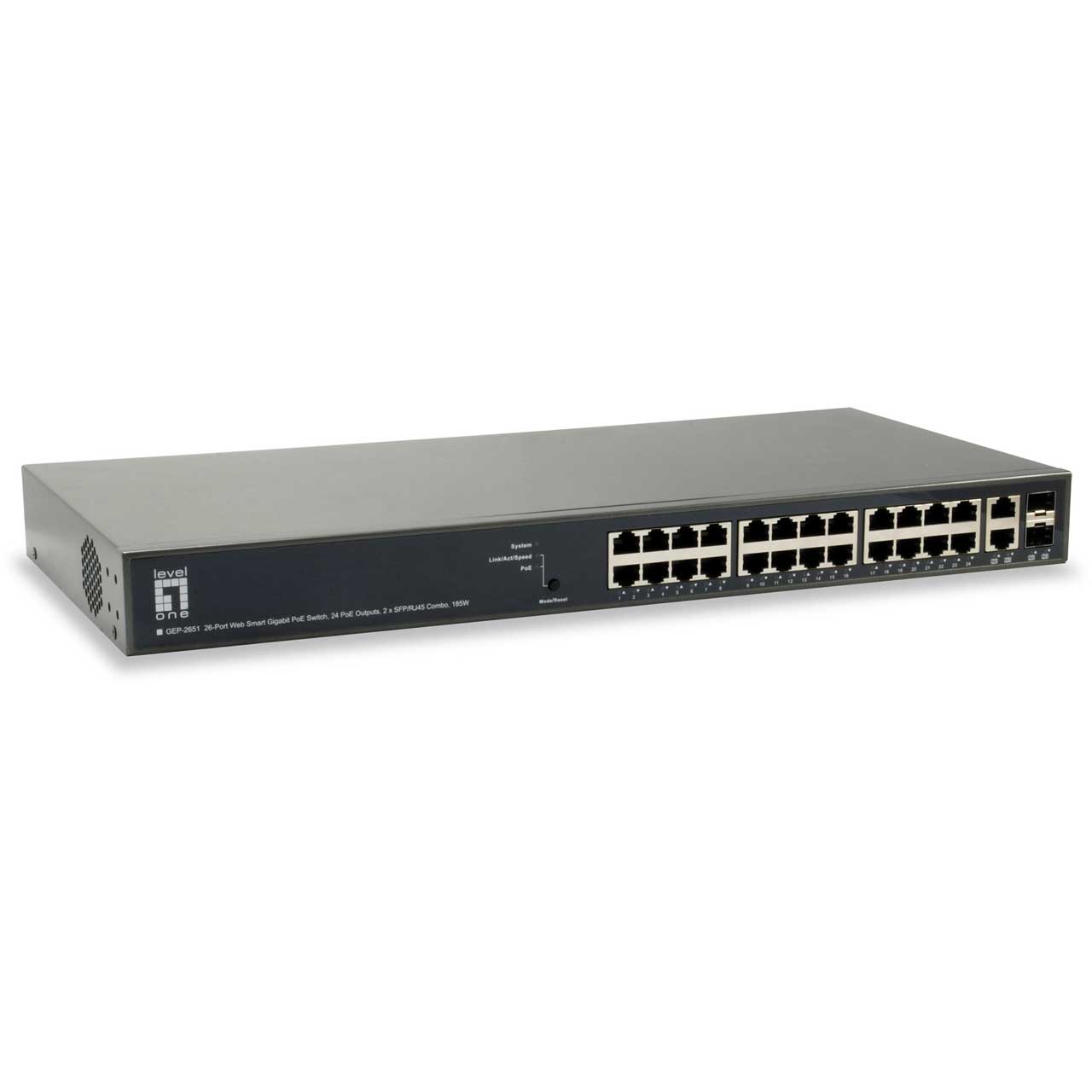

LevelOne GEP-2651 TURING 26-Port Web Smart Gigabit PoE Switch - 24 PoE Outputs/2xSFP/RJ45 Combo - 802.3at/af PoE - 185W

GEP-2651 - Overview

• Features:

  • 24 Gigabit PoE ports and 2 Gigabit RJ45/SFP combo ports
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Total PoE power budget: 185W, up to 30W per port
  • QoS control for traffic prioritization and bandwidth management
  • DHCP Client/Server
  • Supports IPv4/IPv6 network operation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
  • Supports port-based VLAN, IEEE 802.1Q VLAN Tagging
  • The built-in Device Management System (DMS) provides management, diagnostics and monitoring to connected network components and devices


• Specifications:

  • Standards:
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
    IEEE 802.3z 1000BASE-X,Gigabit Ethernet
    IEEE 802.1p Quality of Service (QoS)
    IEEE 802.1X Port-based Network Access Control (PNAC)
    IEEE 802.1Q Virtual LANs (VLANs)
    IEEE 802.1D MAC Bridges
    IEEE 802.1d Standard Spanning Tree Protocol
    IEEE 802.1s Multiple Spanning Tree (MSTP)
    IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    IEEE 802.3af Power over Ethernet (PoE)
    IEEE 802.3at Power over Ethernet Plus (PoE+)
    IEEE 802.3az Energy-Efficient Ethernet
  • Protocols: Link Layer Discovery Protocol (LLDP)
  • Memory: RAM : 128 MB Flash : 32 MB
  • Buffer Memory: 512 KB
  • Port: 24x 10/100/1000Mbps RJ45 PoE port; 2x Gigabit RJ45/SFP combe port
  • Button/Knob: Mode / Reset Button
  • Indicator: System, Link/Act/Speed, PoE
  • Transmission Method: Store-and-Forward

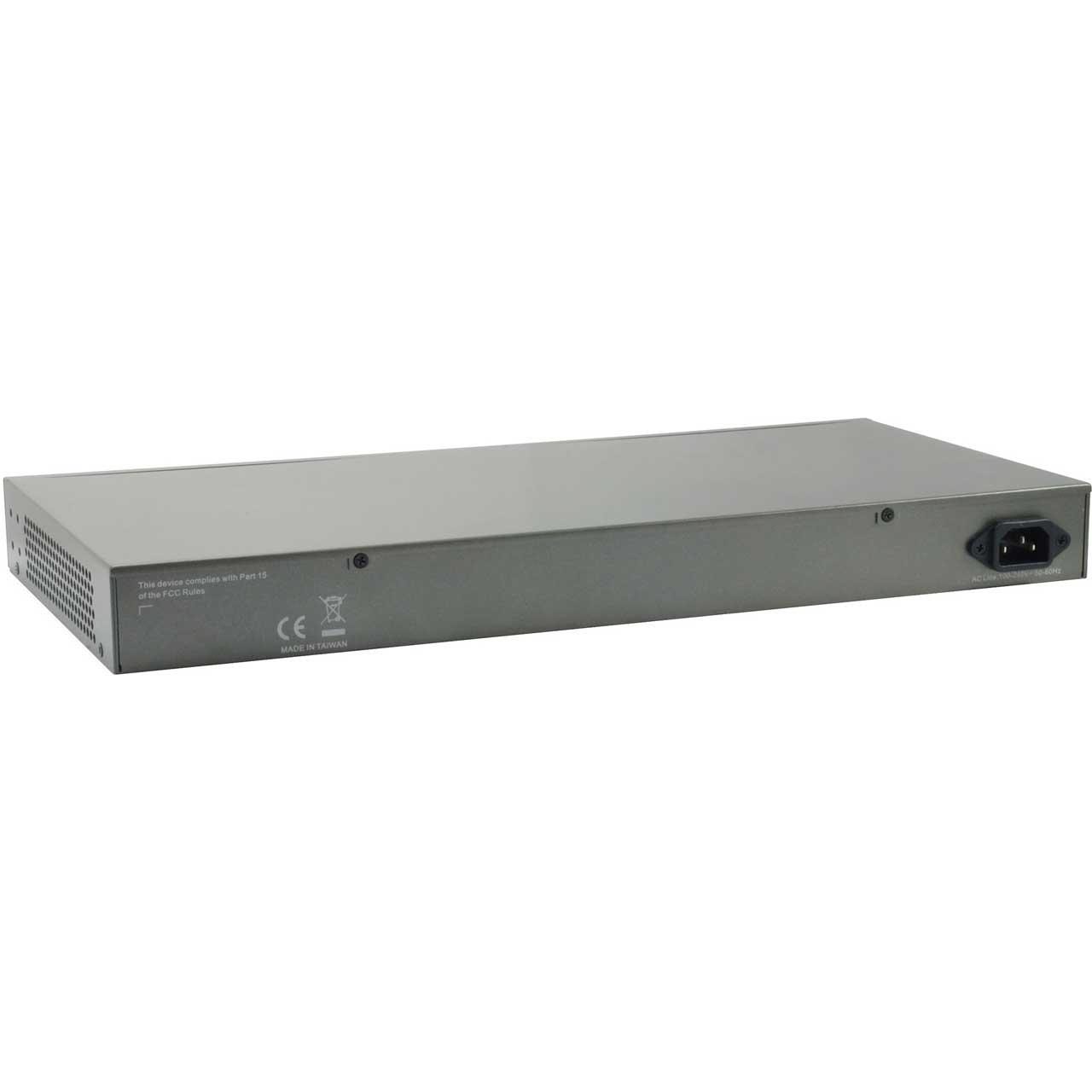

  • Power Input: 100-240 VAC 50~60 Hz
  • Power Consumption: 18.29W (without PoE)
  • Backplane (Gbps): 52Gbps
  • MAC Address Table: 8K
  • Data Rate: 10/100/1000Mbps
  • Power Saving: IEEE 802.3az Energy Efficient Ethernet:
    Automatically turns power off on RJ-45 port when detecting link down or Idle of client
    Cable length detection: Adjusts the signal strength based on the cable length
    Reduces the power consumption for cables shorter
  • Operating Temp: 0°C to 45°C
  • Storage Temp: -20°C to 70°C
  • Humidity: 10 to 90% (non-condensing)
  • Mount: 19-inch rack-mountable

    General:
  • Device Management System (DMS)
  • Virtual Local Area Network (VLAN):
  • 802.1Q tag-based VLAN - up to 256 VLANs and 4096 VLAN IDs
  • Port-based VLAN
  • MAC-based VLAN
  • Q-iN-Q (double tag) VLAN
  • DHCP: DHCP Client
  • IPv6:
  • Native IPv6 and IPv4/IPv6 Dual Stack
  • IPv6 host mode; IPv6 stateless address auto-configuration; Duplicate Address Detection (DAD)
  • ICMP v6;
  • IGMP:
  • IGMP v1/v2/v3 snooping; IGMP Queried; IGMP Proxy
  • IPv6 QoS Prioritize IPv6 packets in hardware
  • Port Mirroring:
  • Many-to-One TX/RX
  • QoS Class of service (CoS)
  • DiffServ (DSCP)
  • IEEE802.3x Flow Control

    PoE:
  • Power Budget: Max. 185W
  • Power Output: Up to 30W per port
  • Protection: Circuit protection to prevent power interference between ports
  • Management: PoE status, PoE on/off scheduling, PoE power delay, PoE Auto checking, Per port power priority setting
  • Pin Assignment: 1/2(+), 3/6(-)
  • Security: ACLs: L2/L3/L4; ACLs: IPv6 Support
  • Port Security (MAC-based)
  • IP Source Guard
  • ARP Inspection
  • Mac Flooding
  • Storm Control
  • RADIUS Authentication 802.1x
  • HTTPs and SSL (Secured Web)
  • BPDU Guard
  • STP Root Guard
  • DHCP Snooping
  • Loop Protection

    Management:
  • Switch Management:
  • HTTP,HTTPS
  • DHCP: Client, Option 66, Option 67
  • Event/Error Log: Syslog, SMTP(RFC821)
  • Management Access Filtering: SNMP, Web
  • PoE Management: Scheduling, Auto-Checking, Power DelaySNMP (v1/v2c/v3)
  • RMON (1,2,3 & 9 Groups)
  • Software Upgrade
  • Configuration Export/Import
  • Port Mirroring
  • LLDP (IEEE802.1AB)
  • LLDP-MED (IEEE802.1AB)
  • CDP Aware
  • IPv6 Management
  • NTP
  • L3: DHCP Server; Static Route
  • Ease of Use: Firmware and Configuration: Upgrade via HTTP

    Performance
  • Packet Forwarding Rate: 38.68 Mpps
  • Jumbo Frame (K): 9.6K
  • Switching Capacity: 52 Gbps
  • Dimensions (WxDxH): (442 x 211x 44mm)
  • Weight: 6.83Lbs (3100g)
  • MTBF: 77°F (25°C): 211,272 (hr) 104° (40°C): 103,032(hr)
  • Approval and Compliance: EMI/EMS: CE, FCC Part 15 Class A, ROHS
  • Safety: UL 60950-1, 2nd Edition, 2014-10-14 (Information Technology Equipment - Safety - Part 1: General Requirements) CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Information Technology Equipment - Safety - Part 1: General Requirements)


• Item Includes:

  • x1 GEP-2651
  • x1 19" Rack Mount Kit
  • x1 Resource CD (User Manual, QIG)
  • x1 Power Cord
  • x1 Quick Installation Guide


• GTIN:

  0846359041888
