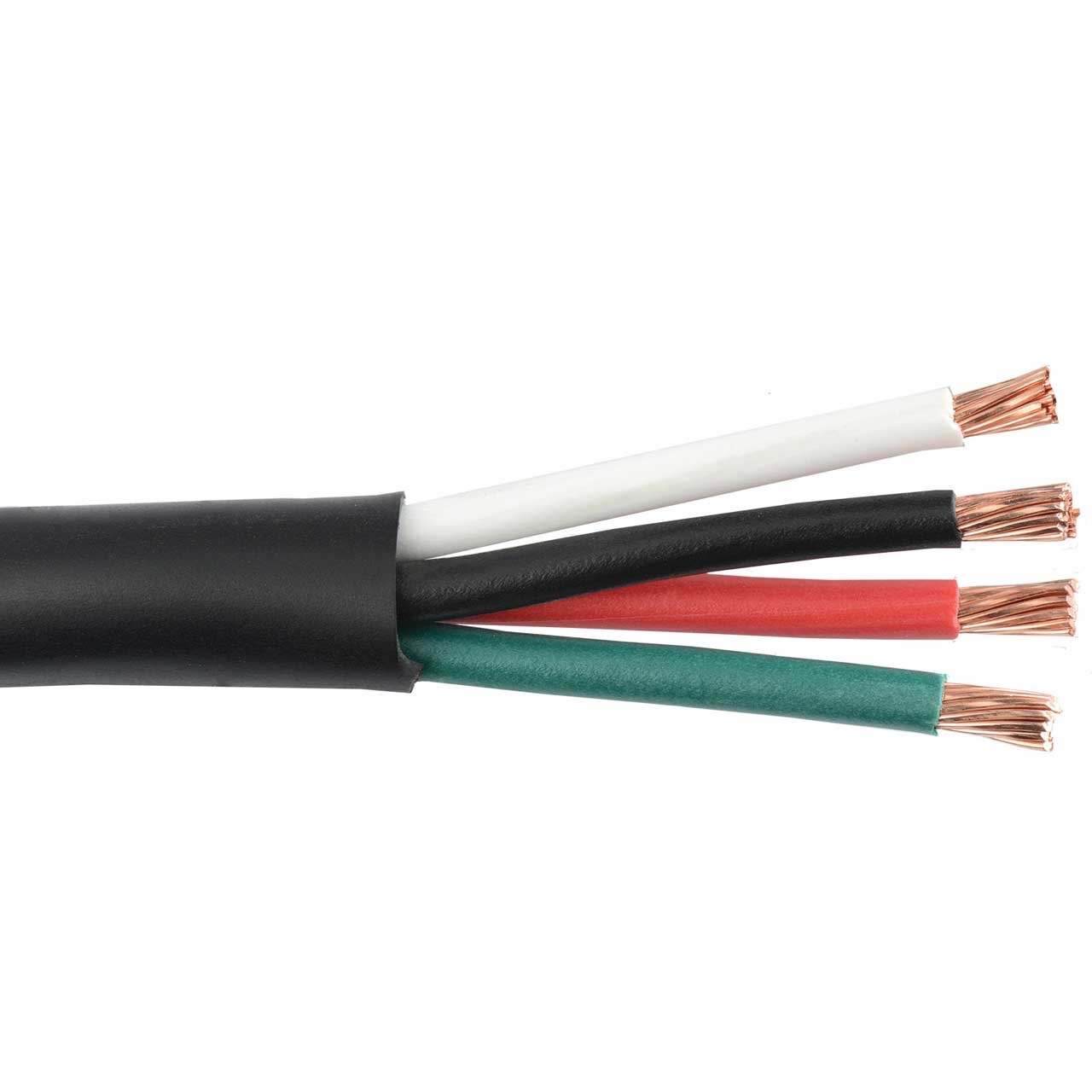

Liberty 12-4C-BLK Commercial Grade General Purpose 12 AWG 4 Conductor Audio Cable Reel 1000 Ft Black

12-4C-BLK - Overview

• Features:

  • Stranded Annealed Bare Copper Conductors
  • Semi-Rigid PVC Insulation
  • Twisted, unshielded
  • Riser rated PVC Jacket
  • NEC CL3R, CEC CMG FT4 for Audio Only, RoHS Compliant


• Specifications:

  • Conductor-
  • 12 AWG
  • 19-strand annealed bare copper conductors
  • Diameter: 0.090" | 2.29mm
    Electrical-
  • DC resistance: 1.71 Ω / 1000’ | 5.61 Ω/KM
  • Mutual capacitance: 34.6 pF/FT | 113.49 pF/M
  • Impedance: 53 Ω
  • Inductance: 0.15µH/FT | 0.49µH/M
  • Velocity of Propagation: 55%
  • Voltage rating: 300V
  • Maximum current: 9.6A@25°C
    Insulation-
  • Polyvinyl chloride
  • Wall thickness: 0.010"
  • Diameter: 0.110"
    Regulatory-
  • NEC: CL3R 60°C
  • CEC: CMG FT4 For Audio Only 60°C
  • EU RoHS-2 2011/65/EU Compliant
    Color Code:Black, Red, White, Green
    Packages-
  • Reel: 1000
  • Weight: 117 Lbs
    Assembly-
  • 4 conductors twisted
  • Lay length: 3.0"
  • 4.0 twists per foot
    Installation-
  • Pull Tension: 196 Lbs
  • Bend radius: 3.26"
  • Bend radius: 6.52"
    Construct: Ripcord under jacket
    Applications-
  • Riser commercial and residential speaker level audio
  • General purpose 70V commercial speaker audio
  • General purpose Class 2 and 3 power
    Performance: Speaker level audio to 120 feet
    Jacket-
  • Flame rated polyvinyl chloride
  • Colors: Black, Gray
  • Wall thickness: 0.028"
  • Diameter: 0.326"
  • Final Outside Diameter (inches): 0.326


• Warranty:

  • 2 Years
