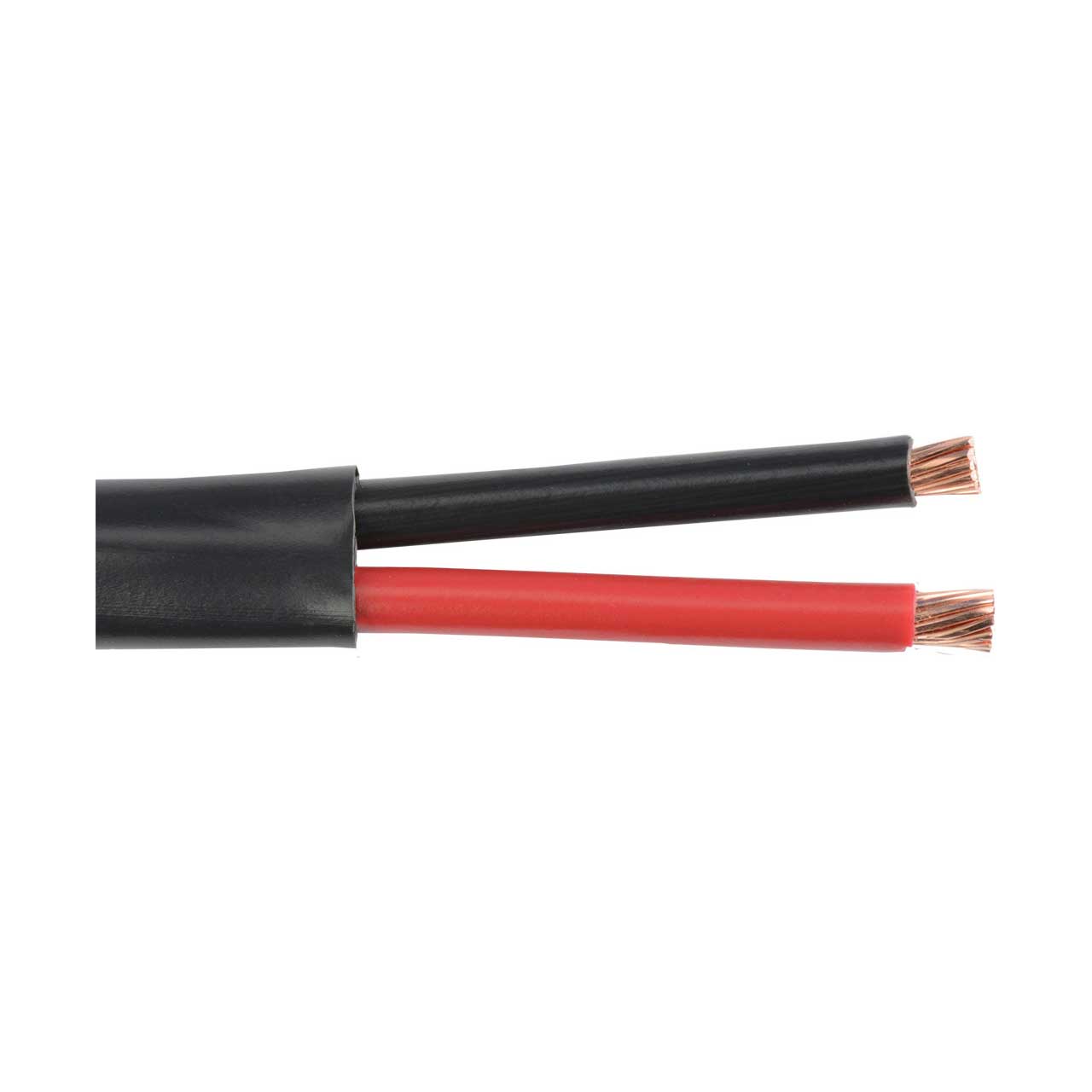

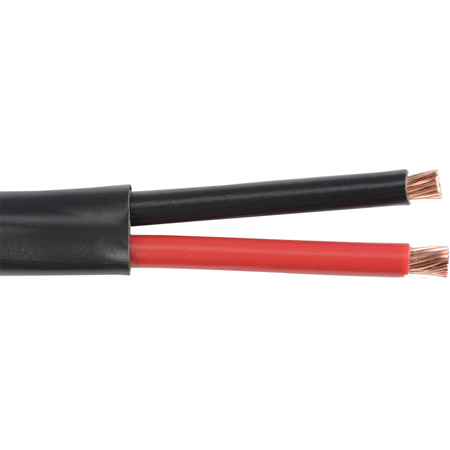

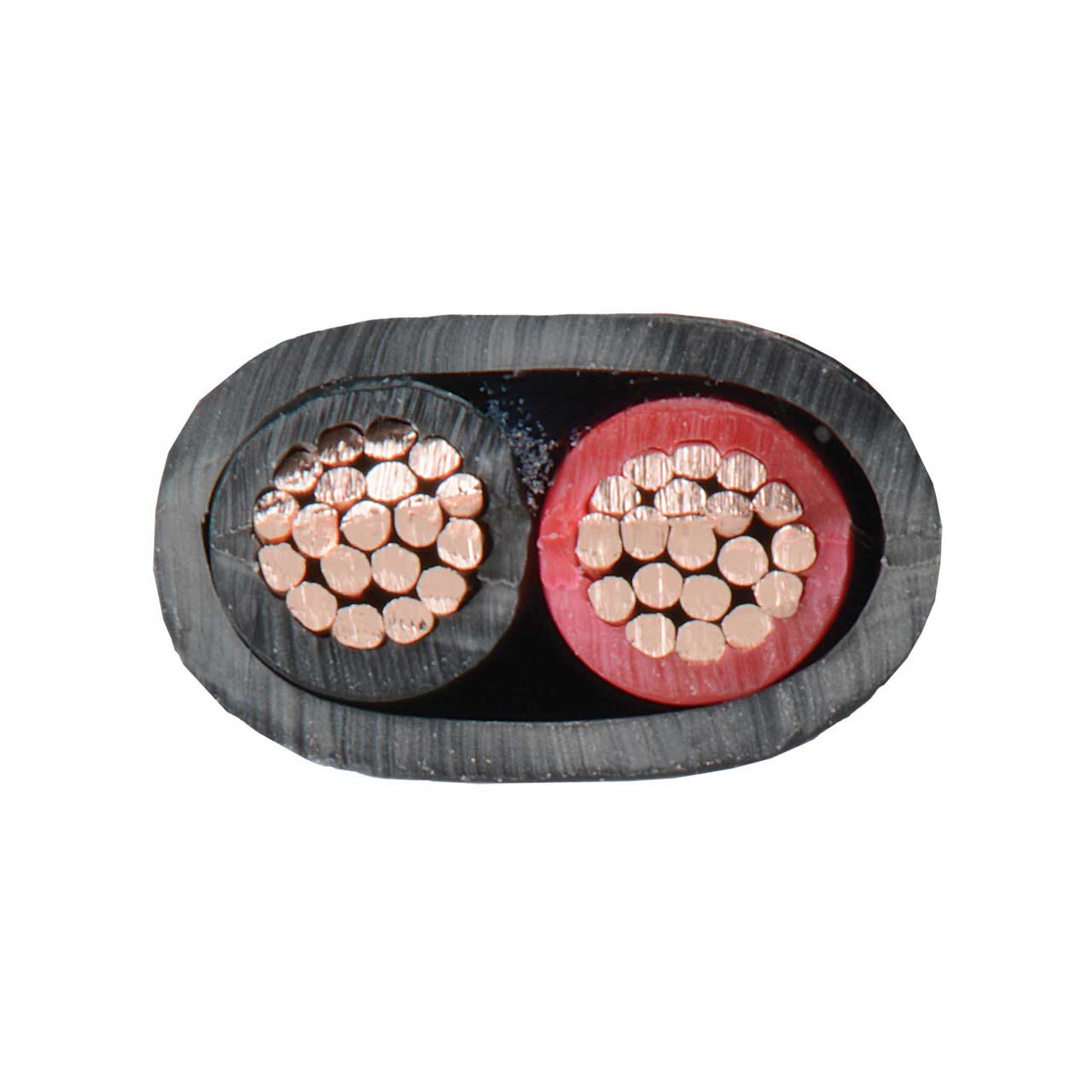

Liberty 14-2C-BLK Commercial Grade General Purpose 14 AWG 2 Conductor Speaker Cable Reel 1000 Foot

ITEM #: LWC-14-2C-BLK MFG #: 14-2C-BLK

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Liberty AV Solutions
Free Shipping with $49 Minimum Order

List Price:

$786.00

Our Price:

$707.40

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

14-2C-BLK - Overview

Liberty's 14-2C-BLK is a 2 conductor 14 AWG stranded, twisted, and unshielded cable NEC type CL3R and CEC type CMG FT4 for Audio Only. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725.

  • Features:

    • Stranded annealed bare copper conductors
    • Semi-rigid PVC insulation
    • Twisted, unshielded
    • Riser rated PVC jacket
    • NEC CL3R, CEC CMG, RoHS compliant


  • Specifications:

    • 19-strand annealed bare copper conductors
    • AWG: 14
    • Diameter: 0.070" / 1.78mm
    • DC resistance: 2.73 Ω / 1000' / 8.95 Ω/KM
    • Mutual capacitance: 32.9 pF/FT / 107.91 pF/M
    • Impedance: 56 Ω
    • Inductance: 0.15µH/FT / 0.49µH/M
    • Velocity of Propagation: 55%
    • Voltage rating: 300V
    • Maximum current: 8A@25°C
    • Reel: 1000' / 305M
    • Weight: 41 Lbs/1000' / 62 Kg/KM
