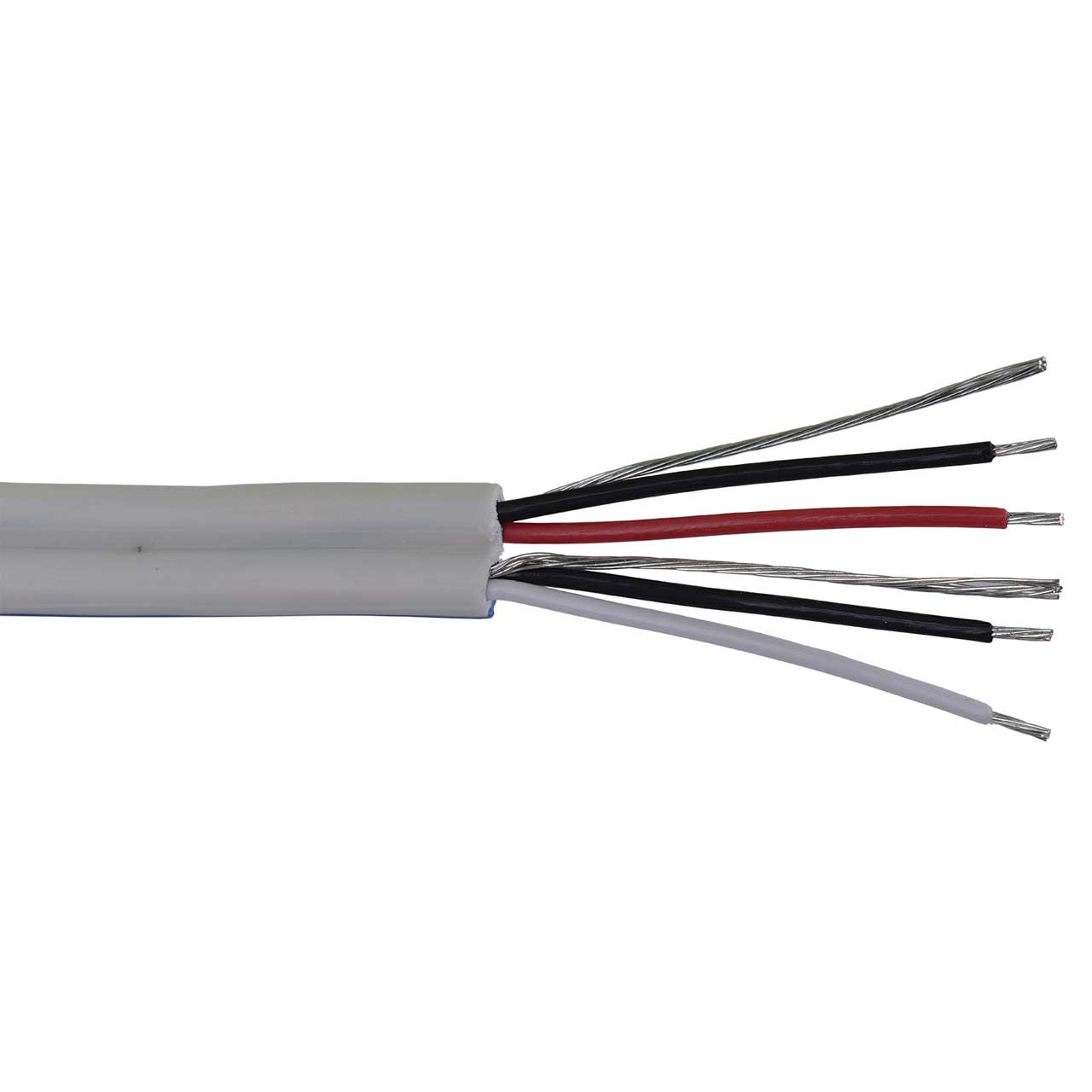

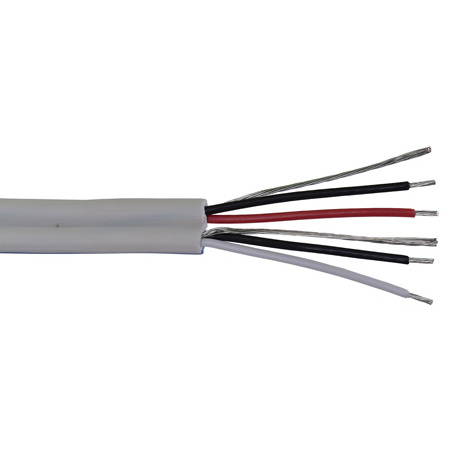

Liberty 22-2P-SIAM-EZ Black High Performance EZ-Strip Broadcast Audio 22 AWG 2 Pair Shielded Cable Reel - 1000 Feet

22-2P-SIAM-EZ - Overview

• Features:

  • 7-Strand Annealed Tinned Copper Conductors
  • Cellular FEP Dielectric Insulation
  • Tightly Twisted and Shielded
  • Semi-Pressure Extruded Plenum Alloy Jacket
  • Foil Shield bonded to inside of jacket for EZ-Stripping
  • SPT or ZIP Style Construction with two legs in parallel
  • NEC CMP, CEC CMP FT6, RoHS Compliant


• Specifications:

  • Conductor
  • 22 AWG
  • 7-strand tinned annealed copper conductors
  • Diameter: 0.030"

    Electrical
  • DC resistance: 16.6 Ω / 1000’
  • Mutual capacitance: 15.5 pF/FT | 50.84 pF/M
  • Impedance: 75 Ω
  • Velocity of Propagation: 79%
  • Voltage rating: 300V
  • Maximum current: 2.3A@25°C

    Insulation
  • Foam fluorinated ethylene propylene
  • Wall thickness: 0.010"
  • Diameter: 0.050"

    Regulatory
  • NEC: CMP 75°C
  • CEC: CMP FT6 60°C
  • EU RoHS-2 2011/65/EU Compliant

    Color Code
  • Pair 1: Red, Black
  • Pair 2: White, Black

    Packages
  • Reel: 1000’
  • Weight: Lbs/1000’

    Assembly
  • Pair lay length: 2.0"
  • 6.0 twists per foot

    Installation
  • Pull Tension: 31 Lbs
  • Bend radius: 2.85" unloaded
  • Bend radius: 5.70" loaded
  • Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature

    Construct
  • two jacketed pairs in parallel and joined with a web

    Shield
  • Each pair:
  • 100% aluminum/polyester tape foil in
  • 24 AWG 7-strand tinned copper drain

    Performance
  • Assuming 600 Ω source impedance:
  • Line level balanced audio 450 feet

    Jacket
  • Each pair:
  • Pressure extruded plenum rated polyvinyl chloride
  • Colors: Natural white with royal blue stripe on Pair 2
  • Wall thickness: 0.015"
  • Cable diameter: 0.140" x 0.285"
  • Final Outside Diameter: 0.140" x 0.285"
