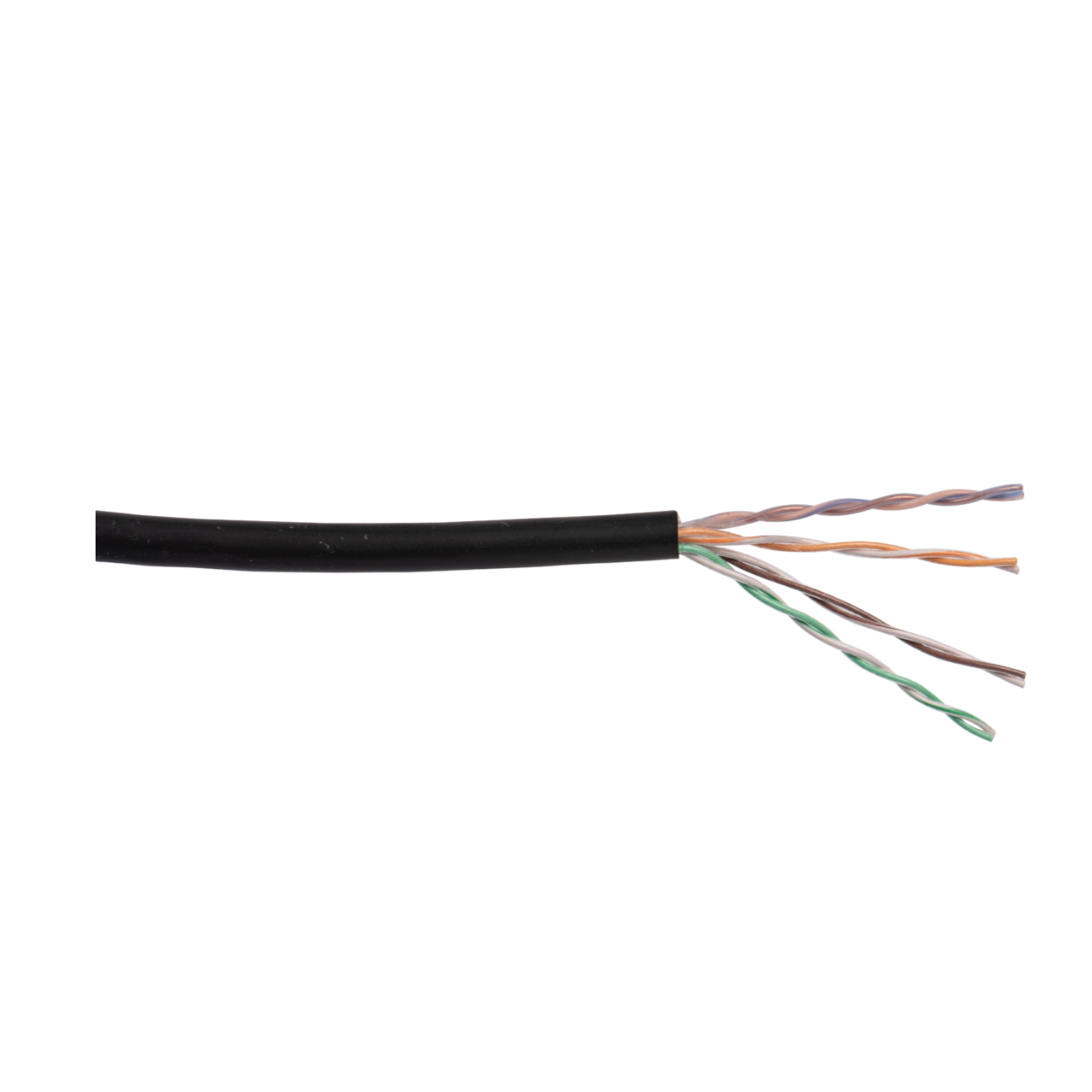

Liberty 24-4P-L5-EN-BLK Category 5e U/UTP EN Series 24 AWG 4 Pair Unshielded Cable - Black- 1000 Foot

24-4P-L5-EN-BLK - Overview

• Features:

  • Solid annealed bare copper conductors
  • High-density polyethylene insulation
  • 4 pairs twisted in varying lays and cabled
  • Flame rated PVC jacket
  • TIA/EIA-568-C Category 5e and tested to 350 MHz
  • NEC CMR, CEC CMR FT4, RoHS compliant
  • 1000 foot spools, Nested boxes, or Cool Spool Boxes


• Specifications:

  Conductor
  • Solid annealed bare copper conductors
  • AWG: 24
  • Diameter: 0.0205" 0.024"

    Electrical:
  • DC Resistance: ≤ 28.6Ω/1000'/93.81Ω/KM
  • Shield DCR: 2.4 Ω/1000'/7.87Ω/KM
  • Capacitance: 17.0pF/FT/56.0pF/M
  • Impedance: 120± 15Ω
  • Velocity of Propagation: 68%
  • Voltage Rating: 300V
  • Pair to Ground Capacitiance Unbalance: ≤ 300pF/100M
  • Maximum Current: 1.6A @ 77°F (25°C)

    Insulation:
  • High density polyethylene
  • Wall-Thickness: 0.0075" (0.19mm)
  • Diameter: 0.035" (0.89mm)

    Color Code:
  • Pair 1: Orange, White/orange stripe
  • Pair 2: Blue, White/blue stripe
  • Pair 3: Green, White/green stripe
  • Pair 4: Brown, White/brown stripe

    Packages:
  • Reel: 1000' (305m)
  • Nested Box: 1000' (305m)
  • Weight: 46lbs per 1000'

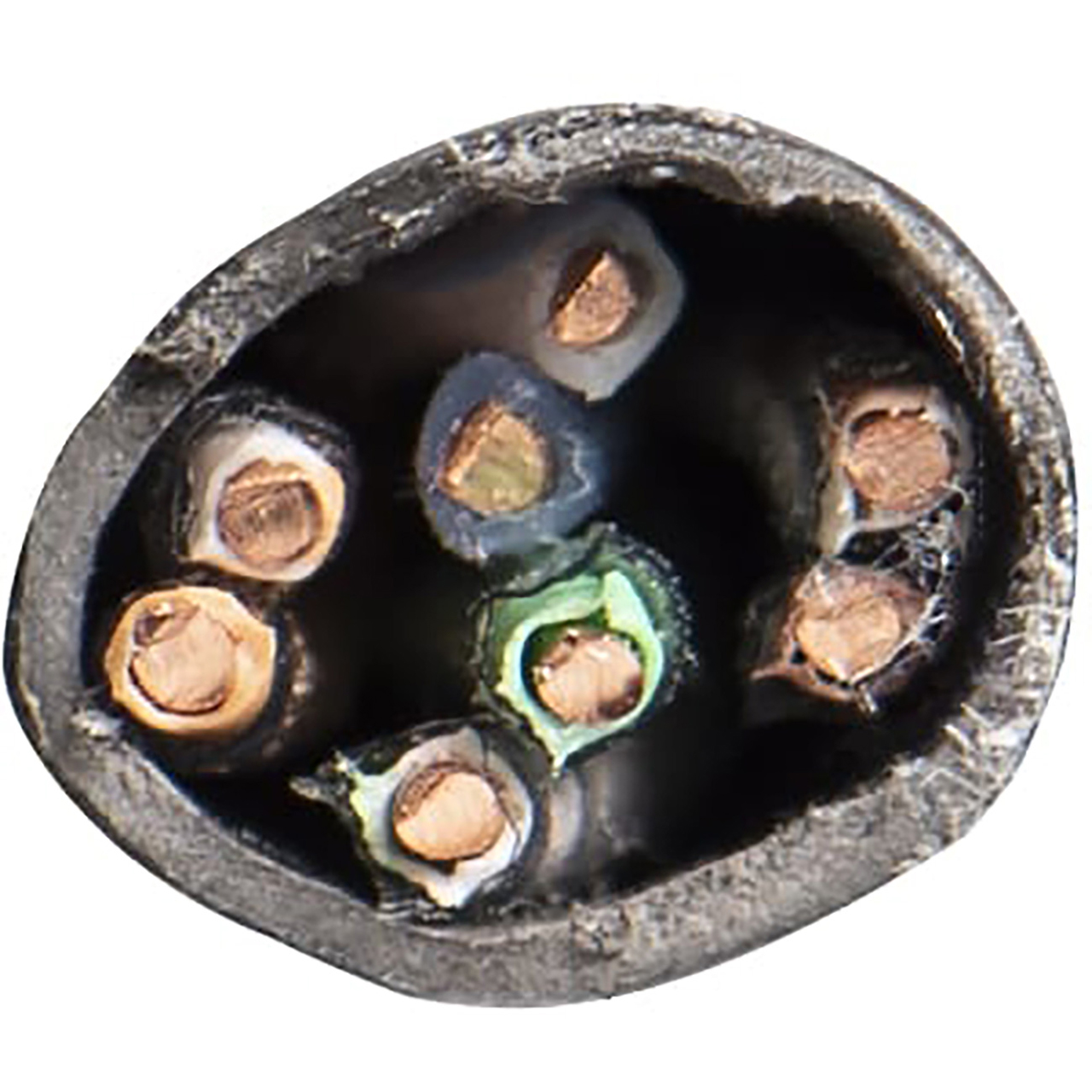

    Assembly:
  • Pairs twisted in varying lay lengths with co-extruded like striped conductor
  • 4 twisted pairs cabled on a common axis

    Installation:
  • Pull Tension: 25lbs (111 N)
  • Unloaded Bend Radius: 2.19" (56mm)
  • Loaded Bend Radius: 4.38" (112mm)

    Construct:
  • Ripcord under jacket

    Applications:
  • Riser LAN systems 10/100/1000BaseT
  • Riser Phone, Voice, Video over IP and security video
  • BALUN support and media infrastructure
  • Infrared, audio

    Shield:
  • N/A

    Performance:
  • LAN: 300'
  • Passive Baluns up to 2500'

    Jacket:
  • Flame rated polyvinyl chloride
  • Color: Black
  • Wall Thickness: 0.025" (0.635mm)
  • Diameter: 0.219" (5.57mm)
  • Final Outside Diameter: 0.219"
