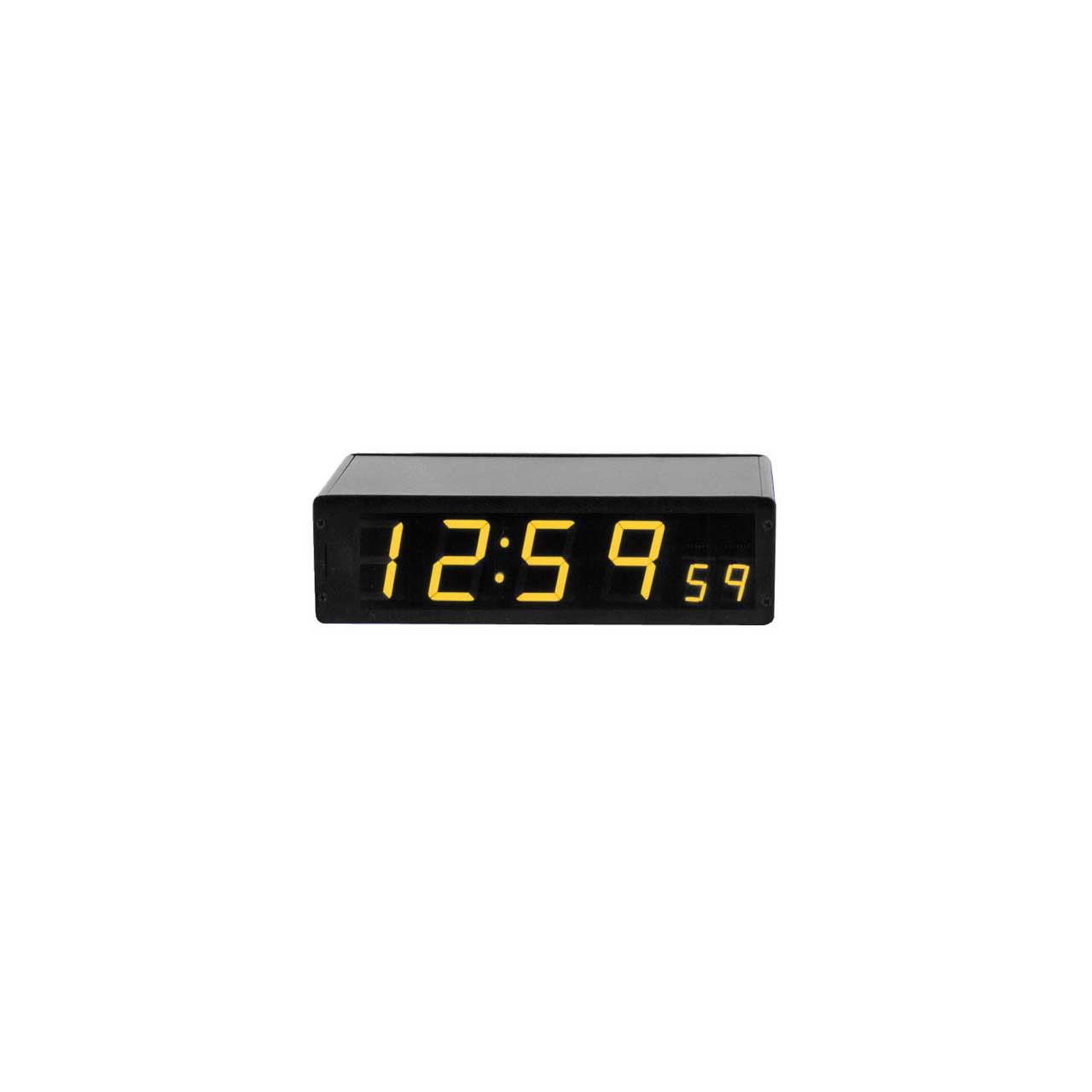

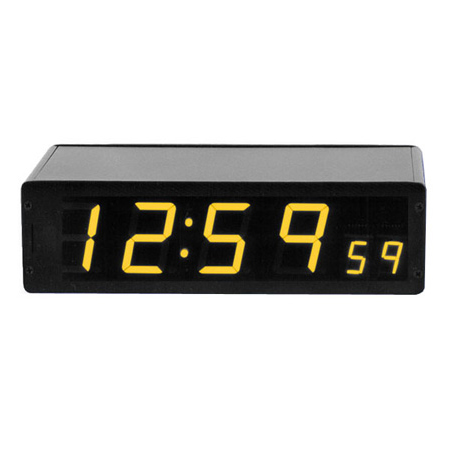

The LX-993U is a Time Code display featuring 2.3" high (Hours & Minutes) and 1" high (Seconds) yellow LED displays. The unit is housed in a rugged, black-textured aluminum desktop enclosure (3.5" H x 12" W x 6" D). The unit accepts, via the rear-mounted BNC connector, either ESE Time CodeT (TC76T, TC89T, or TC90T) or SMPTE/EBU Time Code (Time of Day only). RS-232C ASCII Time Code (format "0", "1" or "A" at 9600 baud) may be input via the rear-mounted 9-pin connector. The LX-993U will automatically determine which code is being received. An internal DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A"). If the Time Zone option is ordered, an internal DIP switch is installed for this function. If receiving ESE Time CodeT from a timer, the unit will display Minutes, Seconds and Tenths of Seconds (if the timer has the Tenths option).
Options List
(TZ) Time Zone Offset via internal DIP Switch
List: $30
(UL) "UL" Approve Wall Mount Power Supply:The unit is supplied with a UL/CSA approved wall mount power supply.
List: $60
(J) 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
List: $30
