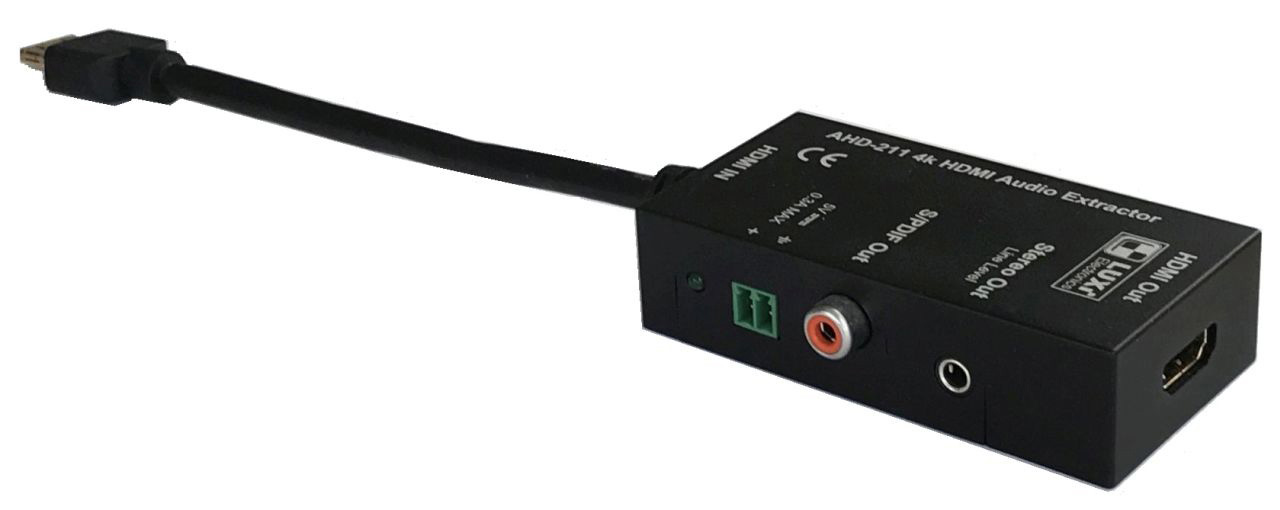

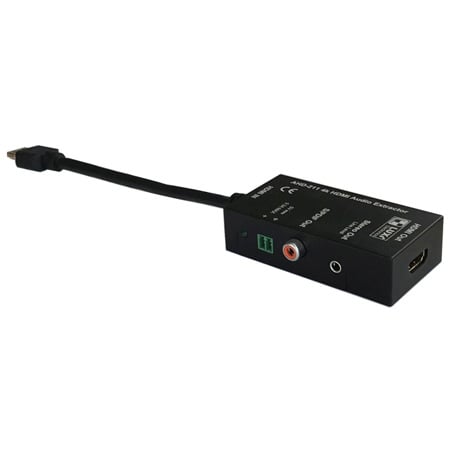

Luxi AHD-211 HDMI Audio Extractor/Communicator 18 Gbps M-F Pigtail T-Grip Slim Plug

ITEM #: LXL-AHD-211 MFG #: AHD-211

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LXL-AHD-211

AHD-211 - Overview

The AHD-211 is an 18 Gbps 4k HDMI Audio Extractor/Communicator that de-embeds audio from HDMI to SPDIF and stereo analog outputs while passing HDMI onto display; also fixes EDID and HDCP related problems; in male to female pigtail, no mounting needed.

How it works!
All 3 audio outputs (HDMI audio, S/PDIF and analog audio) are live simultaneously. The display or the Audio Extractor's EDID would request the source to send 2 channel audio. The Audio Extractor regenerates the same HDCP key of the display. The Audio Extractor works without a display. When the HDMI Return Audio is in effect, the S/PDIF and analog audio outputs will be muted. This is the limitation of the HDMI specs. The product also alters DDC communication timing and corrects HDCP and EDID communication collisions.

This product is designed to be plugged in directly onto the output connectors on the back of the source device. The HDMI output of this product is connected to the display with an HDMI cable. The S/PDIF output is connected to an audio device via a coax RCA cable. The analog audio output is connected to a power amp's line level input via a 3.5 mm mini cable. Note: it CANNOT drive a headphone.

Power options:
This product can draw power from the source device via HDMI cable or from the optional external power supply. To determine if the source device has enough power to power this device, connect this device in
between the source and display devices via a short HDMI cable. If a normal picture appears on screen, then this device can get enough power from the source device and no need for an external power supply. If no normal picture on screen, then it needs an external power
supply. You can buy the optional Luxi power supply (P/N LXL-PWA-052U.)

  • Features:

    • World's smallest 4k 18 Gbps HDMI audio extractor with full HDMI 2.0 compliance
    • It's also a full 4k 18 Gbps Communicator that fixes most EDID and HDCP problems
    • No mounting needed; just plug it in-line between the source device's output and the cable to the sink device
    • Industry's leading performance with super low noise and distortion
    • Two channel analog output on 3.5 mm mini stereo jack and SPDIF output on female RCA connector
    • Luxi patented T-grip TM locking HDMI connector design on both male input and female output ensuring secure connector mating
    • Luxi SuperSlim TM HDMI connector and thin cable fit in the tightest spaces
    • Flexible pigtail and compact design allowing multiple of these products to hang on the back of a matrix switcher

  • Specifications:

    • Enclosure material: Aluminum
    • Enclosure size: 3.2 x 1.7 x 0.8 (81 x 42 x 21 mm)
    • Pigtail length (neck to neck): 4.8 (123 mm)
    • Maximum data rate: 18 Gbps
    • Resolution range: Up to 4k 60 Hz 4:4:4; Full HDMI 2.0 support
    • S/PDIF: 75 ohm, 0.6 Vp-p, 2 channel PCM
    • Mini jack: 50 ohm, 316 mVrms nominal, 2 channel analog max output 1.25 Vrms, THD 0.01%
    • Power: 5 V DC, 0.1 A from source device or external power
    • Safety: CE, CUL, UL (power supply only)
    • EMI/EMC: CE, FCC Class B

  • Item Includes:

    • Audio Extractor
    • Manual
    • Captive screw plugs

  • Warranty:

    • 3 years
