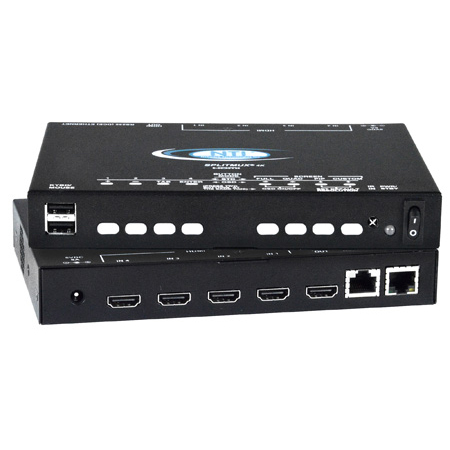

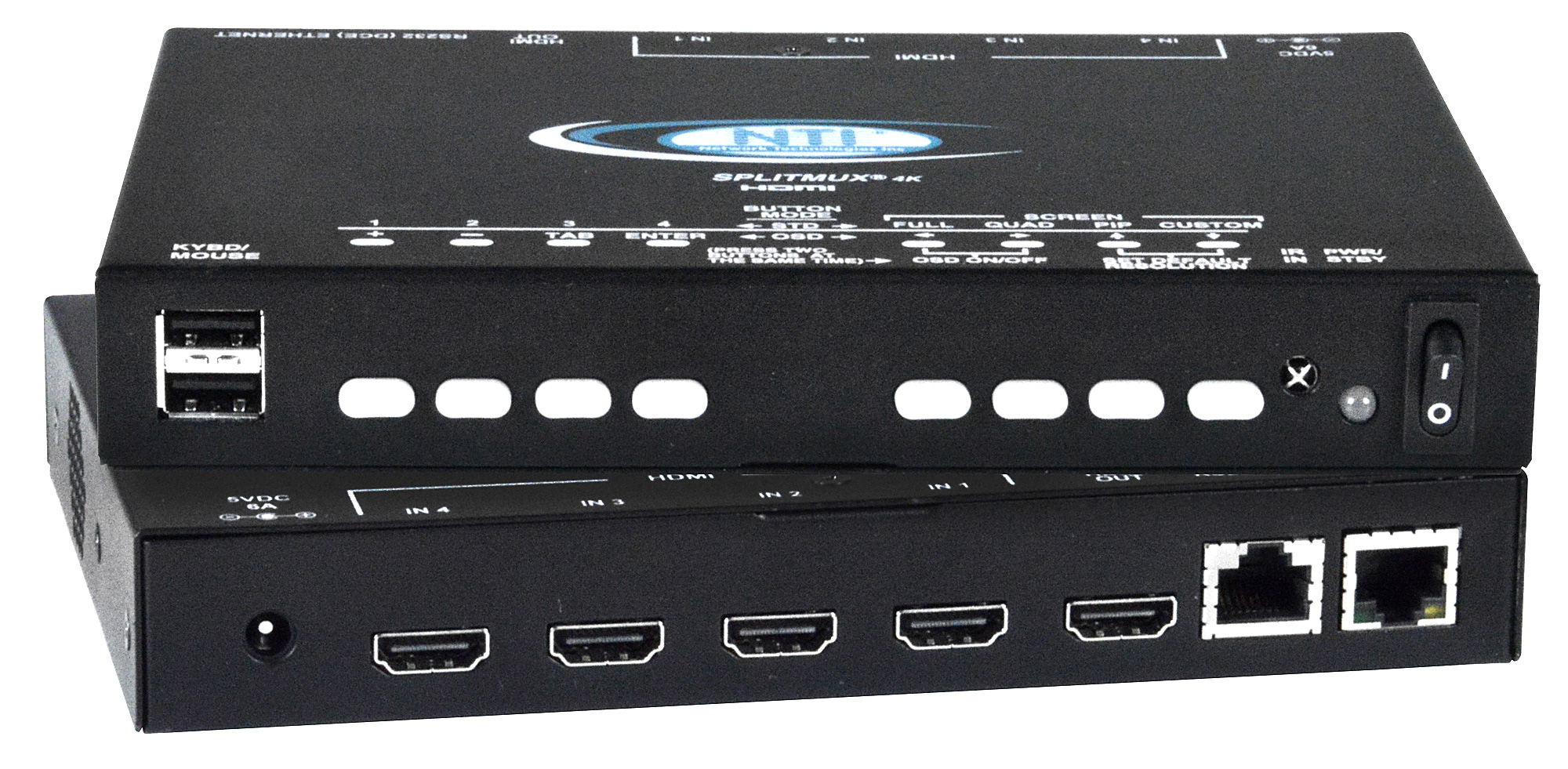

NTI SPLITMUX-4K-4RT 4K HDMI Quad Screen Multiviewer

SPLITMUX-4K-4RT - Overview

• Features:

  • Quad, Picture in Picture, Full Screen, and Custom display modes (Custom Display Mode: the size, position and selection of any or all windows are customizable)
  • 2- and 3-source viewing is possible with this method
  • Maintain input aspect ratio if desired - no stretching necessary
  • Layer display windows and adjust transparency of each video source display


  • Supported resolutions:
  • Inputs: 2K resolution 2048x1080, HDTV resolutions to 1080p and computer resolutions to 1920x1200
  • Output:
  • Quad and Full mode: Ultra-HD 4Kx2K resolutions to 3840x2160 (60Hz) and 4096x2160 (60Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 2560x1600
  • PiP and Custom mode: 2K resolution 2048x1080, HDTV resolutions to 1080p and computer resolutions to 1920x1200
  • Independent video in to video out resolution


  • HDMI features supported:
  • Inputs: 24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr
  • Outputs: 24- and 30-bit sRGB
  • Four-channel mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio
  • Bandwidth up to 594 MHz
  • Inputs: 2.25 Gbps
  • Output: 5.94 Gbps


  • HDCP compliant
  • Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants
  • Zoom, pan, and crop the image from any source to focus on key areas
  • Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active)
  • Multiple audio sources can be simultaneously active in any display mode or preset layout
  • Adjustable audio gain with VU level indicators for each input channel
  • A customized text label can be added for each video window to provide easy input identification (UMD)
  • Control the multiviewer through Ethernet, RS232 serial port, on screen display (OSD), front panel buttons, or IR remote
  • Cascade multiviewers to display video from any number of video sources on one screen
  • Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings
  • Backup and restore multiviewer configurations
  • Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor's EDID
  • Desktop unit


• Specifications:

  • Video Input
  • Four female HDMI connectors.
  • Supports HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Supported video input resolutions:
  • 2K Cinema (2048x1080 @ 60Hz).
  • HDTV resolutions to 1080p.
  • Computer resolutions to 1920x1200.
  • Supports HDCP 1.4.


  • Video Output
  • One female HDMI connector.
  • Supported video output resolutions:
  • Quad and Full mode:
  • Ultra-HD 4Kx2K resolutions (3840x2160 @ 60Hz, 4096x2160 @ 60Hz).
  • 2K Cinema (2048x1080 @ 60Hz).
  • HDTV resolutions to 1080p.
  • Computer resolutions to 2560x1600.
  • PiP and Custom mode:
  • 2K Cinema (2048x1080 @ 60Hz).
  • HDTV resolutions to 1080p.
  • Computer resolutions to 1920x1200.
  • HDMI-embedded audio switching (four-channel stereo mixing).
  • Supports HDCP 2.2.


  • Protocols
  • HTTP, HTTPS.
  • TCP/IP, DHCP, UDP, ARP.
  • IPV4.


  • Power
  • 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
  • Power consumption: 20W.


  • Environmental
  • Operating temperature: 32°F to 122°F (0°C to 50°C).
  • Storage temperature: -22°F to 140°F (-30°C to 60°C).
  • Operating and storage relative humidity: 17 to 90% non-condensing RH.
  • Dimensions WxDxH (in): 7.35x4.98x1.09 (187x126x28 mm).
  • Regulatory Approval: CE, RoHS, TAA compliant.


• Item Includes:

  • 1x SPLITMUX-4K-4RT Multiviewer
  • 1x country-specific power cord
  • 1x DB9 female to RJ45 female adapter
  • 1x 5-ft CAT5 super flat patch cable
  • 1x IR remote control with two AAA batteries
  • 1x CD that contains the manual and the NTI Discovery Tool


• Warranty:

  • 2 years
