Luxi EHD-111 HDMI Extender F-M Pigtail T-grip Slim Plug

ITEM #: LXL-EHD-111 MFG #: EHD-111

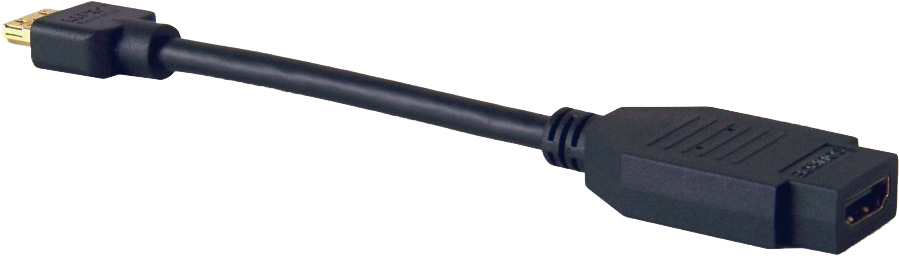

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LXL-EHD-111

EHD-111 - Overview

The EHD-111 is a slick HDMI Extender in female to male pigtail form factor for super easy connections; it amplifies and reshapes HDMI signals at the display end to greatly extend the max usable cable length.

  • Features:

    • World's smallest HDMI Extender
    • HDMI 2.0 32 audio ch., 1536 kHz sampling, dual video stream, multi audio stream, 21:9 aspect, dynamic AV sync, CEC extensions, 3D, HEAC, compliance
    • Virtually doubles the maximum usable HDMI cable length
    • No mounting needed; just plug it in-line between the cable from the source device and the sink device's input
    • No external power supply needed; it draws power from the source device
    • Luxi patented T-grip TM locking HDMI connector design on both male input and female output ensuring secure connector mating
    • Luxi SuperSlim TM HDMI connector and thin cable fit in the tightest spaces
    • Installers can resolve virtually any HDMI system issues by always carrying Luxi HDMI Extenders and Communicators in their tool cases

  • Specifications:

    • Overall female enclosure width: 1.10 (28 mm)
    • Overall female enclosure height: 0.43 (11 mm)
    • Overall female enclosure length: 2.28 (58 mm)
    • Overall product length: 5.9 (150 mm)
    • Supported formats: 3D, 1080p 60 Hz, Deep Color etc.
    • Max data rate: 6.7 Gbps (optimized) 10.2 Gbps
    • Max cable length (depends on source and sink devices): 24 AWG cable: up to 50 m (165') (1080p)
    • 28 AWG cable: up to 36 m (120') (1080p)
    • 30 AWG cable: up to 30 m (100') (1080p)
    • EQ gain: 0 to 40 dB at 5 Gbps (825 MHz signal frequency)

  • Item Includes:

    • Extender

  • Warranty:

    • 3 years
