Luxi DIY-30BS10 10 Pack HDMI 30 AWG DIY Connector for Ribbon Wire and Bundle

ITEM #: LXL-DIY-30BS10 MFG #: DIY-30BS10

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LXL-DIY-30BS10

DIY-30BS10 - Overview

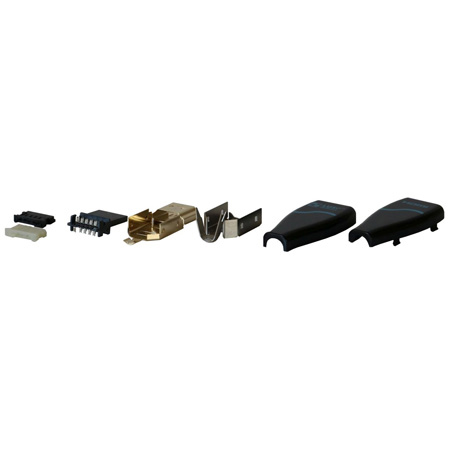

The DIY-30BS10 is a 10 pack HDMI 30 AWG DIY connector for ribbon wire and clamshell bundle. This unit is HDMI 2.0 4k compliant and can be used to terminate Luxi DIY ribbon wires. Luxi patented locking connector for secure mating.

  • Features:

    • Simple and reliable HDMI field termination in 5 minutes
    • HDMI 2.0 4k, 32 audio ch., 1536 kHz sampling, dual video stream, multi audio stream, 21:9 aspect, dynamic AV sync, CEC extensions, 3D, HEAC compliance
    • Internal ribbon design for easy termination; overall round jacket for easy pull
    • Enabling the bulk wires to be pulled thru the wall
    • Enabling the bulk wires to be cut to length
    • Luxi patented HDMI locking connector ensuring secure mating

  • Specifications:

    • Connector type: HDMI Type A
    • HDMI spec compliance: rev 2.0
    • Compatible raw wire: 30 AWG Luxi HDMI ribbon wires
    • Supported formats: 4k, 3D, deep color, 1080p, etc.
    • Max data rate: depends on cable length; 24 Gbps at 2 m
    • Max cable length: 12 m (40') at 1080p typical (30 AWG)
    • Impedance: 100 ohms +4/-2 at the termination point

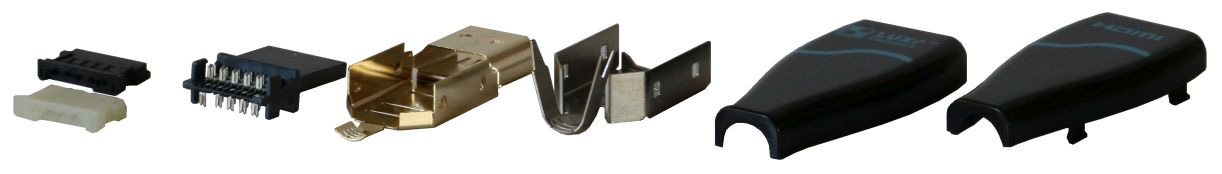

  • Item Includes:

    • Connector core
    • Wire holders
    • Metal shells
    • ABS shells

  • Warranty:

    • 3 years
