Luxi HD-30RB250 HDMI 30 AWG Raw Ribbon Wire - 250 Foot

ITEM #: LXL-HD-30RB250 MFG #: HD-30RB250

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LXL-HD-30RB250

HD-30RB250 - Overview

The HD-30RB250 is a 250' (76 m) HDMI ribbon bulk wire for DIY field termination. This unit is HDMI 2.0 4k compliant, thin and flexible. Can be pulled thru conduit easily and terminate with HDMI DIY connectors in the field. Can by cut to needed length. Spool in a box with usage log.

  • Features:

    • Simple and reliable HDMI field termination in 5 minutes*!
    • HDMI 2.0 4k, 32 audio ch., 1536 kHz sampling, dual video stream, multi audio stream, 21:9 aspect, dynamic AV sync, CEC extensions, 3D, HEAC compliance

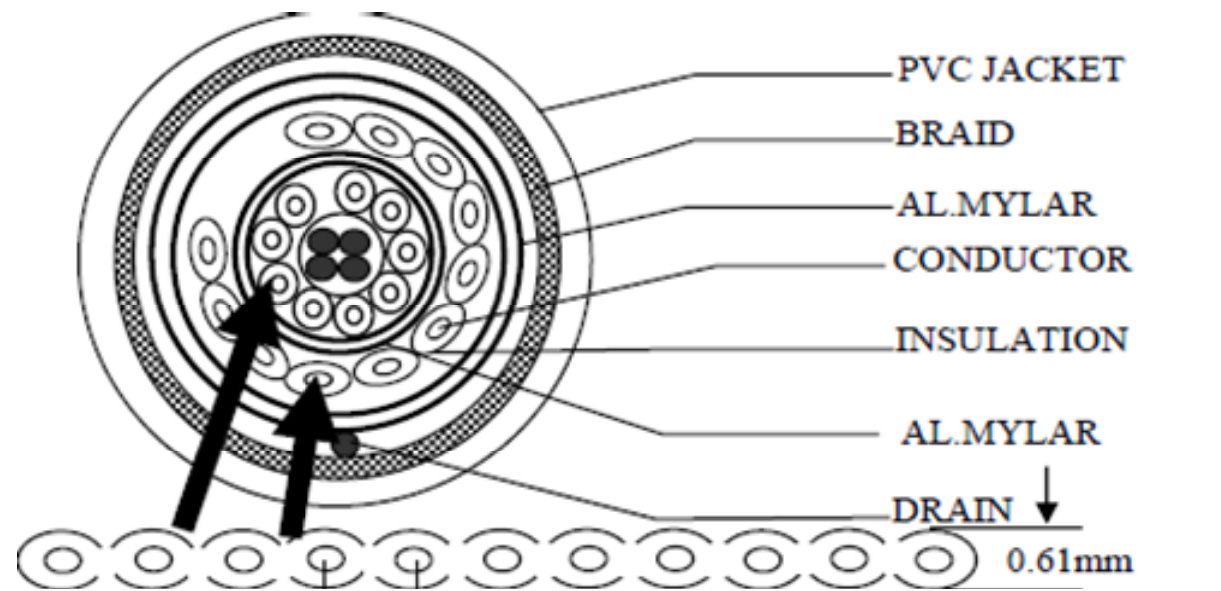

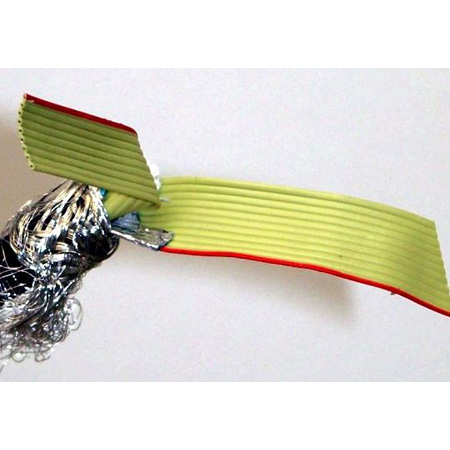

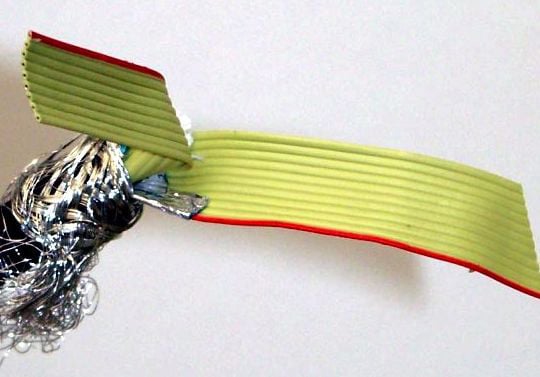

    • Internal ribbon design for easy termination; overall round jacket for easy pull
    • Enabling the bulk wires to be pulled thru the wall
    • Enabling the bulk wires to be cut to length
    • Spool-in-a-box for easy wire handling


  • Specifications:

    • Jacket color and material: black matt PVC
    • Overall jacket diameter: 0.28 (7.0 mm)
    • HDMI specs: rev 1.4 Cat2 High Speed HEAC compatible
    • UL: pass UL-1581 VW-1; equivalent to IEC 60332-2
    • Jacket marking: Luxi High Speed HDMI™ ribbon wire; AWM 20276 E129757-3 80°C 30V VW-1
    • Supported formats: 4k, 3D, deep color, 1080p, etc.
    • Max data rate: depends on cable length; 18 Gbps at 2 m
    • Max cable length: 12 m (40') at 1080p typical; up to 28 m (93') with Luxi HDMI Extender


  • Item Includes:

    • Bulk wires
    • Spool
    • Box


  • Warranty:

    • 3 years
