Magenta Research MG-AOC-882-10 DisplayPort 1.4 Active Plenum Optical Cable - 33 Foot (10m)

ITEM #: MGE-MG-AOC882-10 MFG #: MG-AOC-882-10

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Magenta Research
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$550.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MG-AOC-882-10 - Overview

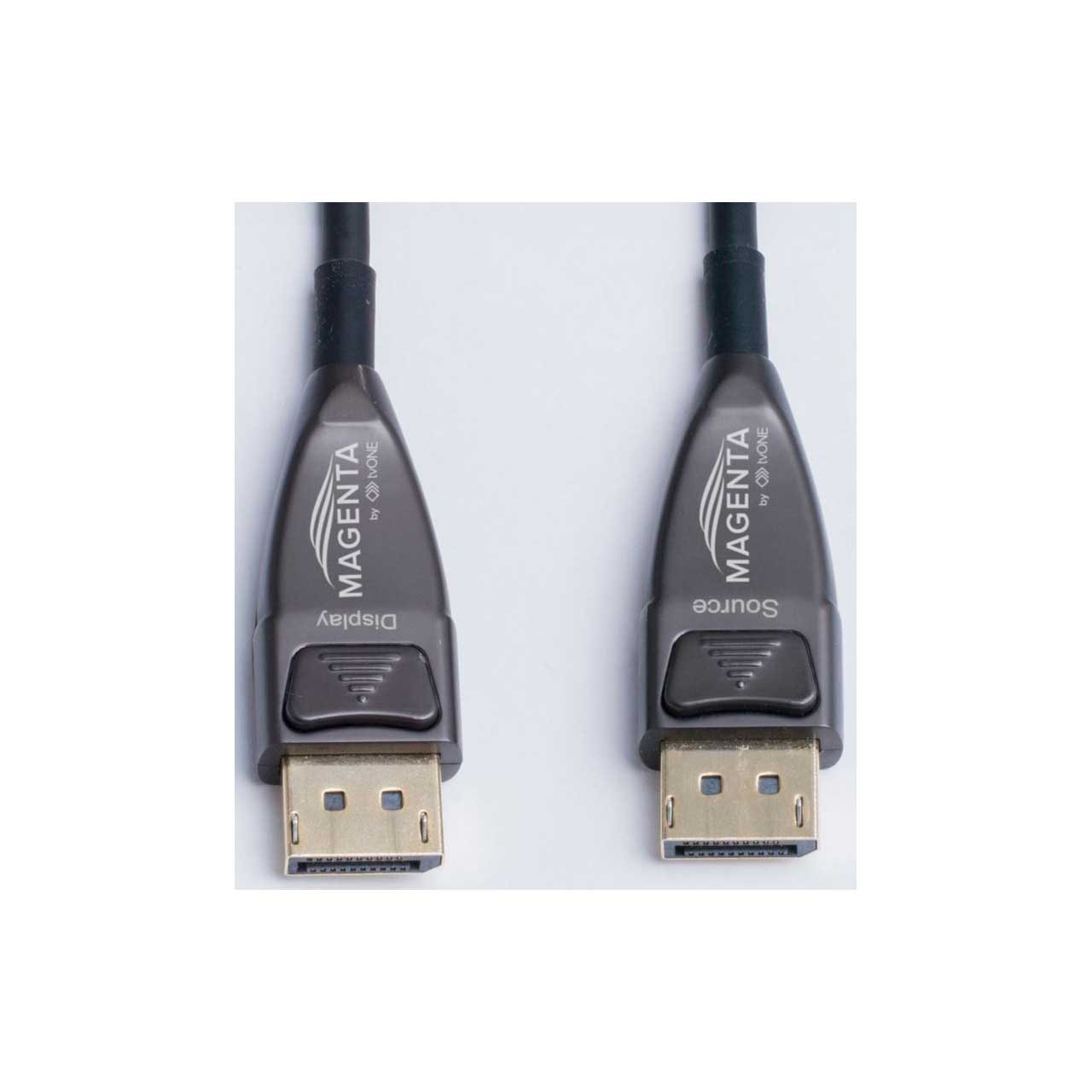

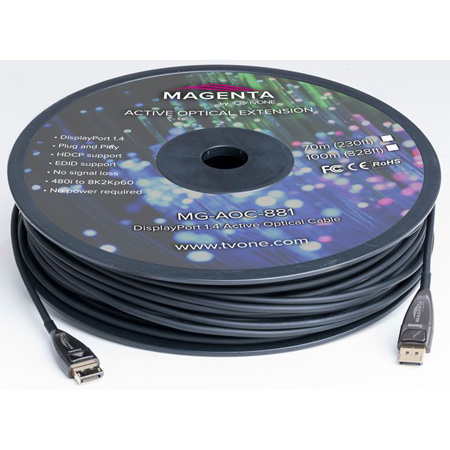

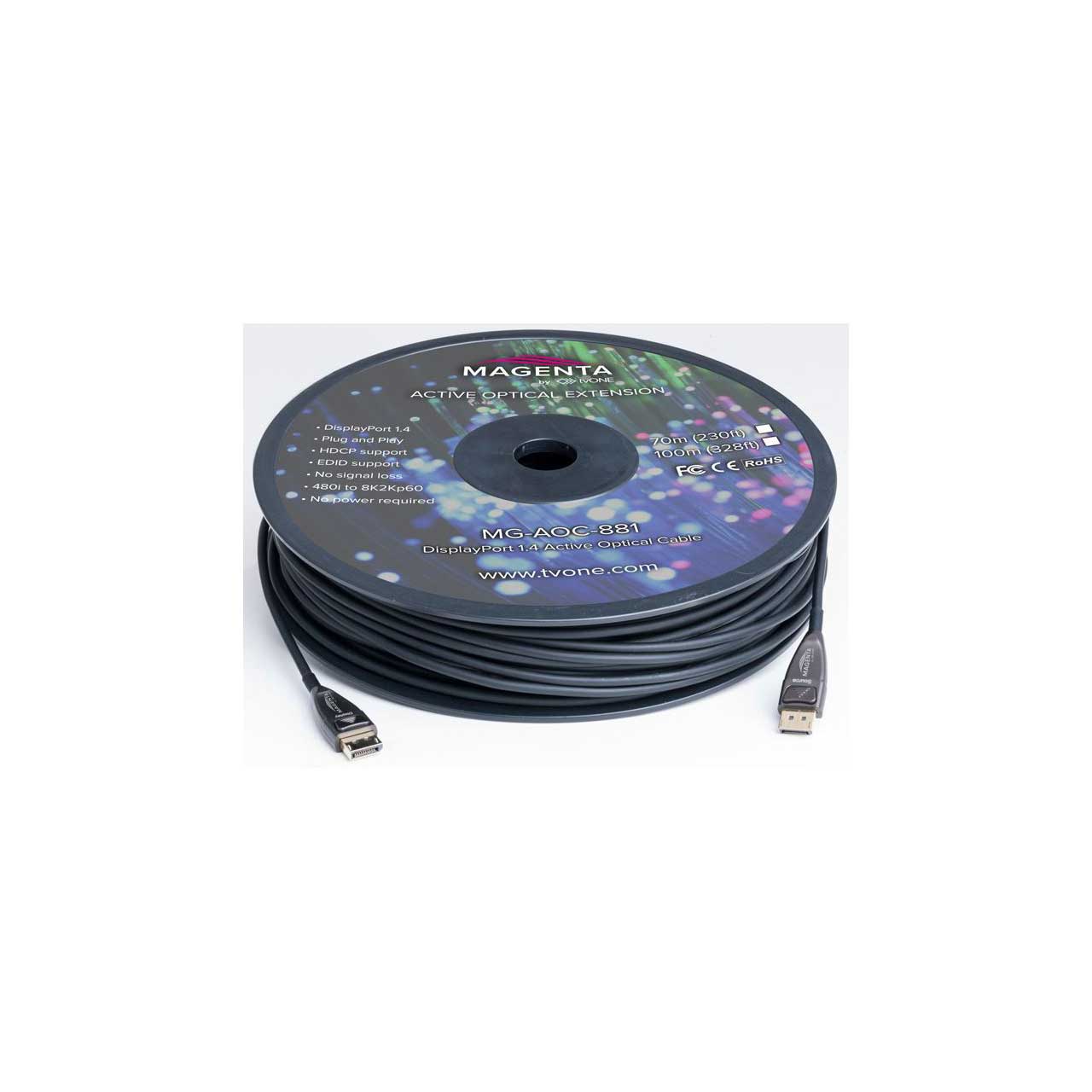

The Magenta MG-AOC-882 Active Optical Cable provides a simple yet powerful solution for extending high resolution over long distances. This plug and play DisplayPort 1.4 cable supports up to 8K60 4:4:4 with no compression or latency up to 328ft (100m) and without the need for external power. The MG-AOC-88x is available in UL rated Plenum (CMP), providing the ultimate flexibility.

  • Features:

    • Up to 328ft (100m)
    • No external power required
    • Plug and Play
    • DisplayPort 1.4
    • HDCP support
    • EDID support
    • No signal loss
    • 8K2Kp60 down to 480i supported
    • UL rated Plenum (CMP) option available


  • Specifications:

    • Standards Compliance: DisplayPort 1.4/HBR3, HDCP 1.4/2.2 Fully Supports bi-directional EDID and HDCP communication
    • Video Bandwidth: Supports up to 8.1Gbps per lane, 32Gbps Total
    • Max Color Depth: 48bits
    • Maximum Resolution & Distance: 8K @ 60Hz
    • O/E Converter:
      4x 850 nm Multi-mode VCSELs
      4x GaAs PIN Photo Diodes
    • Connector Type: 20 pin DisplayPort version 1.4
    • Cable Type Hybrid: cable, 4x fiber and 8x copper wire
    • Cable Length: 10m, 15m, 20m, 25m, 30m, 40m, 50m, 60m, 70m, 100m (with +/-30cm tolerance)
    • Cable Outer Diameter: 4.8mm
    • Jacket Outer Material: Plenum
    • Cable Color: Black
    • Maximum Tensile Load: 30.5kg
    • Minimum Bend Radius: 48mm
    • Power Consumption: <0.5 watt each end
    • Power Supply: No external power required, powered from DisplayPort source device
