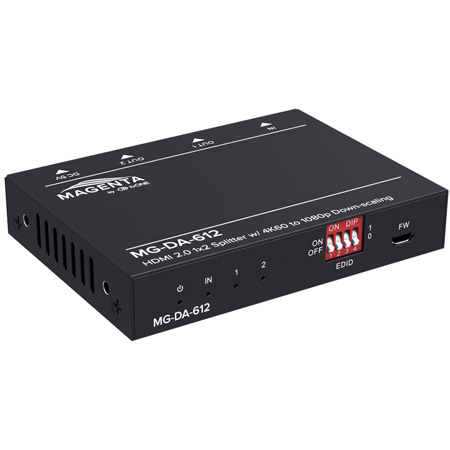

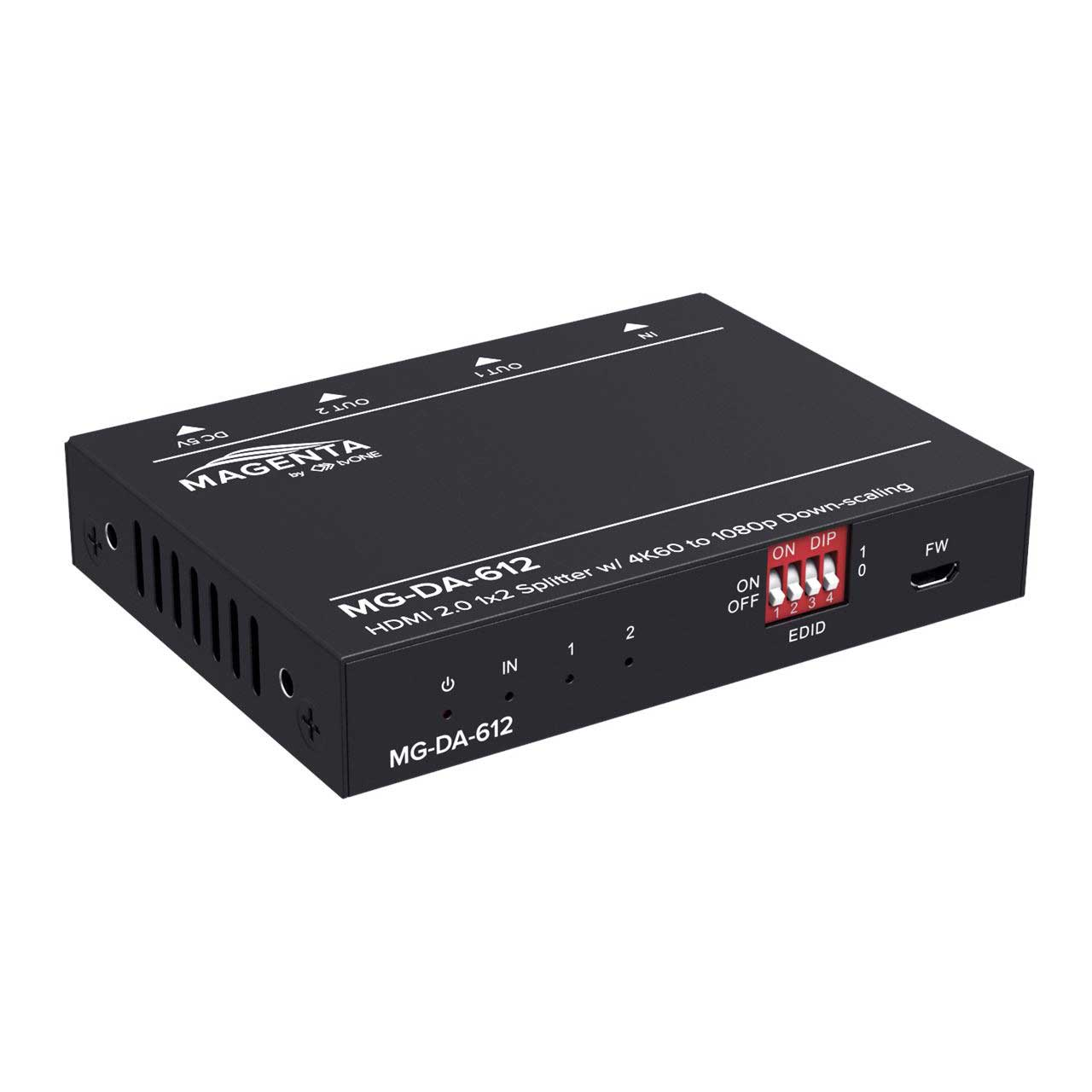

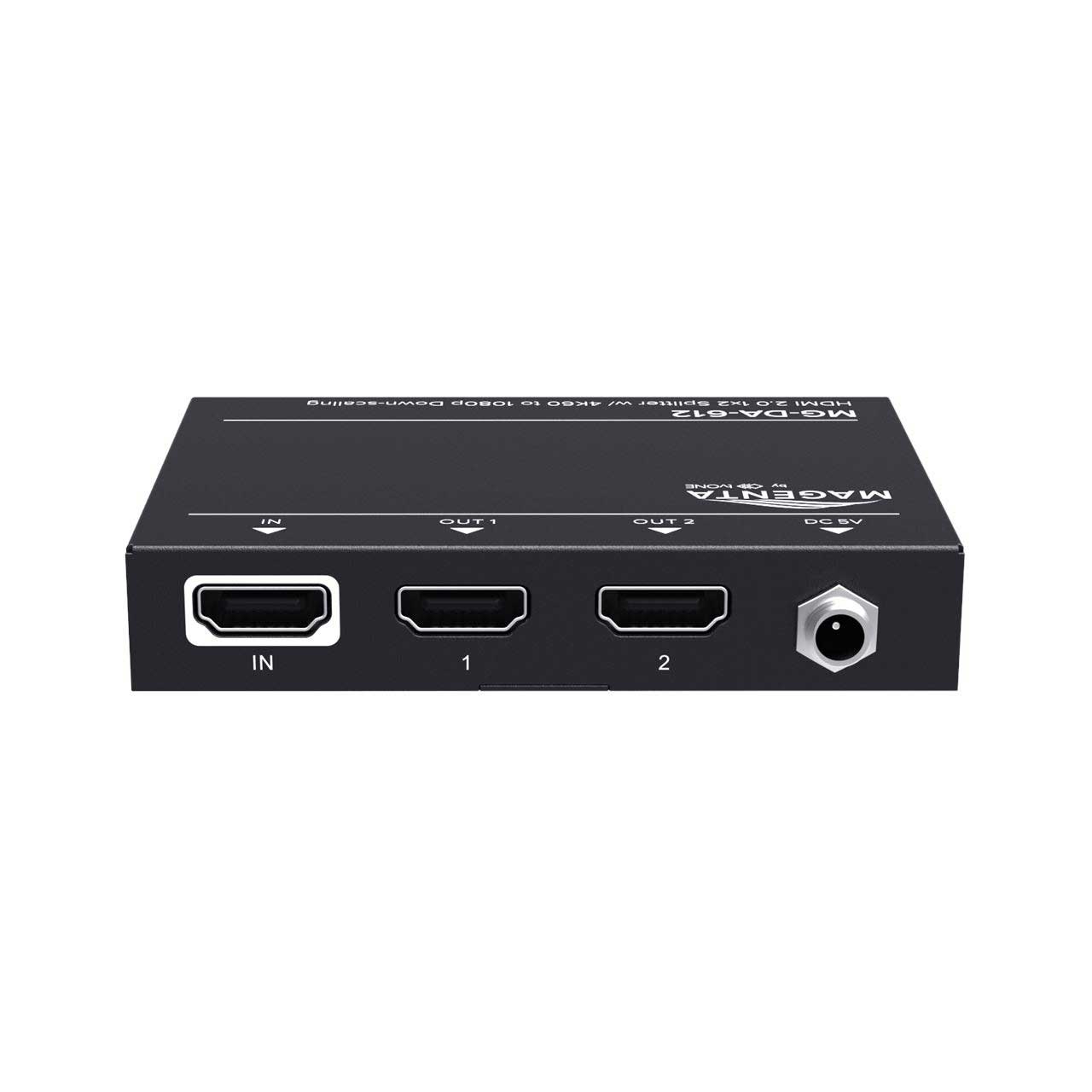

Magenta Research MG-DA-612 1x2 4K60 HDMI 2.0 Ultra Slim Splitter with HDCP 2.2 and Down Scaling

MG-DA-612 - Overview

• Features:

  • Supports HDMI 2.0 and up to 4K@60Hz 4:4:4.
  • HDCP 2.2
  • HDR
  • 3D pass through
  • 18Gbps high bandwidth
  • Ultra Slim less than 18mm in height
  • Advanced EDID management
  • Supports CEC pass through


• Specifications:

  • Video Input
  • Input (1) HDMI
  • Input Connector (1) Type-A female HDMI
  • HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
  • HDMI Standard 2.0a
  • HDCP Version 2.2, 1.4 compliant
  • CEC Supported

    Video Output
  • (2) HDMI
  • Output Connector Type-A female HDMI
  • HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
  • HDMI 2.0
  • HDCP 2.2, 1.4 compliant
  • CEC Supported

    Control
  • Control Port: (1) EDID 4-pin DIP switch, (1) Micro-USB port

    General
  • Bandwidth: 18Gbps
  • Input Connector: 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m,1080P ≤ 20m
  • Operation Temperature -10°C - +55°C
  • Storage Temperature -25°C - +70°C
  • Relative Humility 10%-90%
  • Power Supply: Input:100V~240V AC, Output: 5V DC 1A
  • Power Consumption: 1.5W (Max)
  • Replacement Power Supply: PS-05-10-LK
  • Dimension (W x H x D): 3.77 inch x 0.69 inch x 2.77 inch (96.0mm x 17.6mm x 70.4mm)
  • Net Weight: 0.4 lbs (185g)


• Item Includes:

  • 1x HDMI 2.0 Splitter
  • 2x Mounting Ears with 4 Screws
  • 4x Plastic Cushions
  • 1x Power Adapter
  • 1x User guide
  • 1x Safety, liability, and warranty guide


• Warranty:

  • 5 Years
