Miranda HDA-1851-3RU HD/SD/ASI DA with EQ (including 3RU adaptor)

ITEM #: MIR-HDA-1851-3RU MFG #: HDA-1851-3RU

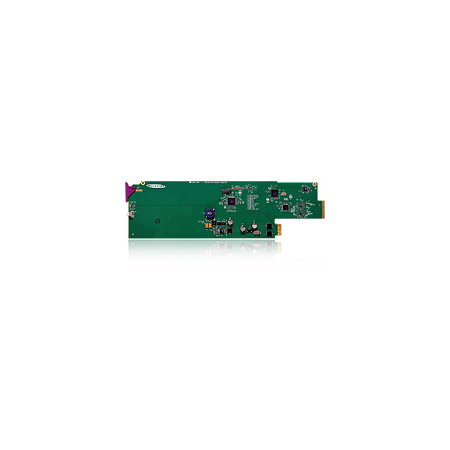

Primary Image
Miranda Technologies
Free Shipping with $49 Minimum Order

List Price:

$1,139.60

Our Price:

$1,083.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HDA-1851-3RU - Overview

The HDA-1851 is an HD/SD/ASI DA with up to 9 outputs and automatic equalization for up to 140 meters (Belden 1694A). The HDA-1851 DA supports both HD-SDI (SMPTE-292M) and SDI (SMPTE-259M-C). It also offers signal presence detection and remote reporting. The card's multiformat features make it ideal for applications where HD and SD signals may co-exist.

  • Features:

    • HD-SDI input
    • 9 HD-SDI outputs
    • Supports HD-SDI (1.485, 1.485/1.001 Gbps)
    • Supports SD-SDI 270 Mbps
    • 140 m automatic cable equalization
    • Signal presence detection with remote reporting


  • Specifications:

    • SMPTE 292M (1.485, 1.485/1.001 Gbps)
    • SMPTE 259M-C (270 Mbps)
    • EN50 083-9 DVB-ASI (270 Mbps)
    • SMPTE 310M/DVB-SSI
    • Cable length:HD: 140 m
    • SD: 300 m
    • Return loss:>15 dB up to 1.5 GHz
    • OUTPUT
    • Signal:SMPTE 292M (1.485, 1.485/1.001 Gbps)
    • SMPTE 259M-C (270 Mbps)
    • Return loss:>15 dB up to 1.5 GHz
    • Jitter:<0.2 UI p-p (wideband)
    • PROCESSING PERFORMANCE
    • Signal path:10 bits
    • Latency:3 ns
    • ELECTRICAL
    • Power:2 W
