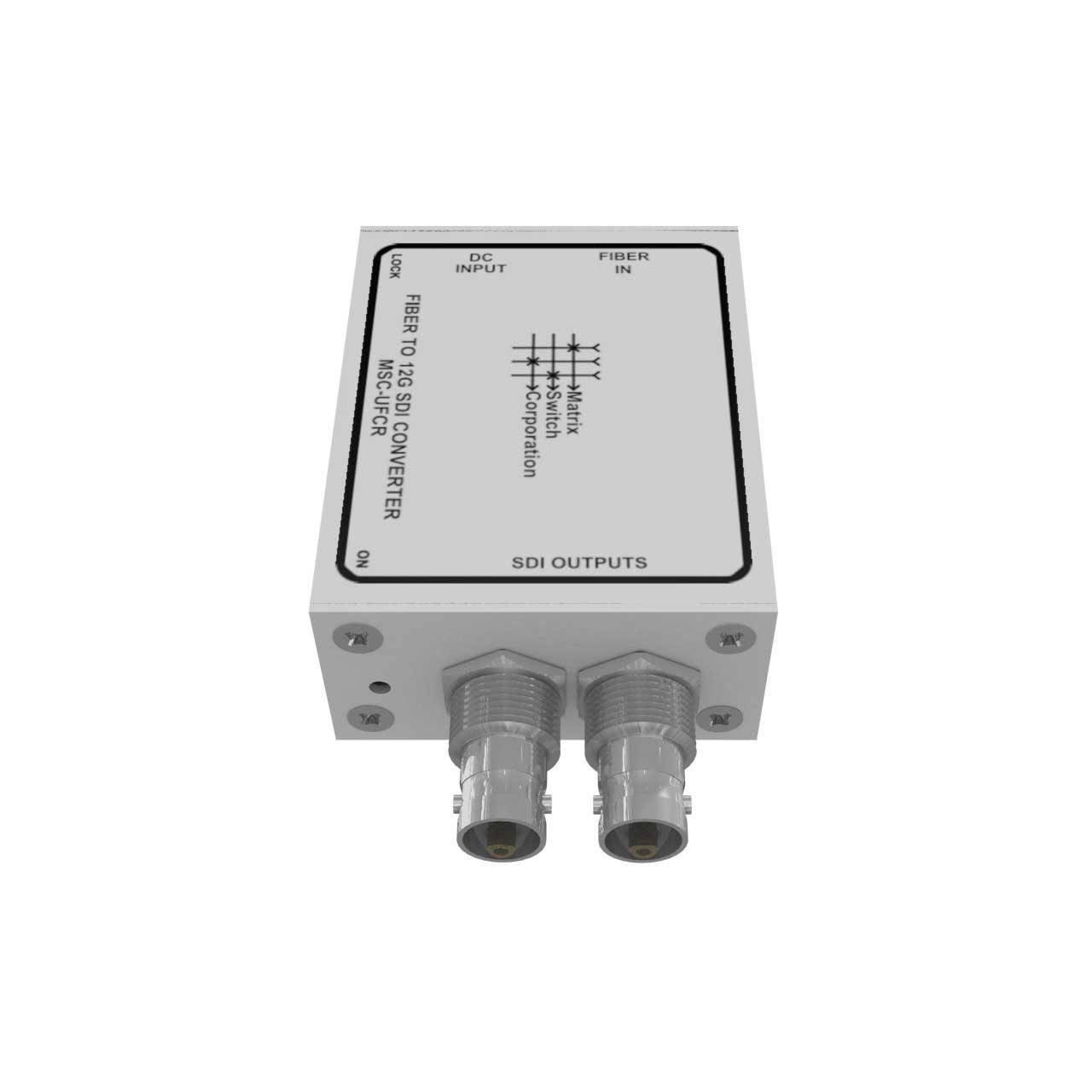

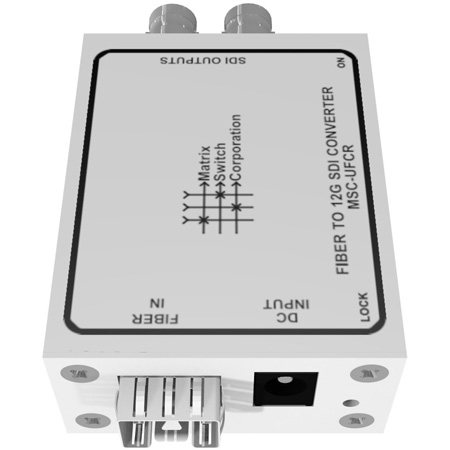

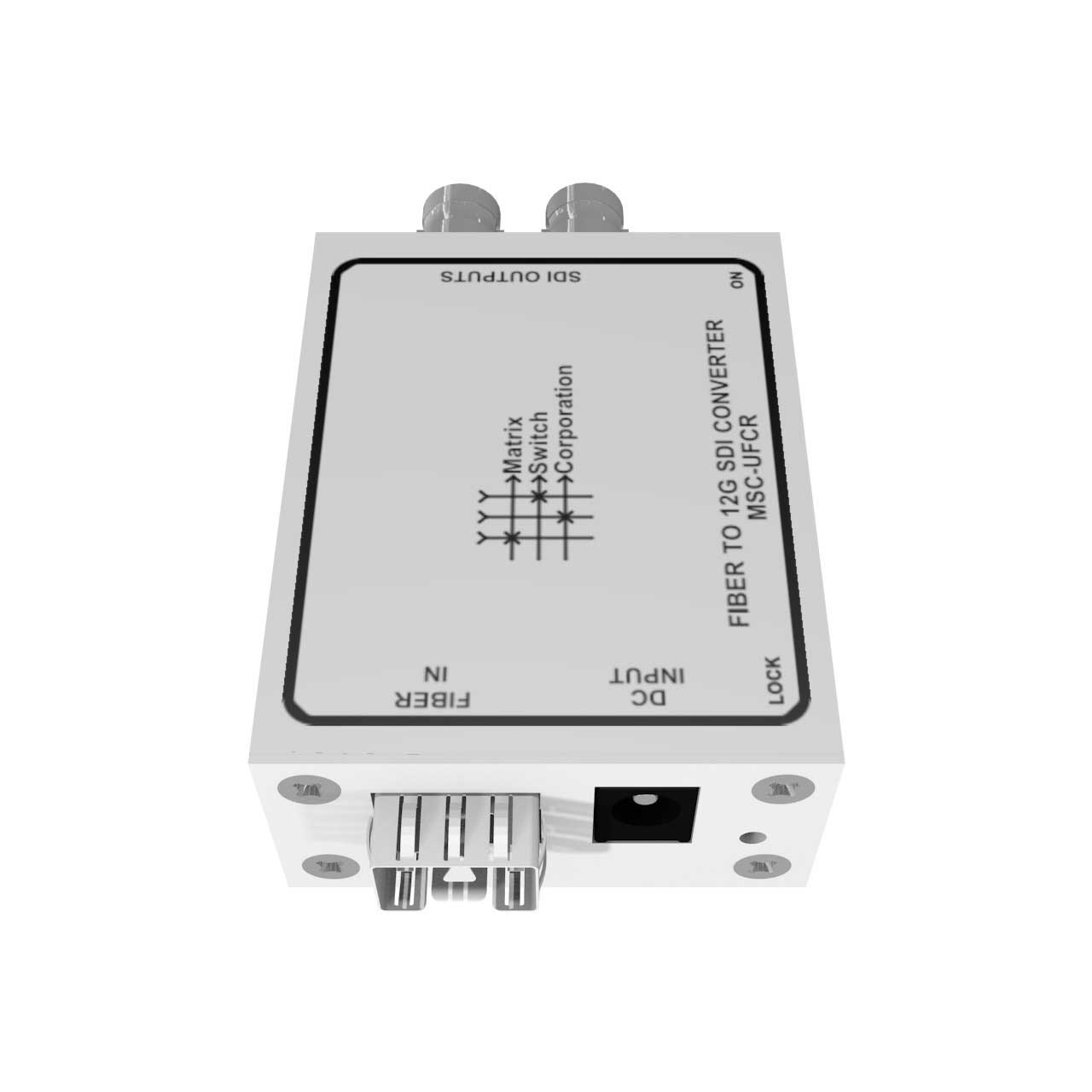

Matrix Switch MSC-UFCR 1 SFP Input 1 BNC Output 12G-SDI Converter (Fiber/Other SFP Modules not included)

MSC-UFCR - Overview

• Features:

  • Dual BNCs per output often eliminates the need for additional distribution amplifiers
  • Re-clocks standard SDI rates 12G/6G/3G/HD/SD (11.88 / 5.94 / 2.97 / 1.485 / 0.270 Gbit/s)
  • Auto bypass of non-standard SDI rates from 20 Mbit/s to 12 Gbit/s
  • Passes SDI embedded audio and ancillary data
  • Compact enclosure design with a depth of only 2 inches
  • Less than 1 pound
  • External DC power supply
  • Complies with all relevant FCC, U/L, CE, and RoHS requirements
  • Backed by a full 2 year manufacturer parts and labor warranty


• Specifications:

  • General
  • Inputs: 1
  • Outputs: 1
  • Size: 2.50" x 1" x 2"
  • Weight: 1.0 lbs
  • USA List Price: $125
  • Power: 5 VDC 4A Adapter
  • Power Connector: 5.5mm OD 2.5mm ID coaxial
  • Made in: USA
  • MTBF: 50,000+ Hours
  • MTTR: < 48 Hours

    SDI Outputs
  • Connector Type: BNC
  • Data Rates: 19 Mbit/s through 12.0 Gbit/s
  • Re-clocking Data Rates: 11.88 Gbit/s, 5.94 Gbit/s, 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
  • Output Return Loss: > 15dB @ HD, > 12dB @ 3G
  • Output Impedance: 75 Ohms +/- 1%
  • Output Level: 800 mV P-P +/- 5%
  • Output Jitter: < 0.2 UI

    SFP Inputs
  • Connector Type: SFP (MSA Standard Compatible)
  • Data Rates: 19 Mbit/s through 12.0 Gbit/s
  • 12G Fiber Optic SFP Input Modules
  • Product: MSC-SFPRX-F10KM (sold separately)
  • Connector Type: LC
  • Fiber Type: Single Mode Fiber (SMF)
  • Wavelength: 1200~1610nm (1310nm nominal)
  • Max Distance: 10km
  • Data Rates: 50 Mbit/s to 12 Gbit/s
  • Standard: SFP MSA Compliant
  • Pathological Signals: Supports Pathological Signals for 12G/6G/3G/HD/SD-SDI
  • SMPTE Standard: SMPTE 297-2006 Compatible
  • Digital Diagnostics: MSA DDM Compatible Interface

    SDI Standards
  • SD Formats: 625/25 PAL and 525/29.97 NTSC
  • HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  • 3G Formats: 1080p50, 1080p59.94, 1080p60
  • 2K Formats: 2048 x 1556/23.98/24/25
  • UHD Formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Formats: 2160p23.98, 2160p24, 2160p25
  • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 372M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
  • Video Sampling: 4:2:2 and 4:4:4
  • Audio Sampling: 24 bit @ 48 KHz
  • Color Precision: 4:2:2 and 4:4:4 10 bit
  • Color Space: YUV or RGB
  • Metadata Support: Ancillary data as defined by SMPTE 352M


• Warranty:

  • 2 year manufacturer parts and labor warranty
