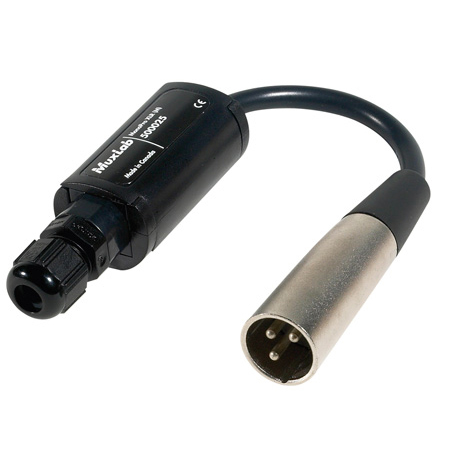

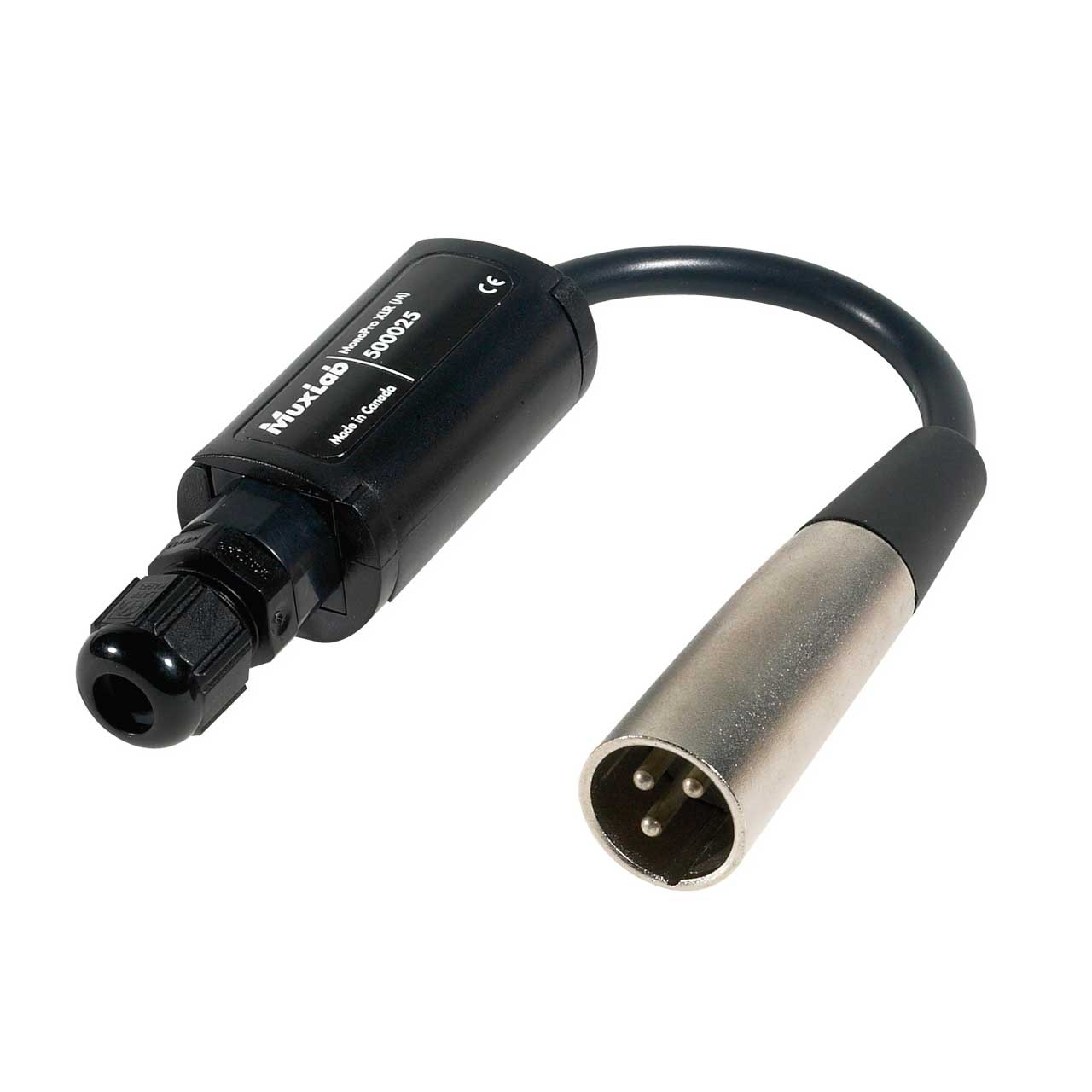

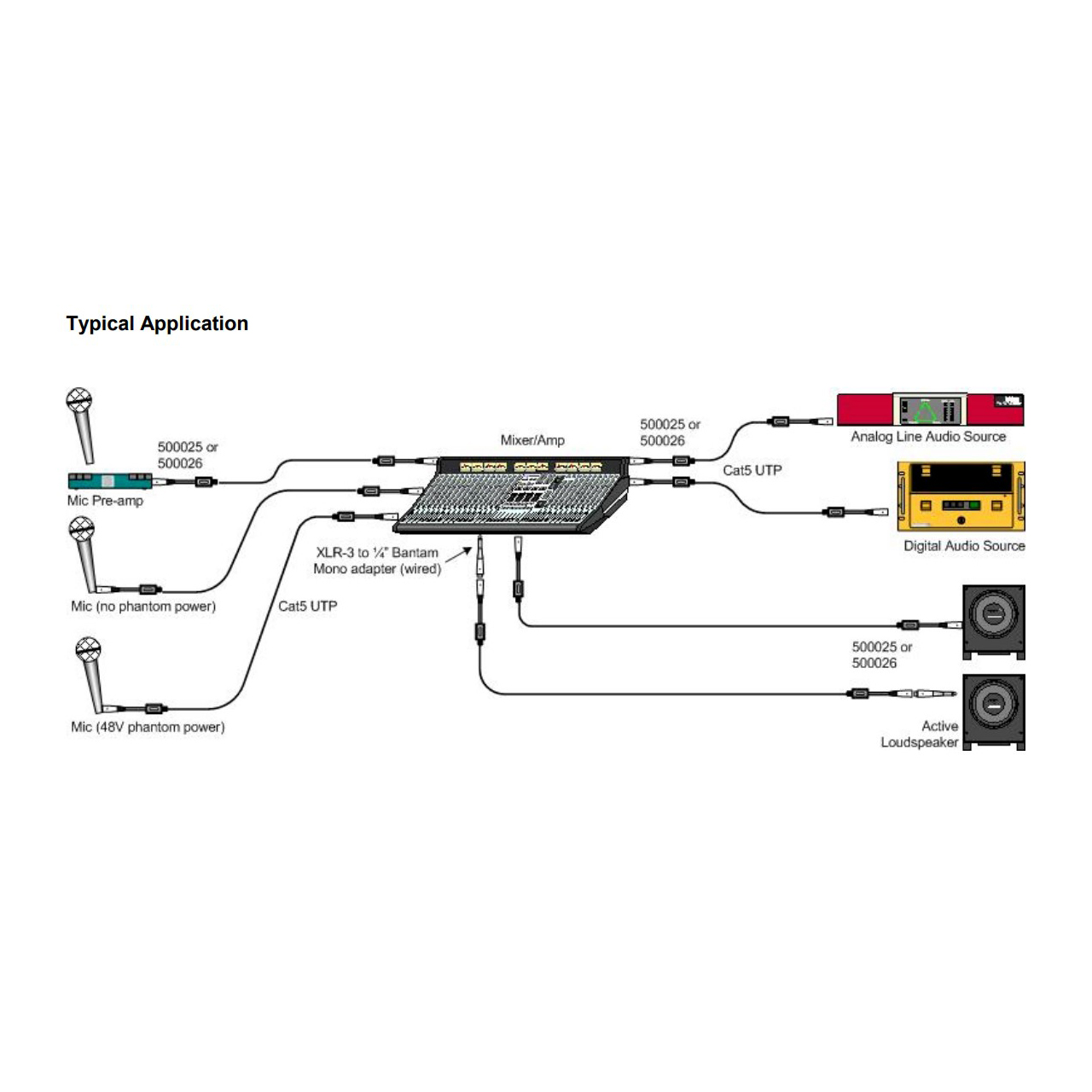

MuxLab 500025 MonoPro XLR Male to Cat5

500025 - Overview

• Features:

  • Cost efficient cabling via UTP
  • Rugged cable strain relief
  • Line analog audio up to 5,000 ft (1.5km) via Cat 5
  • Digital audio up to 1,400 ft (426m) via Cat5
  • Wires terminate inside product
  • Locking XLR3 connector
  • Optional wire terminal for ground/shield


• Specifications:

  • Analog Audio
  • Environment: Balanced line level or microphone analog audio
  • Signal Amplitude: 2.3 Vp-p
  • Polarity Sensitivity: Phase polarity sensitive
  • Impedance:
    - Output: 600Ω
    - Input: 600Ω - 20kΩ
  • Signal Type: Professional balanced analog line level or microphone
  • Maximum Distance via Cat5e/6 UTP:
    - Line Level: 5,000 ft (1.5 km)
    - Mic Level: 3,000 ft (914m)

    Digital Audio
  • Environment: Balanced line level or microphone digital audio
  • Signal Amplitude: 2-7 Vp-p
  • Polarity Sensitivity: Not polarity sensitive
  • Impedance: 110Ω
  • Signal Type: Professional balanced digital line level
  • Maximum Distance via Cat5e/6 UTP:
    - 32 kHz: 1,400ft (426m)
    - 44.1 kHz: 1,300ft (396m)
    - 48 kHz: 1,250ft (381m)
    - 96 kHz: unspecified


  • Frequency Response: DC to 6 MHz
  • Insertion Loss (per balun pair): Less than 1 dB /pair from DC to 6 MHz
  • Return Loss: Less than 15dB from DC to 6 MHz
  • Common Mode Rejection (CMMR): Greater than 45 dB
  • Cable - UTP:
    - 24 gauge or lower solid copper twisted pair wire
    - Impedance: 100 Ω at 1 MHz
    - Maximum capacitance: 20 pf/foot
    - Attenuation: 6.6 dB/1000 ft at 1 MHz
  • Connectors:
    - XLR3-M or XLR3-F depending on model
    - 2x screw terminals for signal
    - 1x screw terminal for optional shield (ground)
  • Pin Configuration (XLR3 | Signal | UTP):
    - Pin 1 | Shield | Gnd (optional)
    - Pin 2 | Positive | Tip [T]
    - Pin 3 | Return | Ring [R]
  • Cable Strain Relief: Threaded and tapered cable grip mechanism.
  • Temperature:
    - Operating: 32°F - 131°F (0°C - 55°C)
    - Storage: -4°F - 185°F (-20°C - 85°C)
    - Humidity: 95% non-condensing
  • Enclosure: Fire retardant plastic. UL94-V0
  • Dimensions: 1.875" x 1" diam (4.76 cm x 2.54 cm diam) plus 5" (12.7cm) XLR3 lead
  • Weight: 2.64 oz (75 g)


• Warranty:

  • Lifetime Warranty


• GTIN:

  0627699000250
