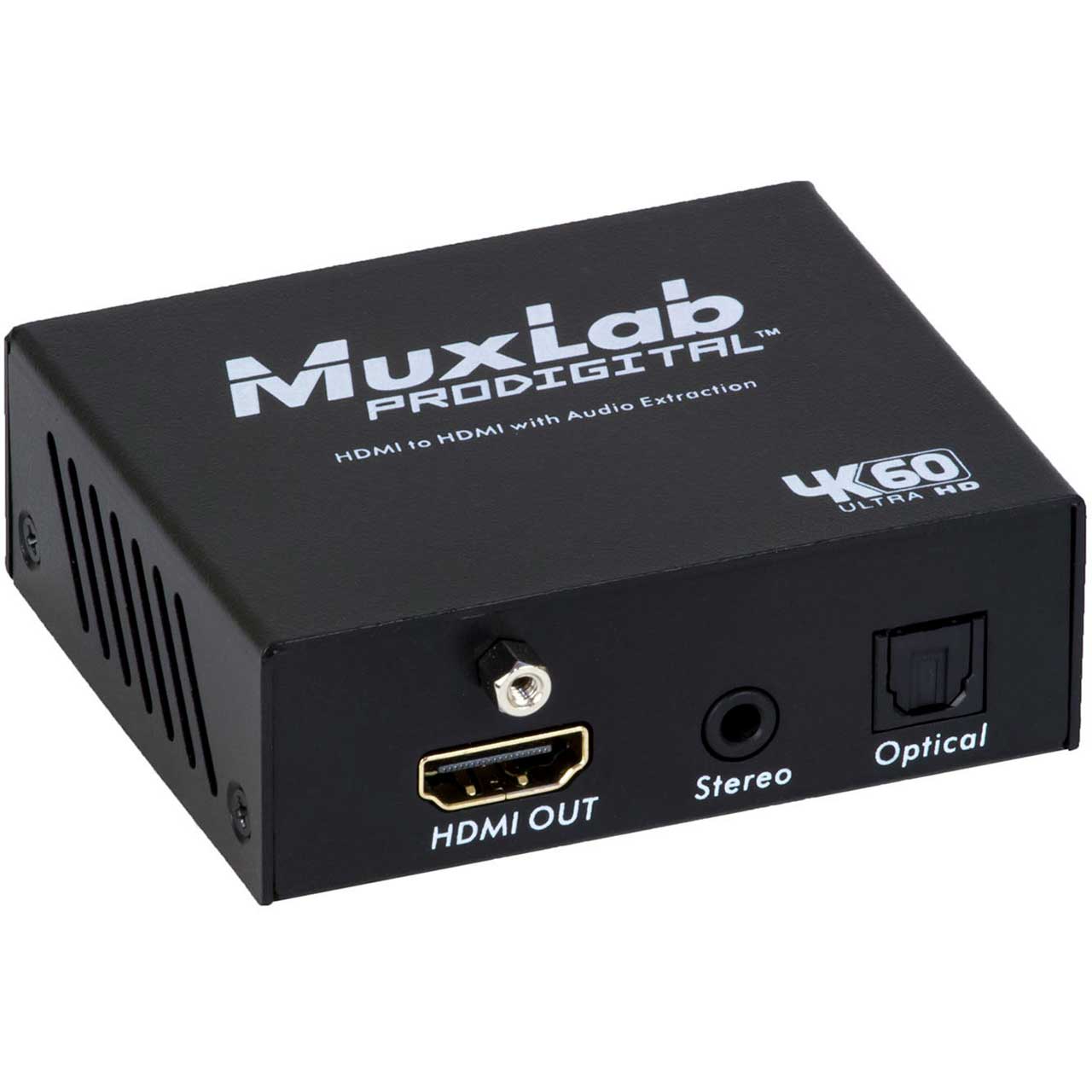

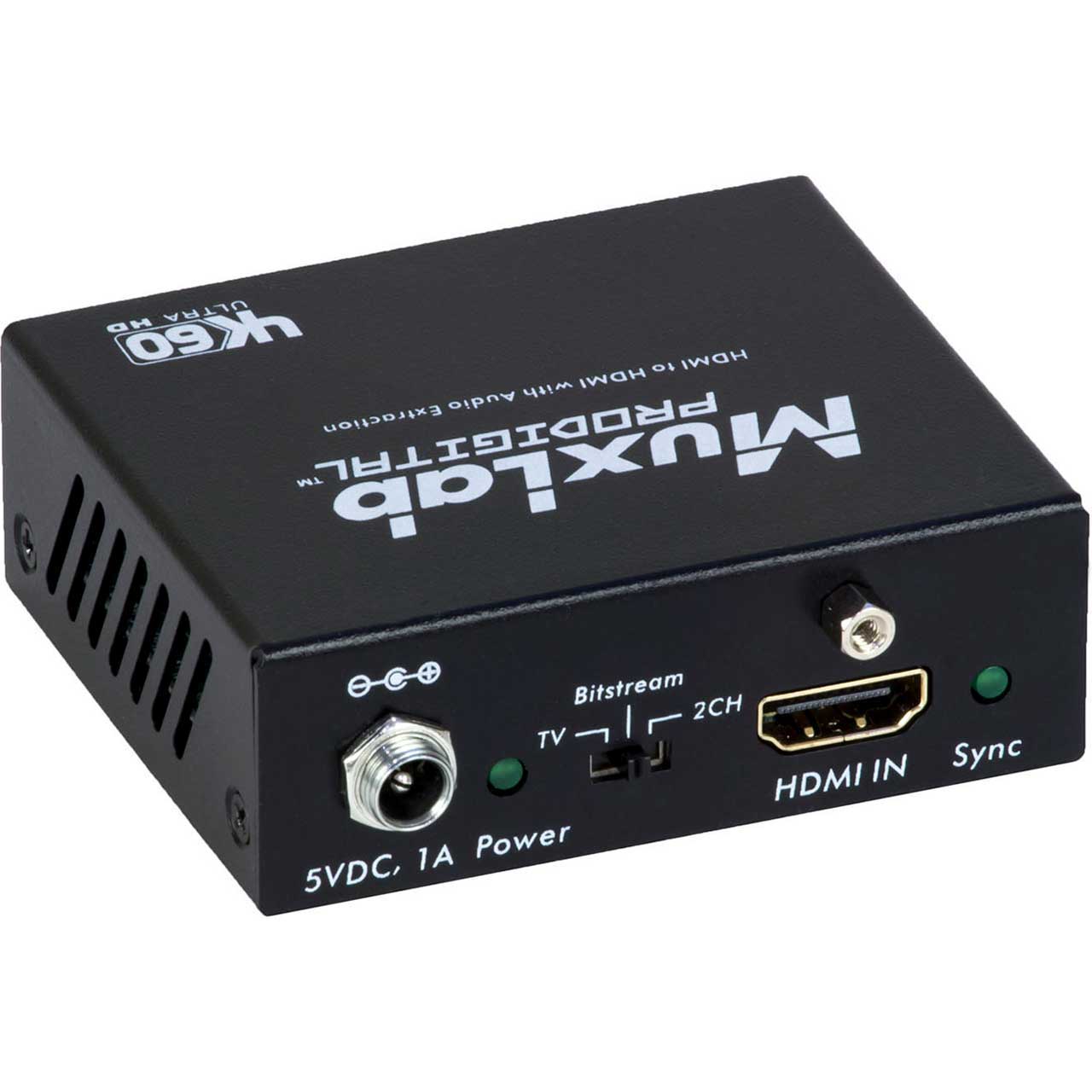

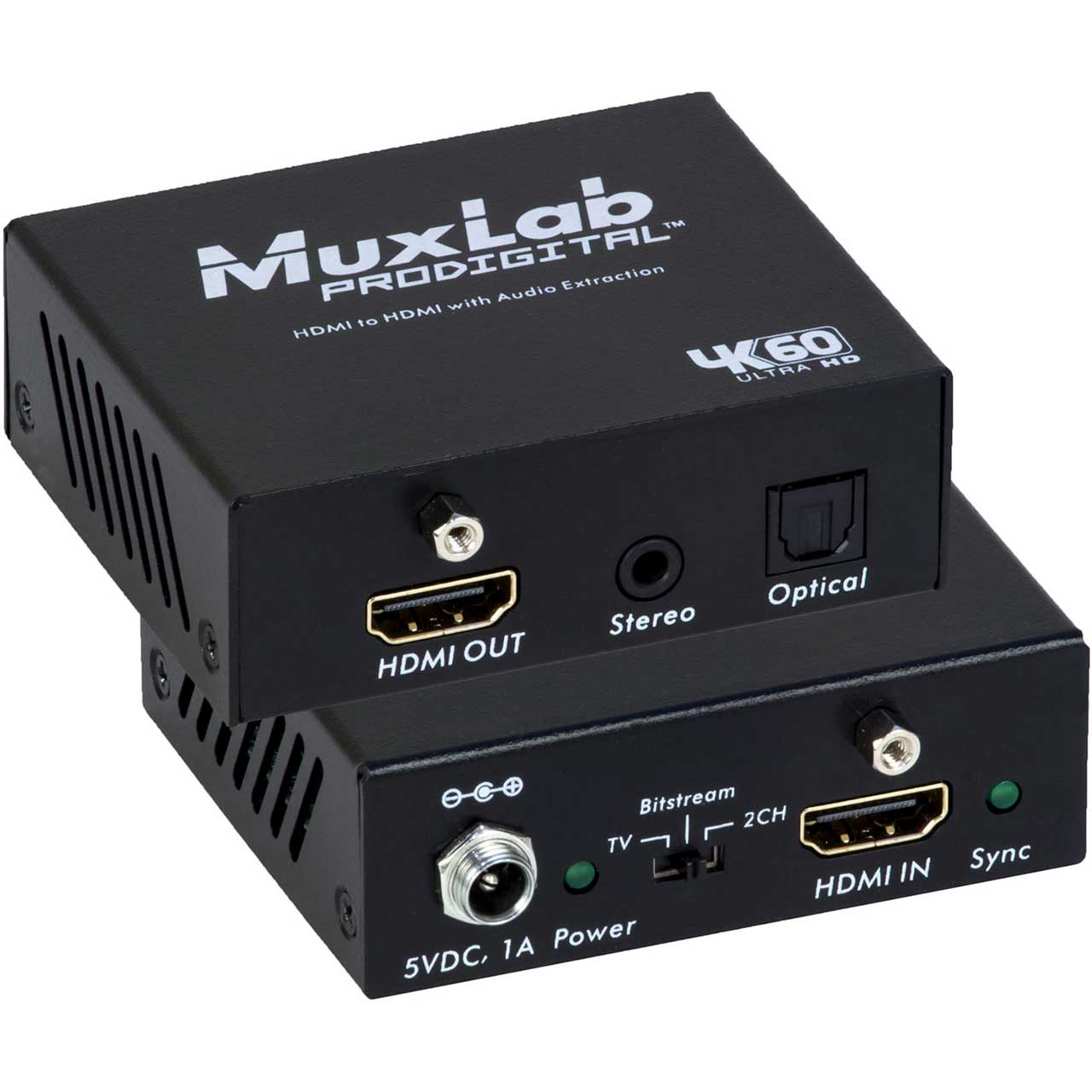

MuxLab 500436 HDMI to HDMI Distributer with Audio Extraction - 4K/60

Name: MuxLab 500436 HDMI to HDMI Distributer with Audio Extraction - 4K/60
Brand: MuxLab Inc
SKU: MUX-500436
Price: 128.00 USD
Availability: PreSale

ITEM #: MUX-500436 MFG #: 500436

MuxLab Inc

List Price:

$185.00

Our Price:

$128.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500436 - Overview

The Muxlab 500436 HDMI to HDMI with Audio Extraction, 4K/60 allows one (1) HDMI source to be distributed to one (1) HDMI display. The device supports up to 4K (3840 x 2160) video resolution at 60Hz, 8-bit color and HD audio.
The unit extracts LPCM, Dolby Digital, DTS, Dolby Digital Plus* and Atmos** digital audio from the S/PDIF TosLink port and 2CH analog audio from the 3.5mm 2CH audio port. The product is HDCP 2.2 compliant and features LED diagnostics.

Applications:
Commercial and residential AV systems
Classroom projector systems
Digitial signage
Boardroom systems
Collaborative PC systems

Features:
- Allows one HDMI 2.0 source to be repeated and distributed to one HDMI display
- HDMI supports 4K video at 60Hz, 8-bit color depth
- HDMI supports LPCM 7.1CH, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD-Master Audio, and DTS:X
- Extracts LPCM, Dolby Digital, Dolby Digital Plus*, DTS, and Dolby Atmos** digital audio via S/PDIF TosLink
- Extracts 2CH analog audio via 3.5mm jack * For compressed Dolby Digital Plus signals only (in TV mode) ** For Atmos over compressed Dolby Digital Plus only (in TV mode)
Specifications:
- General
- Environment: HDMI 2.0
- Devices: DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
- Transmission: Transparent to the user
- Video Bandwidth: 18Gbps
- Signals: HDMI 2.0 protocol
- Connectors: HDMI Type A 19-pin female, Toslink & 3.5mm Stereo Jack
- Operating Temperature: 32° to 104°F (0° to 40°C)
- Storage Temperature: -4° to 140°F (-20° to 60°C)
- Humidity: up to 90% non-condensing
- Enclosure: Metal enclosure
- Dimensions: 2.83 x 2.36 x 1" (72 x 60 x 25mm)
- Weight: 0.73Lbs (0.33Kg)
- Power Supply: 5VDC, 1A with interchangeable blade for US, UK and Euro
- Regulatory Compliance: FCC, CE, RoHS

  LEDs:
- One (1) Power: Green
- One (1) Sync: Green

  Resolution:
- 480i to 1080p @ 50/60 Hz
- 1080p @ 24/50/60 Hz
- 3840 X 2160 @ 24/25/30/50/60 HZ
- VGA to UXGA
- Color: 8, 10 & 12 bit

  Audio Format:
- HDMI Output: LPCM 7.1CH, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD-Master Audio, and DTS:X
- Optical Output: LPCM, Dolby Digital, Dolby Digital Plus*, DTS, and Dolby Atmos** digital audio via S/PDIF TosLink
- Stereo Output: 2CH analogue audio
- *For compressed Dolby Digital Plus signals only (in TV mode).
- **For Atmos over compressed Dolby Digital Plus only (in TV mode).

  Sampling Rate
- HDMI Output: 192 KHz
- Optical Output: 192 KHz
- Stereo Output: 48 KHz
- HDCP: Revision 2.2

  Cables
- HDMI Cable
- Audio cables: Optical with TosLink and 2CH analog with 3.5mm connectors
Warranty:
- 2 Year Warranty
GTIN:
0627699004364
