MuxLab 500533 USB-C/HDMI 5x1 Presentation Switcher with Dante - Supports HDBaseT 3.0 with PoE

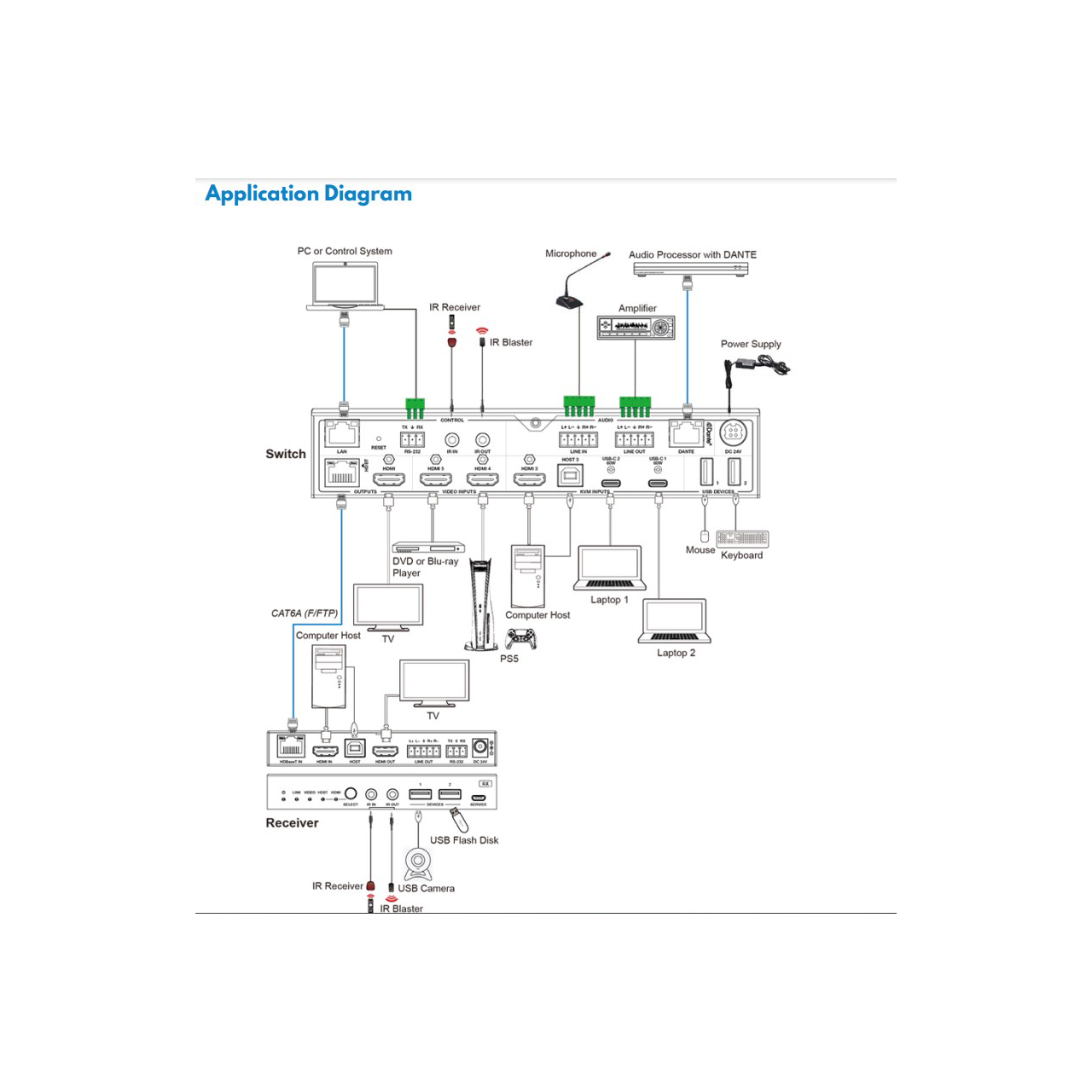

500533 - Overview

• Features:

  • 18Gbps video bandwidth 5x1 switcher
  • HDMI 2.0b and HDCP 2.2 complaint
  • Supports video resolution up to 4K@60Hz 4:4:4
  • Supports HDBaseT 3.0 with PoE
  • Supports 5x1 seamless switching
  • Dante 2x2 audio embedding input and output
  • Provides 5 Multiview display modes
  • Local USB 2.0 KVM switching and extendingUSB 2.0 over HDBT 3.0
  • Manual switching or automatic switching
  • Flexible control via front panel buttons, IRremote, RS-232, TCP/IP or Web GUI
  • Support standard PoE power supply


• Specifications:

  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 18Gbps
  • Input Video Resolution: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@50Hz/60Hz 4:4:4
  • Output Video Resolution: Auto, 3840x2160p60, 3840x2160p50, 4096x2160p60, 4096x2160p50, 3840x2160p30, 3840x2160p25, 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60
  • Color Space:
    - Input: 8/10/12-bit, 8-bit (4K60Hz 4:4:4)
    - Output: 8-bit
  • Color Depth: RGB, YCbCr 4 :4 :4/4 :2 :2/4 :2 :0
  • Audio Formats: LPCM 2.0
  • Audio Sample Rate: 48kHz
  • Transmission Distance: 1080P&4K30 -- 230ft/70m; 4K60-- 131ft/40m
  • HDR: Input supports HDR, outputdoes not support HDR
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

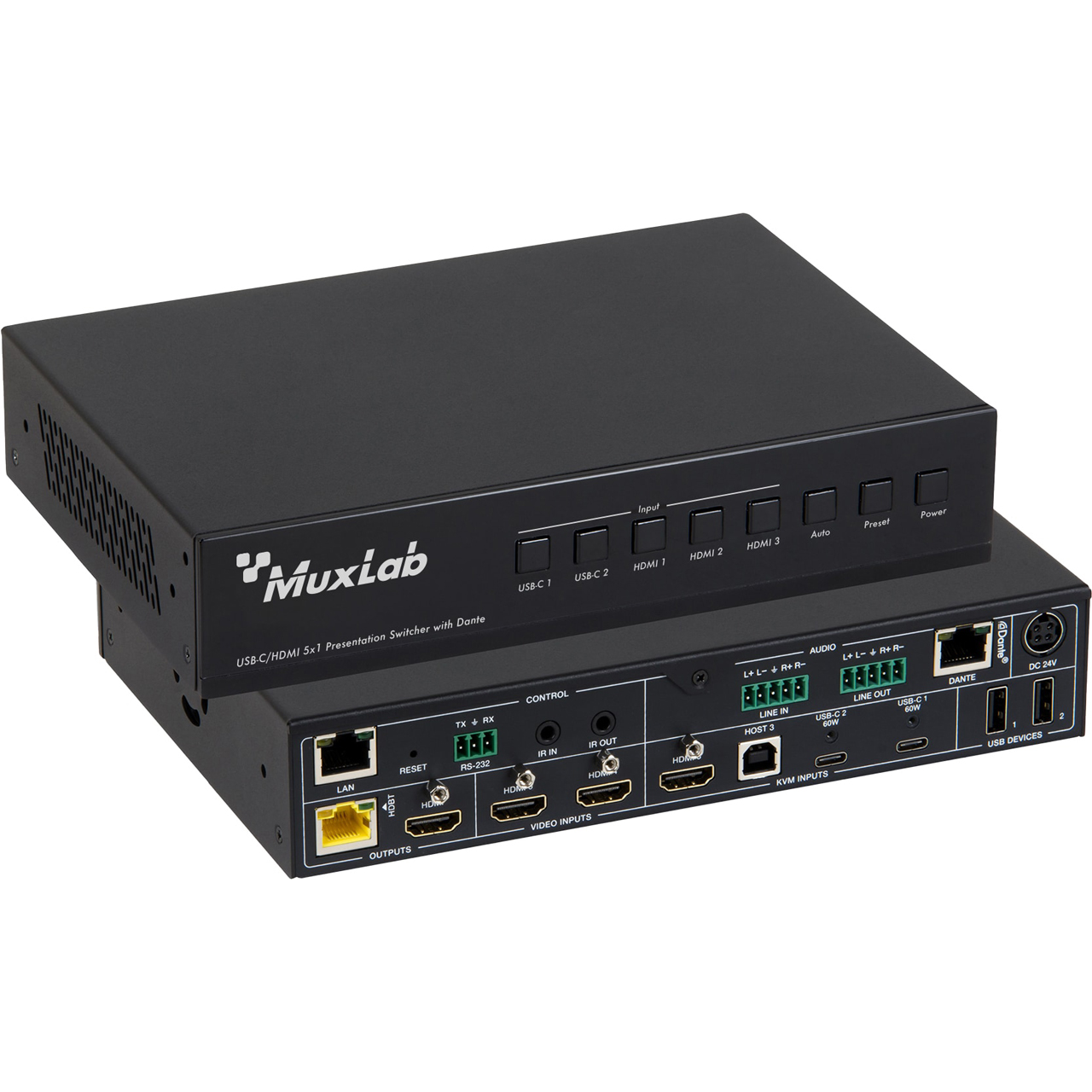

    Transmitter
  • Input Impedance: 10kΩ
  • Output Impedance: 330Ω
  • Max Line Input Level: 8.2dBu (2Vrms)@ balanced or unbalanced audio
  • Max Line Output Level: 8.2dBu (2Vrms)@ balanced, 2.2dBu (1Vrms)@ unbalanced audio
  • Frequency Response: (+0.5 dB, -1 dB) 20 Hz to 20 kHz
  • Audio Output Sync Delay: 0 - 50 ms
  • Audio S/N Ratio: 93dB @ 2Vrms, 1kHz A-weighted
  • Audio THD+N: <0.1% @ 0dBV, 1kHz
  • Inputs:
    3x HDMI INPUT (Type A, 19-pin female)
    2x USB-C (24-pin female)
    1x LINE IN (5pin-3.5mm phoenix connector)
    1x DANTE (RJ45)
  • Outputs:
    1x HDMI OUTPUT (Type A, 19-pin female)
    1x HDBT OUTPUT (RJ45)
    1x LINE OUT (5pin-3.5mm phoenix connector)
  • Controls:
    1x RS-232 (3pin-3.5mm phoenix connector)
    1x LAN (RJ45)
    1x USB HOST (USB Type B)
    2x USB DEVICES (USB Type A)
    1x IR IN (3.5mm stereo mini-jack)
    1x IR OUT (3.5mm stereo mini-jack)

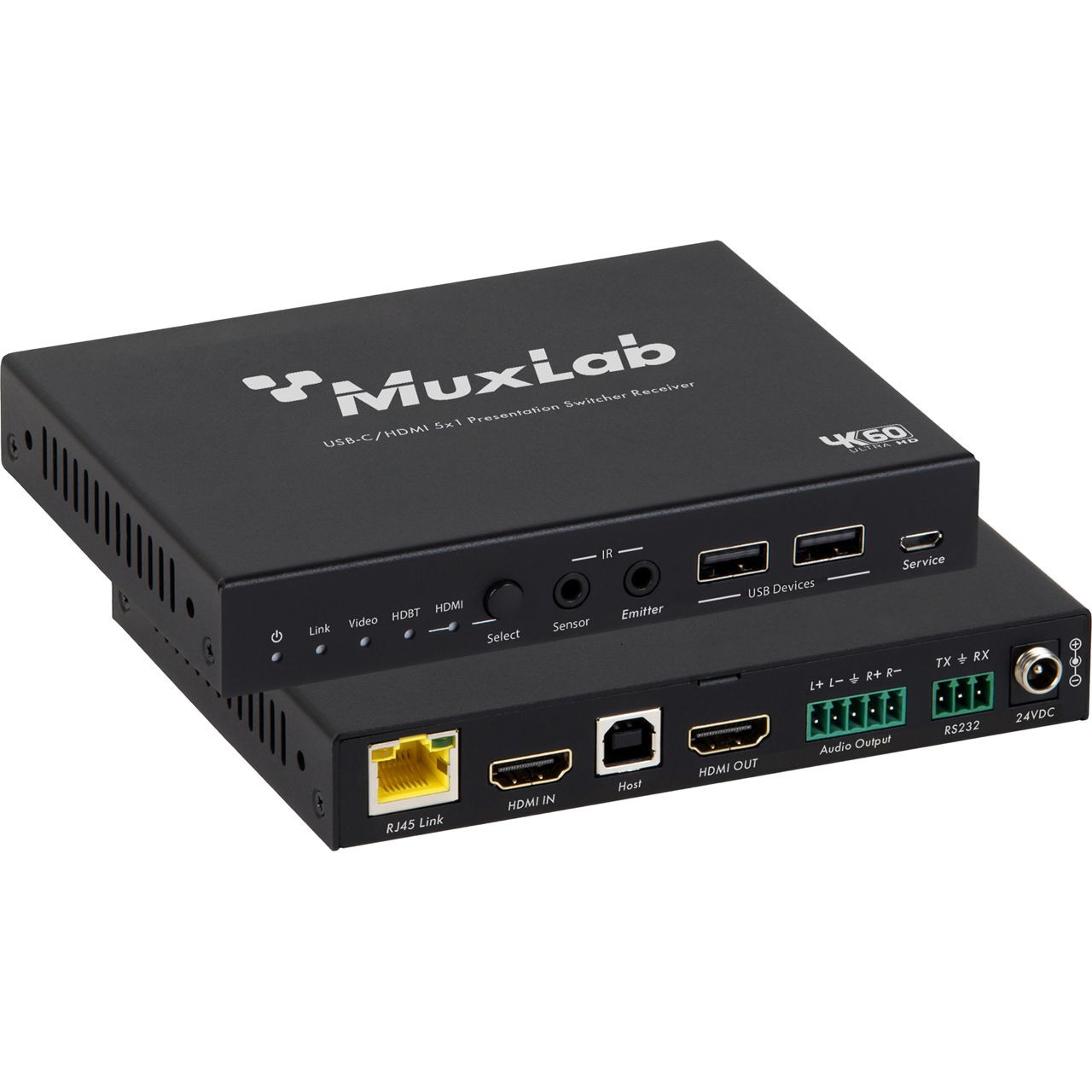

    Receiver
  • Output Impedance: 330Ω
  • Max Line Input Level: 8.2dBu (2Vrms)@ balanced or unbalanced audio
  • Max Line Output Level: 8.2dBu (2Vrms)@ balanced, 2.2dBu (1Vrms)@ unbalanced audio
  • Frequency Response: (+0.5 dB, -1 dB) 20 Hz to 20 kHz
  • Audio Output Sync Delay: 0 - 50 ms
  • Audio S/N Ratio: 93dB @ 2Vrms, 1kHz A-weighted
  • Audio THD+N: <0.1% @ 0dBV, 1kHz
  • Inputs:
    1x HDMI IN (TypeA, 19-pin female)
    1x HDBaseT IN (RJ45)
  • Outputs:
    1x HDMI OUT (Type A, 19-pin female)
    1x LINE OUT (5pin-5mm phoenix connector)
  • Controls:
    1x RS-232 (3pin-3.5mm phoenix connector)
    1x USB HOST (USB Type B)
    2x USB DEVICES (USB Type A)
    1x SERVICE (Micro USB)
    1x IR IN (3.5mm stereo mini-jack)
    1x IR OUT (3.5mm stereo mini-jack)


  • Audio Format: LPCM2.0
  • Sample Rate: 44.1, 48, 88.2 and 96KHz at 24 bits
  • Audio Delay: 2ms, 3ms, 4ms, 5ms, 10ms
  • Network Bandwidth: 100Mbps
  • Housing: Metal enclosure with aluminum front panel
  • Color: Black
  • Dimensions:
    - Tramsmitter: 8.66" x 5.91" x 1.73" (220mm x 150mm x 44mm)
    - Receiver: 5.51" x 4.13" x 0.84" (140mm x 105mm x 21.5mm)
  • Weight:
    - Transmitter: 2.67lbs (1.21kg)
    - Receiver: 14.96oz (424g)
  • Power Supply:
    - Input: 100VAC - 240VAC 50/60Hz
    - Output: 24VDC/8A
  • Power Consumption: 150W (Max)
  • Temperature:
    - Operating: 32°F - 104°F (0°C - 40°C)
    - Storage: -4°F - 140°F (-20°C - 60°C)
    - Relative Humidity: 20 - 90% RH (non-condensing)


• Item Includes:

  • 1x USB-C HDMI 5x1 Presentation Switcher with Dante
  • 1x HDBaseT Receiver
  • 1x IR Blaster cable (1.5 meters)
  • 1x IR Wideband Receiver Cable (1.5 meters)
  • 1x IR Remote Control
  • 2x 3pin-3.5mm Phoenix Connector (male)
  • 3x 5-pin Phoenix Connector
  • 1x 24VDC/8A Desktop Power Supply and AC Power Cord (1.5 meters)
  • 4x Mounting Ear (Matrix and Receiver)
  • 1x User manual (available via download)


• Warranty:

  • 2 Year Warranty


• Applications:

  • Conference rooms
  • Conference centres
  • Corporate boardrooms
  • Hotels and hospitality rooms
  • Education
  • Command & control centres


• GTIN:

  0627699005330
