Yamaha RM-CR Audio Processor - Dante Ready

ITEM #: YMUC-RMCR MFG #: RMCR

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$2,099.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RMCR - Overview

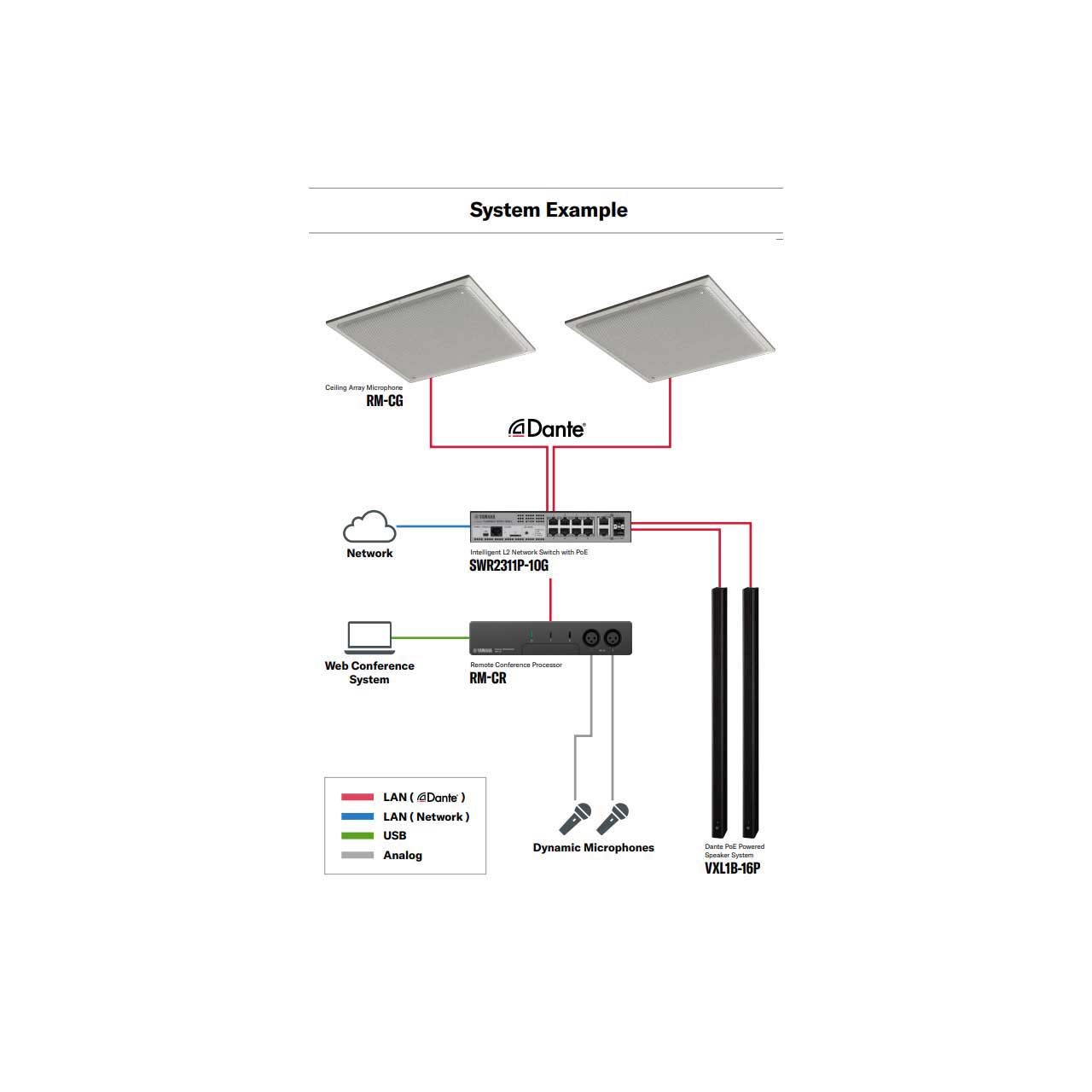

Yamaha Unified Communications RM-CR is the audio signal processor at the heart of the RM series. Standard network audio support for "Dante" all compatible devices can be connected with single network cable. Up to 2 RM-CG and 2 VXL1B-16P can be connected via PoE switch SWR2311P-10G. It can automatically recognize connected devices on the same network for audio routing and is equipped with the Auto Tuning functions that automatically measure and provide the optimum sound settings for the environment as well as Auto Mixer functions that automatically mix the audio of all connected microphones with various input/output connections such as USB, VoIP, analog, and Bluetooth.

  • Specifications:

    • General
    • Dimensions (WxDxH): 8.46 x 10.23 x 1.73" (215 x 260 x 44mm)
    • Weight: 3.30Lbs (1.6kg)
    • Power Requirements: PoE+(IEEE 802.3at, LLDP), DC 48V
    • Maximum Power Consumption: 15.0W
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Operating Humidity: 30 to 90% (non-condensing)
    • Storage Temperature: -4° to 140°F (-20° to 60°C)
    • Storage Humidity: 20 to 90% (non-condensing)
    • Indicator: Power Indicator, Status Indicator, Bluetooth Indicator, Network Port Indicator x3

      Network
    • Ether1: Dante Audio/Dante Control, Remote Control, WebUI, PoE+
    • Ether2/Ether3: Corporate Network, Remote Control, SIP, WebUI
    • USB Network (Front): USB2.0, Network Class, WebUI, Fixed IP
    • Cable Requirements: Ether1/2/3 : Cate 5e or higher (STP Recommended) USB Network : USB Cable (A-microB type)

      Audio
    • Frequency Response: 20Hz - 20kHz
    • Sampling Rate: 48kHz
    • Bit depth: 24bit
    • Latency: 7 [ms] (Dante In to USB Out, includes signal processing)

      Audio I/O
    • Dante: 16in x 16out
    • USB: USB2.0, Audio Class 1.0 Input: 2ch, Output: 2ch @48kHz
    • Mic Input: XLR balanced, Input 2ch
    • AUX: RCA unbalanced (Line Level), Input: 2ch, Output: 2ch
    • Speaker Out: RCA unbalanced (Line Level), Output: 2ch
    • Bluetooth: Version 4.2, Supported profiles: HFP(1.6), A2DP, AVRCP, Supported Codec: CVSD, SBC, mSBC
    • Wireless Output: Class2, Maximum communication distance: 10m (32.8 ft) (no
    • obstacles), Radio frequency (operational frequency): 2,402 to 2,480 MHz, Maximum output power (EIRP): 4.0 dBm (2.5 mW)

      SIP
    • Call Handling: Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Call ID, Voice Mail Notifications (switch configured)
    • Call Bridging: Supports Bridging SIP, USB, BT and AUX Calls. Join, Split, Hold, Resume, 5+1 Lines: Up to 2 SIP calls, 1 USB call, 1 Bluetooth Call, 1 AUX, plus the user
    • Codecs: G.711, G.722HD, G.729ab, G.726
    • DTMF Support: RTP event, SIP in-band, SIP info package
    • Security: SRTP Support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs)

      For a list of full specifications, please visit the Data Sheets Tab.
