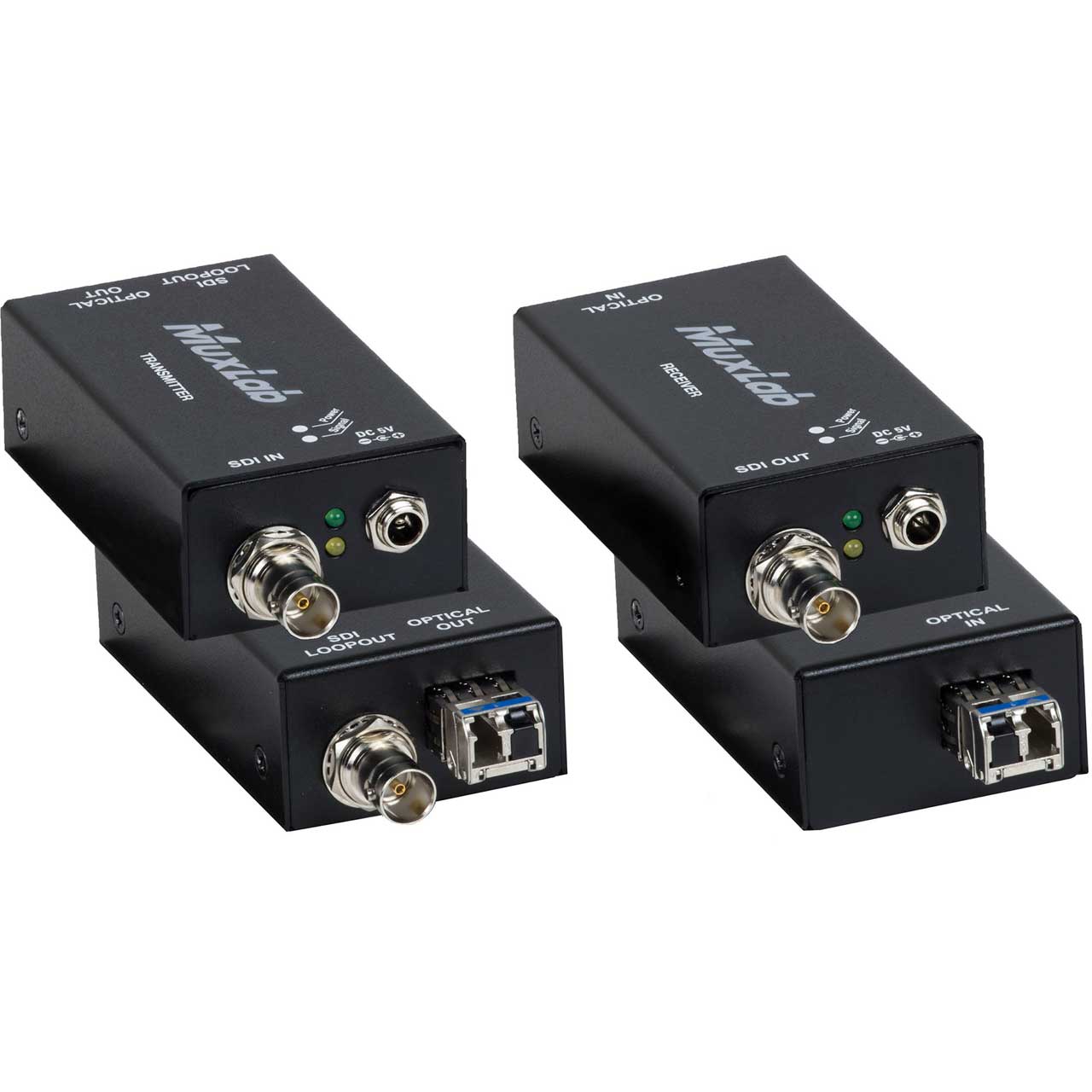

MuxLab 500713 12G-SDI Singlemode Simplex 4K/60 Fiber Extender Kit Transmitter & Receiver - SFPs Included

Name: MuxLab 500713 12G-SDI Singlemode Simplex 4K/60 Fiber Extender Kit Transmitter & Receiver - SFPs Included
Brand: MuxLab Inc
SKU: MUX-500713
Price: 1358.00 USD
Availability: PreSale

ITEM #: MUX-500713 MFG #: 500713

MuxLab Inc

List Price:

$1,697.00

Our Price:

$1,358.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500713 - Overview

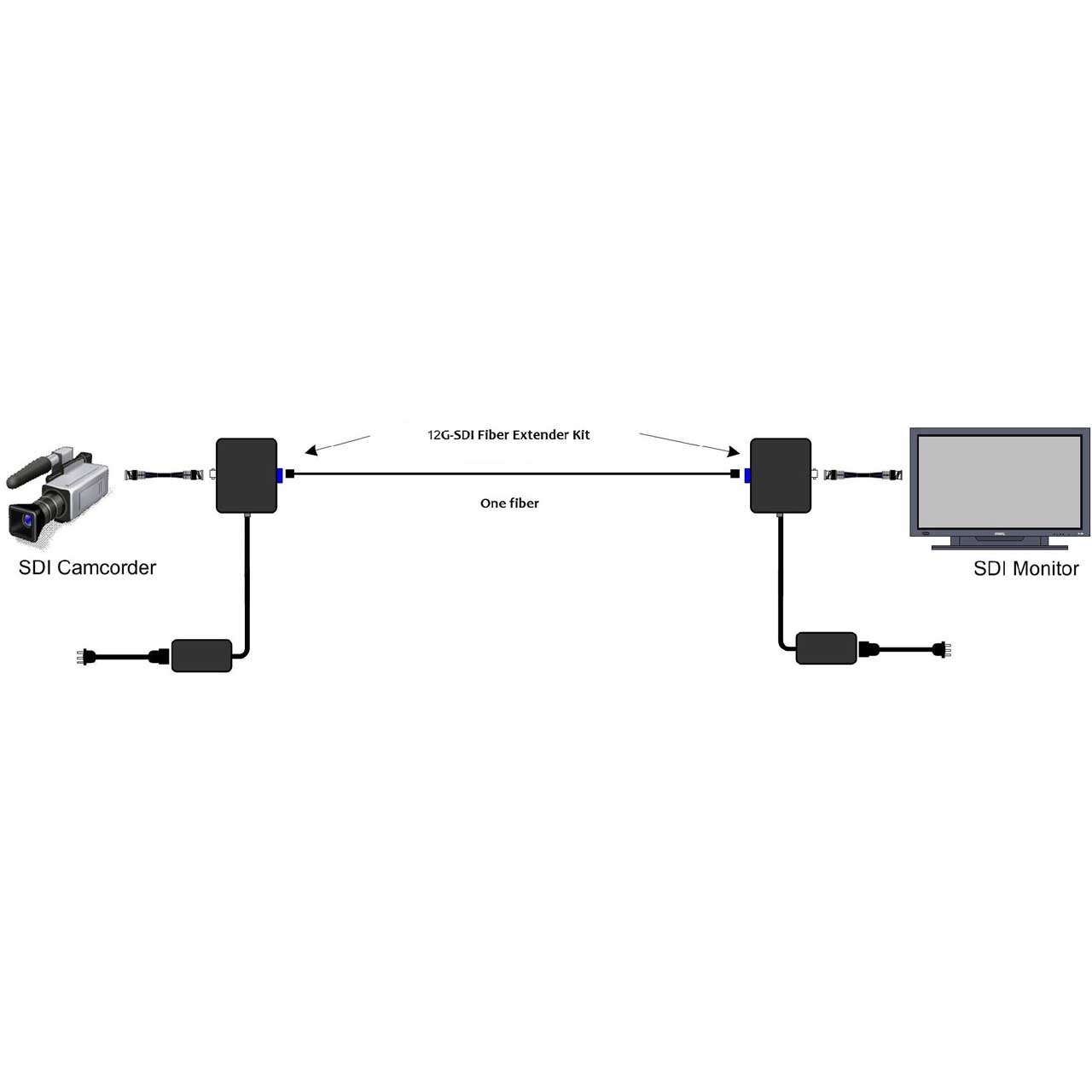

The MuxLab 500713 12G-SDI Fiber Extender Kit allows 12G-SDI to be transmitted up to 33,000ft (10km) via a one singlemode fiber cable in a point-to-point configuration at all specified bit rates.

The 12G-SDI Fiber Extender Kit supports transmission of up to 12 Gbps of digital video within television broadcasting facilities and between professional video equipment.

Power Supply Included:
Two 100-240V/5 VDC 2A power supplies with interchangeable blades for NA, Europe and UK.

Specifications:
- Environment: SDI single coaxial link: 12G, 6G, 3G, HD & SD
- Standard Supported:
  - 12G-SDI: SMPTE ST2082-2
  - 6G-SDI: SMPTE ST2082-1
  - 3G-SDI: SMPTE 424M
  - HD-SDI: SMPTE 292M
  - SD-SDI: SMPTE 259M
- Bit Rates: 11.88Gb/s, 5.94Gb/s, 2.97Gb/s, 1.485Gb/s & 0.27Gb/s (automatic selection)
- Indicators:
  - Power
  - Signal (signal present)
- Connectors (on each unit):
  - 1x BNC 75ohm female
  - 1x duplex LC single-mode fiber connector
  - 1x locking power connector, 2mm
- Typical Distance on Coax (Using RG6 low loss coax Belden 1694A cable):
  - 130ft (40m) at 11.88Gb/s
  - 260ft (80m) at 5.94Gb/s,
  - 700ft (210m) at 2.97Gb/s,
  - 1000ft (300m) at 1.485Gb/s
- Typical Distance on Fiber (Using single-mode fiber 9/125æm for 1310nm): 33,000ft (10km)
- Optic Link Required: Simplex or Duplex SMF fiber 9/125æm with LC connectors (only one fiber is used)
- Eye Safety for Laser: Class 1, compliant with IEC60825-1
- Voltage Required: 5 VDC
- Power Supply Included: 2x 100-240V/5 VDC 2A power supplies with interchangeable blades for NA, Europe and UK
- Power Consumption: 3 Watts (max) per unit
- Temperature:
  - Operating: 32°F - 104°F (0°C - 40°C)
  - Storage: -4°F - 140°F (-20°C - 60°C)
  - Humidity: 20% - 90% non-condensing
- Enclosure Type: Black, metal
- Dimensions:
  - Enclosure: 3.2" x 1.9" x 1.1" (8.2cm x 4.8cm x 2.8cm), excluding connectors
  - Shipping Box: 10.6" x 6.9" x 3.0" (27.0cm x 17.5cm x 7.6cm)
- Shipping Weight: 1.6lbs (0.7kg)
Item Includes:
- 1x Muxlab 500713 12G-SDI Singlemode 4K/60 Fiber Extender Kit
- 2x 100-240V/5 VDC 2A power supplies with interchangeable blades for NA, Europe and UK.
Applications:
- Video production
- Broadcasting
- Camcorder
- Studio-to-studio
- Post-production
- Live events
- Medical imaging displays
- Mobile video
- 12G/6G/3G/HD/SD-SDI routing
- 12G/6G/3G/HD/SD-SDI CCTV
- Medical imaging
GTIN:
0627699007136
