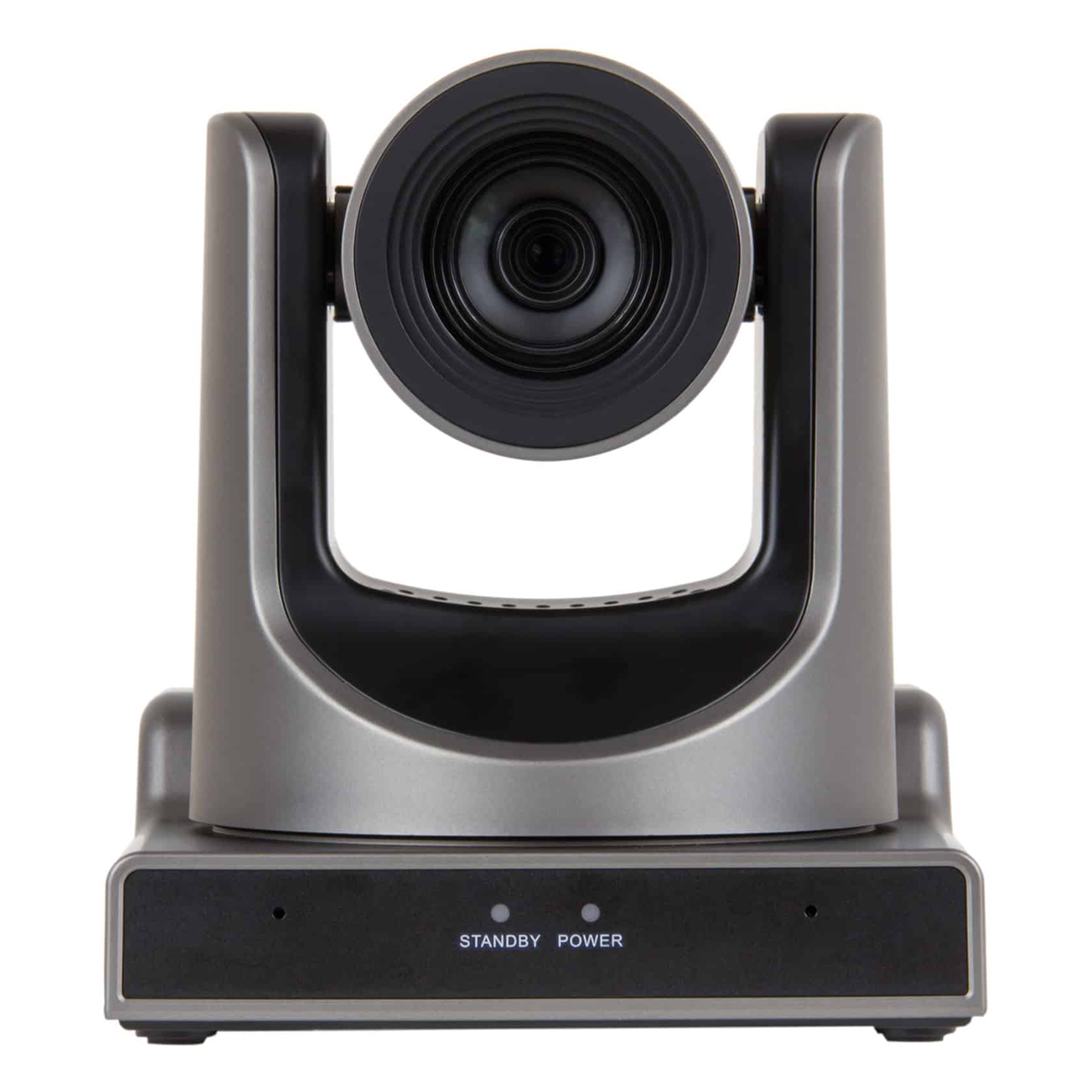

MuxLab 500790-V2 HTMI/USB/NDI/IP PTZ Camera 30x Zoom - PoE

500790-V2 - Overview

• Features:

  • Maximum resolution of 1920 x 1080 (Full HD) at 60Hz
  • Supports SDI, HDMI, USB 3.0 and network audio-visual output
  • Built-in advanced AI algorithm that enables precise body tracking
  • Supports Full NDI protocol
  • Supports 30x optical zoom and 60.7° horizontal field of view
  • Advanced Auto-focusing Technology
  • Built-in dual microphone to capture sound
  • Provides an economical solution for live streaming, conferencing and education


• Specifications:

  • Video System: 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50
  • Sensor: 1/2.8-inch high-quality UHD CMOS sensor with a maximum of 2.07 million pixels
  • Scanning Mode: Progressive scanning
  • Lens: 30x, f4.42mm - 132.6mm, F1.8 - F2.8
  • Minimal Illumination: 0.5Lux @ (F1.8, AGC ON)
  • Electronic Shutter: 1/30s - 1/10000s
  • White Balance: Automatic, manual, one touch, Specifying color temperature, indoor, outdoor
  • Digital Noise Reduction: 2D, 3D digital noise reduction
  • Backlight Compensation: Supported
  • Video S/N: ≥55dB
  • Horizontal Angle of View: 60.7° - 2.28°
  • Vertical Angle of View: 34.1° - 1.28°
  • Horizontal Rotation Range: ±170°
  • Vertical Rotation Range: -30° - 90°
  • Pan Speed Range: 1.7° - 100°/s
  • Tilt Speed Range: 1.7° - 69.9°/s
  • H & V Flip: Supported
  • Image Freeze: Supported
  • Number of Presets: 255
  • Preset Accuracy: 0.1°
  • Digital Audio Pickup: Built-in microphone array, 100Hz to 16KHz frequency response
  • Analog Audio Input: Supported 3.5mm Line-In
  • Digital Audio Output: Supported HDMI, USB, LAN, SDI audio output
  • Analog Audio Output: Supported 3.5mm Line-Out
  • Supported Operating Systems:
    - Windows® 7, Windows 8.1, Windows 10 and up
    - macOS™ 10.10 and up
    - Google™ Chromebook™ Version 29.0.1547.70 and up
    - Linux (only for UVC)
  • Hardware Requirements:
    - 2.4 GHz Intel® Core 2 Duo processor and up
    - 2 GB internal storage and up
    - USB 2.0 interface
  • Color System/Compresion: YUY2/MJPEG/H.264
  • Video Format: Video format of multi frame rate and resolution ratio, up to 1080P60 YUY2
  • USB Video Communication Protocol: UVC 1.1 or UV C1.5
  • Audio on USB: 32K sampling frequency, supported UAC2.0
  • UVC PTZ: Supported
  • Video Compression: H.264
  • Video Stream: First and second streaming
  • Main Stream Resolution: 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360
  • Sub Stream Resolution: 1280x720, 1024x576, 720x576, 720x480, 720x408, 640x360, 480x270, 320x240, 320x180
  • Video Bit Rate: 32Kbps - 102400Kbps
  • Bit Rate Type: Variable bit rate,Fixed bit rate
  • Frame Rate: 1fps - 60fps
  • Audio Compression: AAC
  • Audio Bit Rate: 96Kbps, 128Kbps, 256Kbps
  • Supported Products: FULL NDI, NDI|HX, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, SRT, GB/T28281

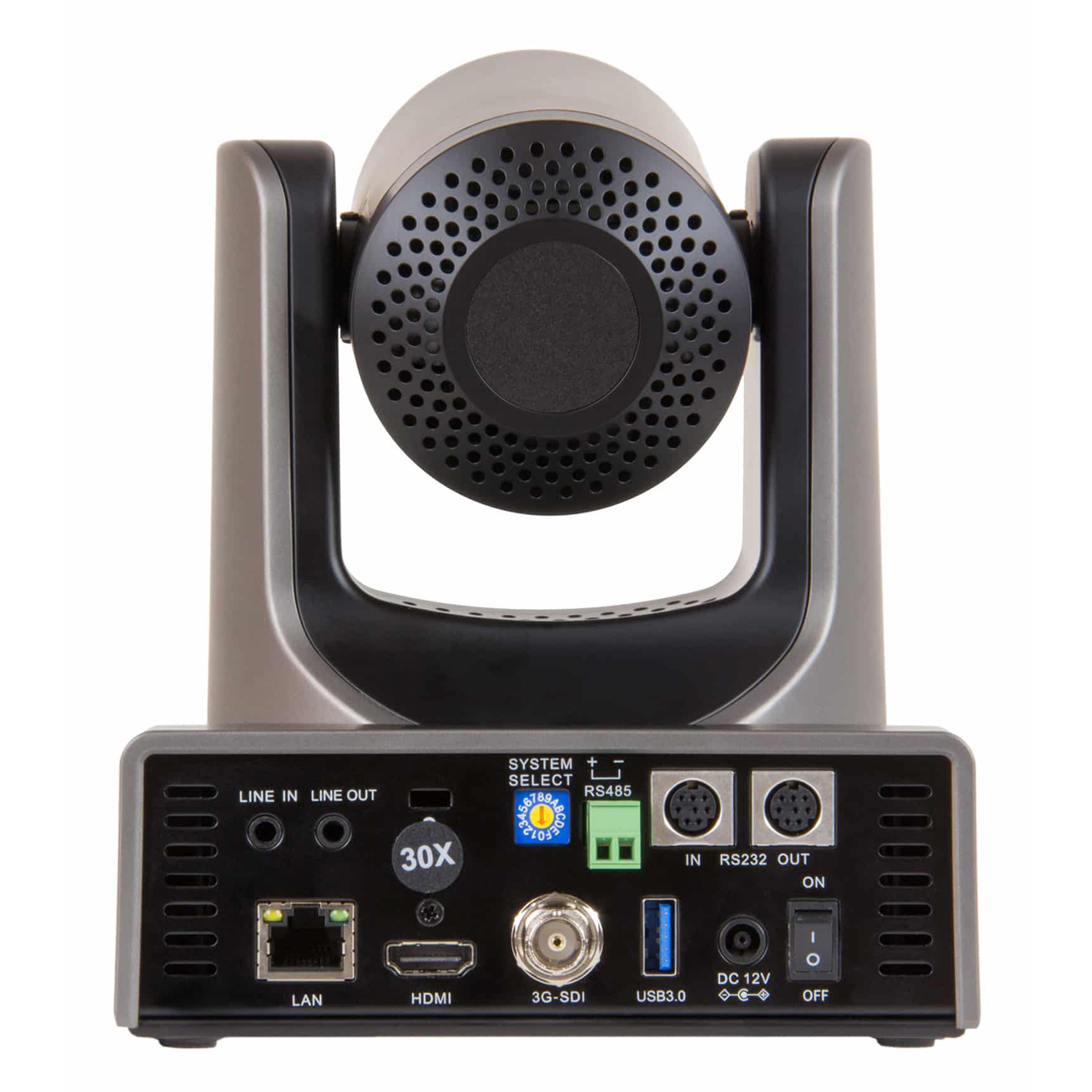

  • USB: 1-ch, USB 3.0 Type-A
  • HD Output:
    - 1x HDMI: V1.3
    - 1x 3G-SDI: BNC type, 800mVp-p, 75O, Comply with SMPTE 424M standard
  • Network Interface: 1x RJ45:10M/100M/1000M Adaptive Ethernet, supported PoE
  • Audio Interface:
    - 1x Line In, 3.5mm Audio Interface
    - 1x Line Out, 3.5mm Audio Interface
  • Communication Interface:
    - 1x RS232 In: 8pin Min DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P
    - 1x RS232 Out: 8pin Min DIN, Max Distance: 30m, VISCA network use only
    - 1x RS485: 2-POS Terminal Block, Max Distance: 1200m, VISCA/Pelco-D/Pelco-P
  • Power Jack: JEITA Type (DC IN 12V)
  • Input Voltage: DC 12V,PoE (802.3af)
  • Input Current: 1000mA
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: 14°F - 122°F (-10°C - 50°C)
  • Power Consumption: 12W
  • Size: 4.75" x 6.65" x 6.61" (146mm x 169mm x 168mm)
  • Net Weight: 3.31lbs (1.5kg)


• Item Includes:

  • 1x USB/NDI/IP PTZ Camera 30x Zoom
  • 1x 100~240V AC 50/60Hz 24V-6.5A Power adapter
  • 1x RS232 Cable
  • 1x Remote Control
  • 1x Wall mount Bracket
  • 1x Ceiling mount Bracket


• Warranty:

  • 2 Year Warranty


• Applications:

  • Local AV capture and monitoring
  • Live AV presentation broadcasts over theInternet
  • Live AV streaming to YouTube, Facebook, and Wowza
  • Streaming to OBS and Wirecast AVcontent production tools
  • Ideal for House of Worship, Fitness Training, Cooking Classes, etc.


• GTIN:

  0627699017906
