The Smart-AVI MXWALL-UHD-16x16 is a video wall processor and matrix switch with up to 16 full UHD inputs and 16 outputs, an integrated converter and scaler. Compact, plug-and-play, and excellent for mid-sized video wall displays between 16 screens with resolutions up to 4K (3840x2160 @ 24 Hz/25 Hz/30 Hz/50 Hz/60 Hz) Full UHD.

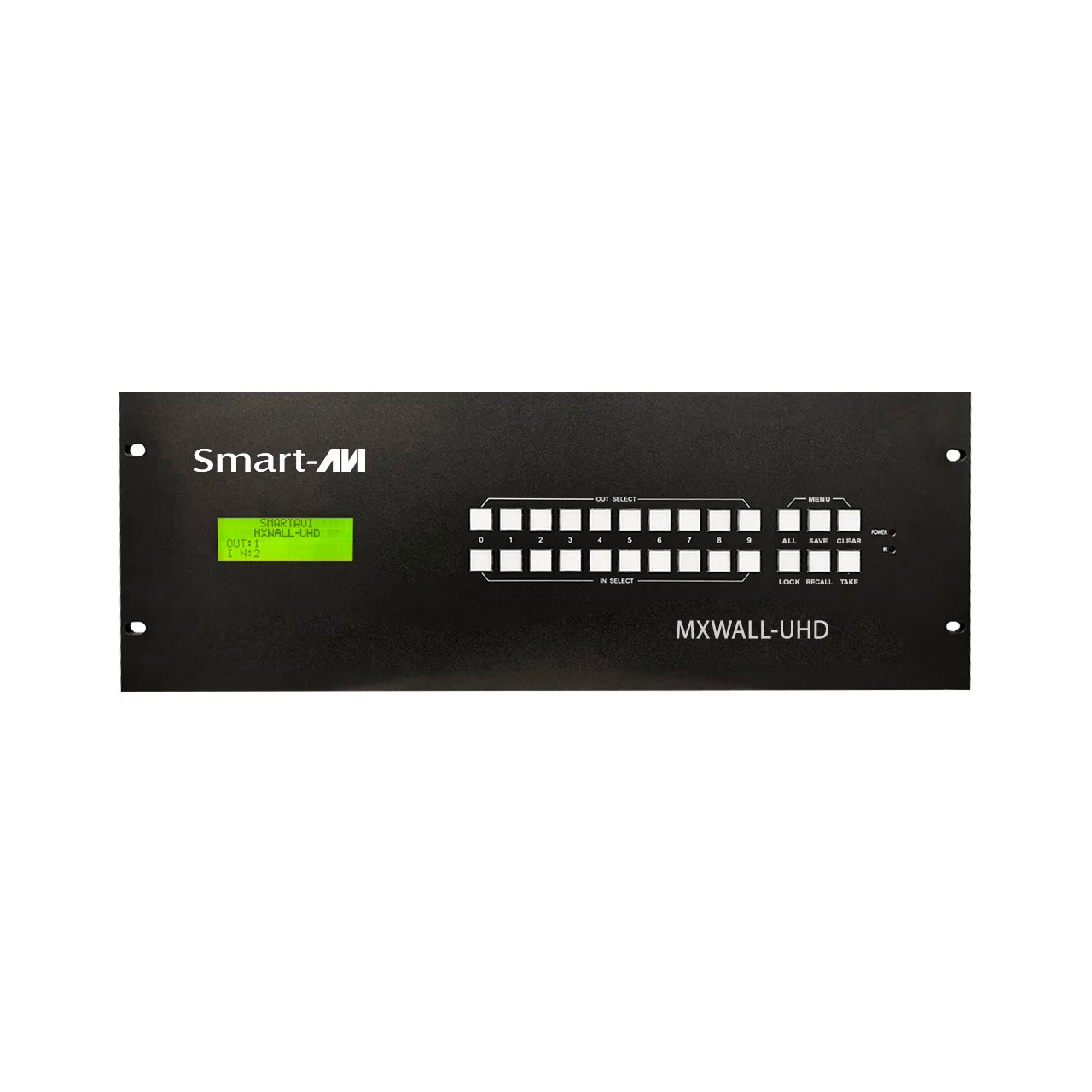

The MXWALL-UHD is simple to control, outfitted with easy front-panel buttons and optional RS232 control. Better still, the MXWALL-UHD comes with SmartAVI's intuitive MXWall Manager software absolutely free! MXWall Manager software let's users manually create and adjust their ideal video wall displays using simple click-and-drag operation: it's fun and great for users of any technical skill level! Users can choose from a number of great per-configured screen modes as well, displaying content in full video wall, four-screen quad, and individual screen modes with the press of a button. The MXWALL-UHD also features TCP/IP web control for LAN-connected units, so users can control the contents of the video wall from the comfort of a PC workstation.
Its compact design and powerful processing power makes the MXWALL-UHD the perfect solution for any video wall installation. Plug-and-play, the MXWALL-UHD is immediately ready for use as soon as it is connected to an AV set-up: no additional drivers or installers required. Better still, its exceptional hardware makes for stunning video wall displays in environments like retail spaces, educational facilities, conference rooms, command centers, event halls, entertainment venues, airports, and more!
It is easy to create different configurations or modes that are simple to navigate through with the MXWALL-UHD. There are endless possibilities. Creating and switching between display modes is simple. Front panel buttons, on-screen-display, RS232, and TCP/IP can be used to switch between modes at will. The MXWALL-UHD presents nearly unlimited configuration possibilities.
