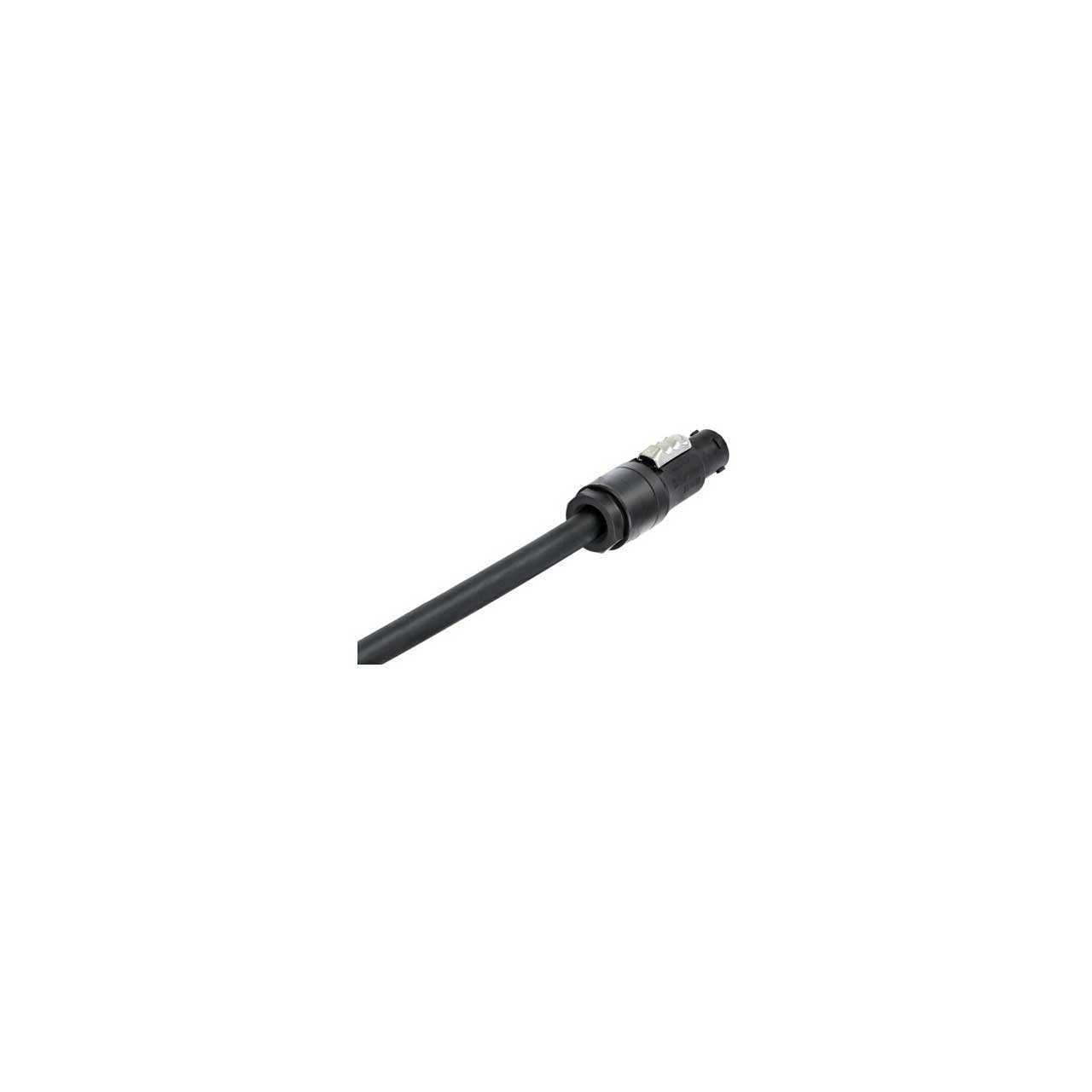

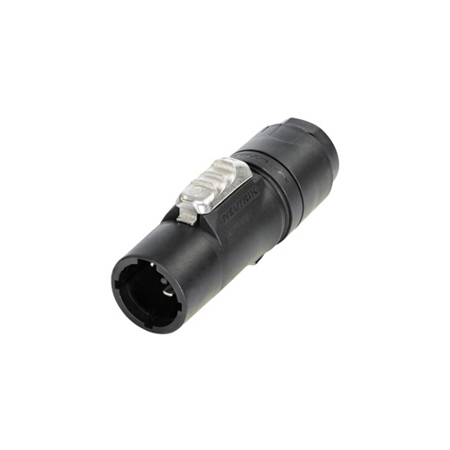

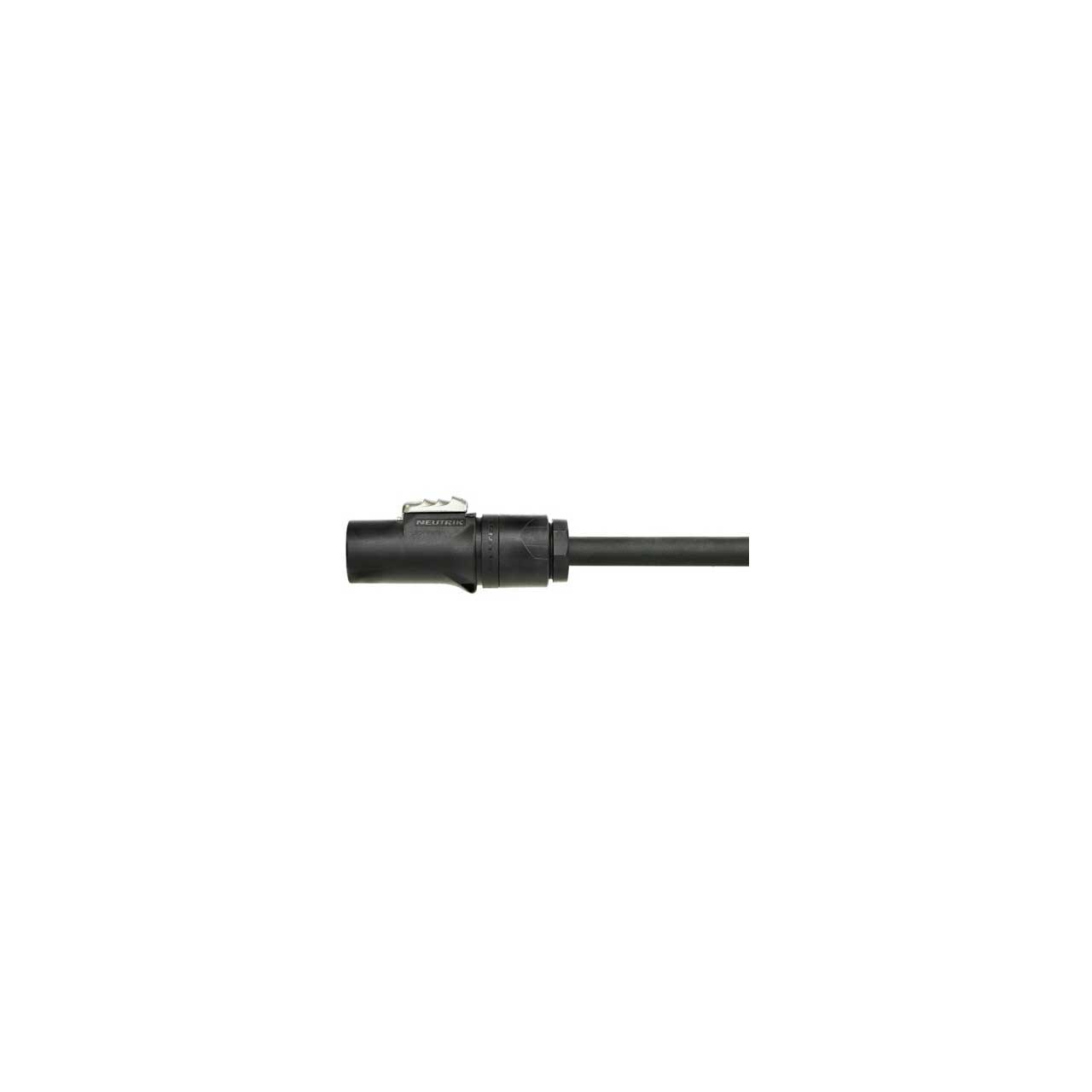

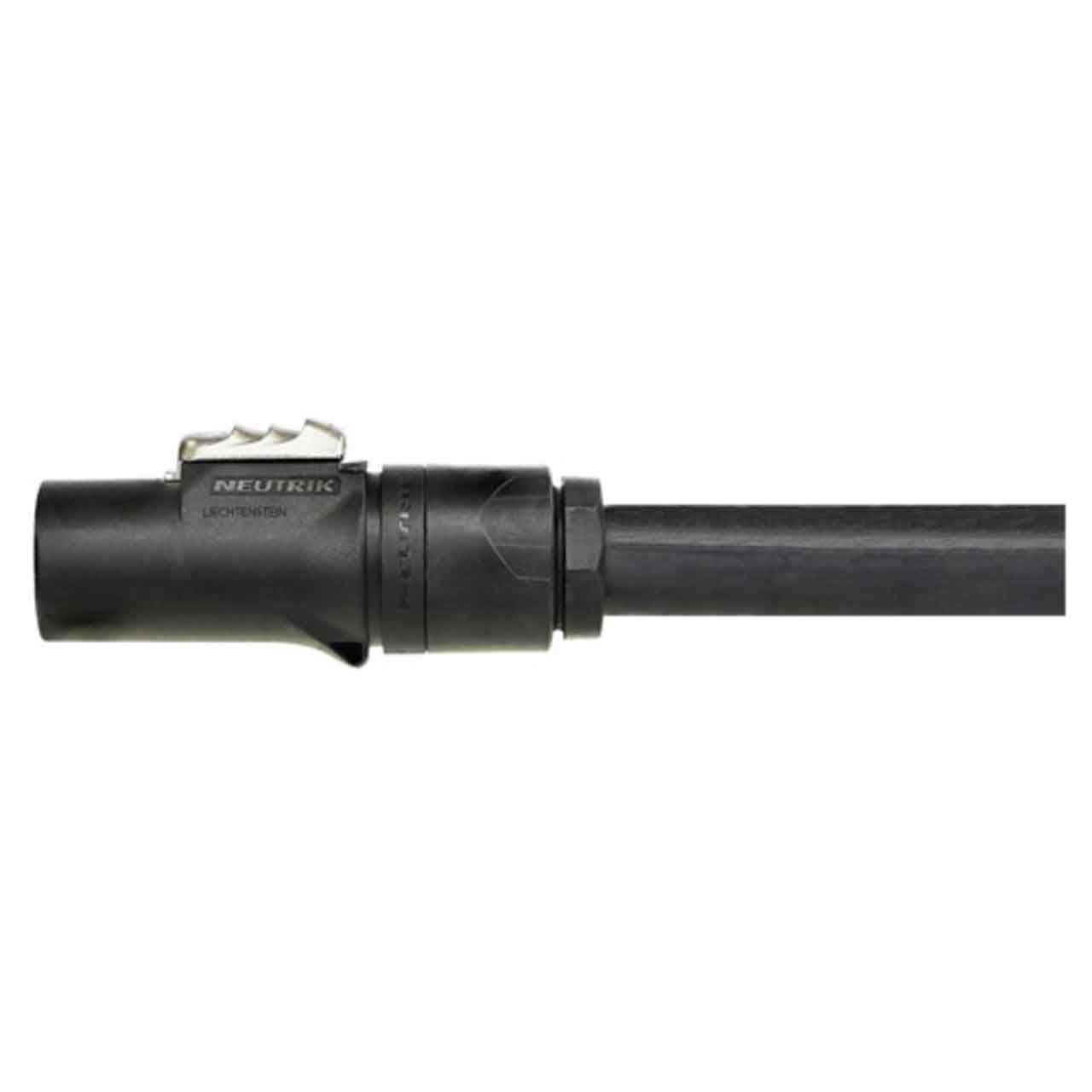

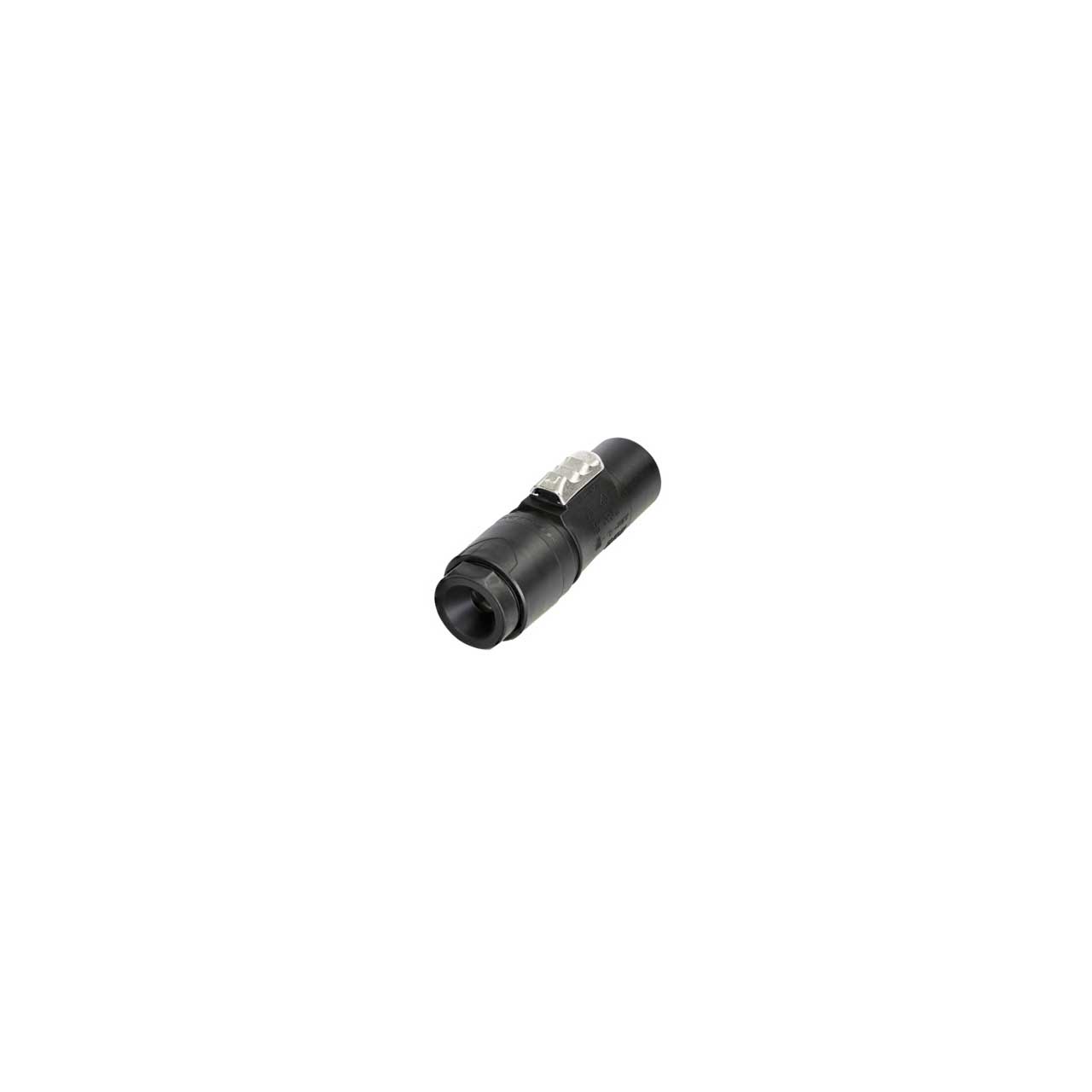

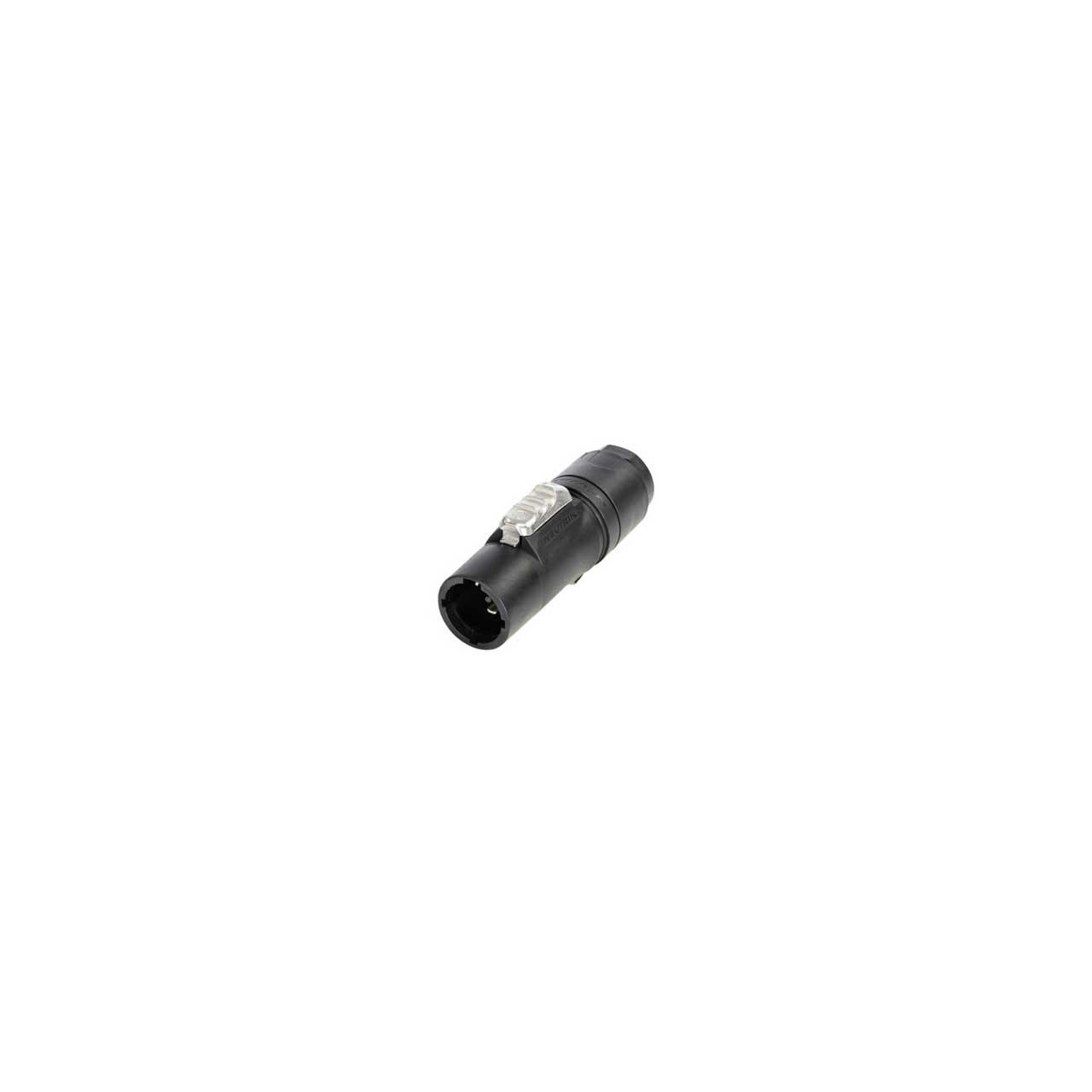

Neutrik NAC3MX-W-TOP-L powerCON TRUE1 TOP Locking Male Cable Connector for Large Diameter Cable (10-16mm)

ITEM #: NAC3MX-W-TOP-L MFG #: NAC3MX-W-TOP-L

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$12.08

Our Price:

$10.36

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NAC3MX-W-TOP-L - Overview

The Neutrik NAC3MX-W-TOP-L is a Locking male cable connector for big power cord diameters 10-16 mm (0.39-0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3 / SOOW 14/3. Certified to EN/UL 60320-1.

Power out, screw terminals, IP65, up to 16 A (USA: 20A)

The powerCON TRUE1 TOP is a single phase connector for outdoor applications with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

  • Features:

    • For cable diameters 10-16 mm (0.39 - 0.63 inches)
    • IEC EN 60320-1 and UL 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 and of equipment acc. to IEC 62368-1
    • Heavy duty sealed power connector for harsh and demanding environment
    • TOP True Outdoor Protection
    • Uses high impact UV-resistant materials
    • Single phase connector with Circuit Breaking Capability (20 A 250 VAC)
    • Extremely robust and reliable cable retentionSuperior NEUTRIK quality standard
