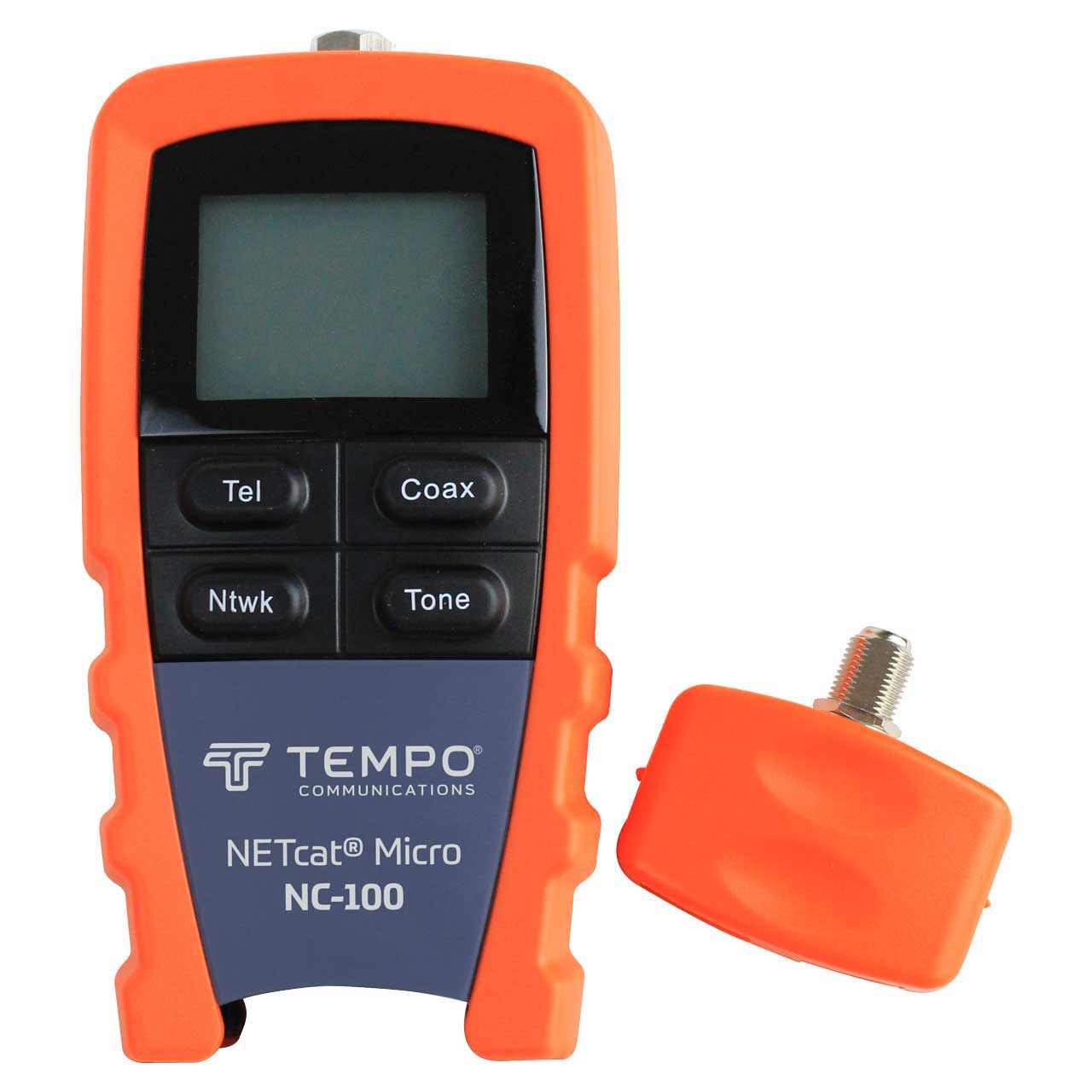

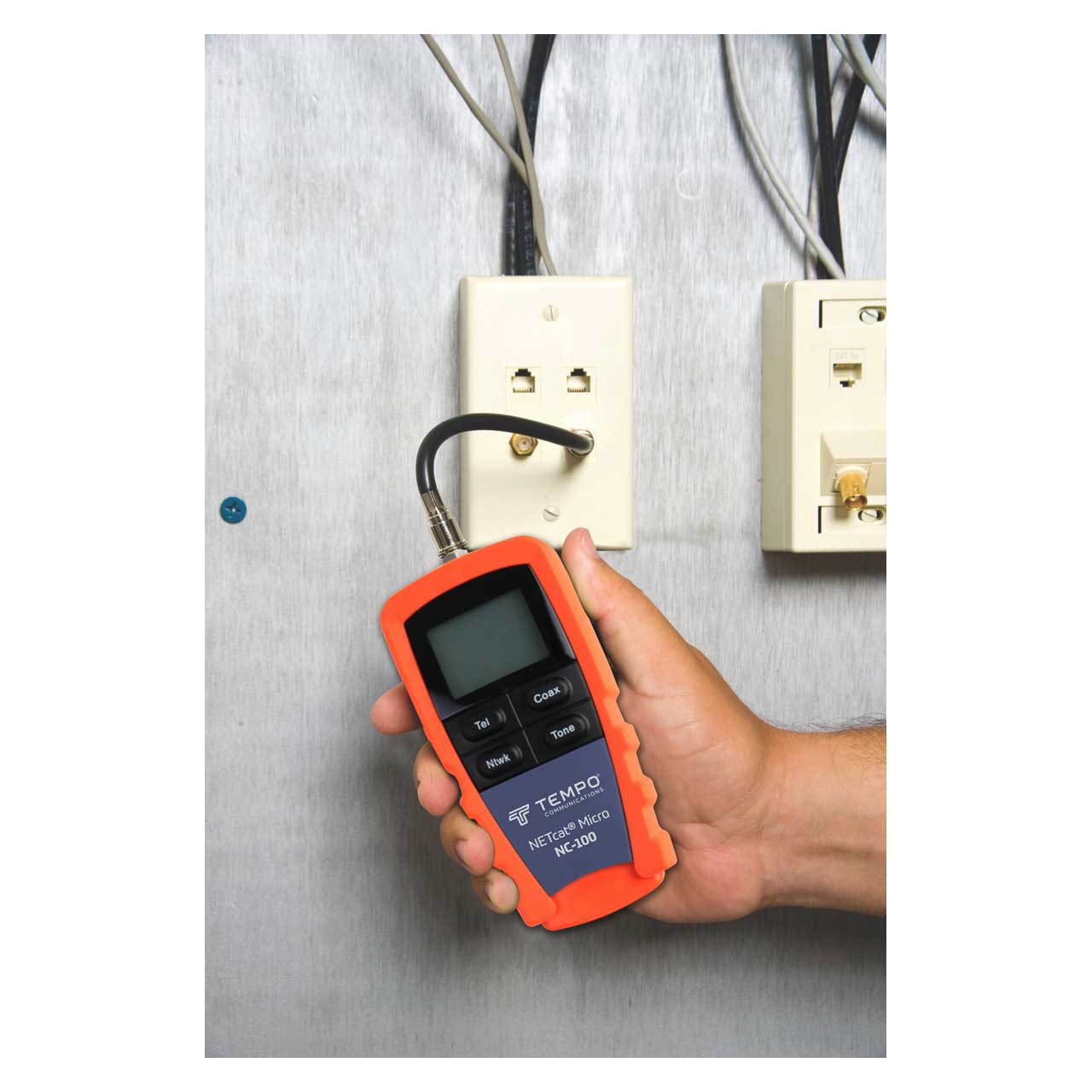

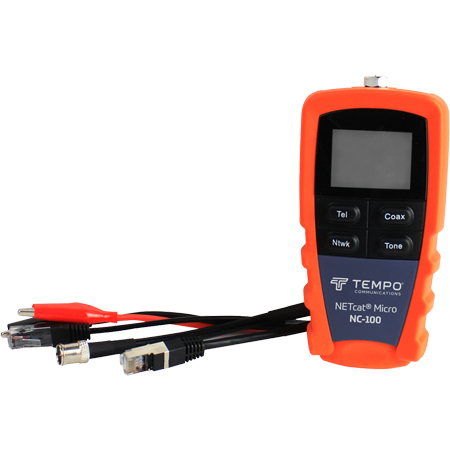

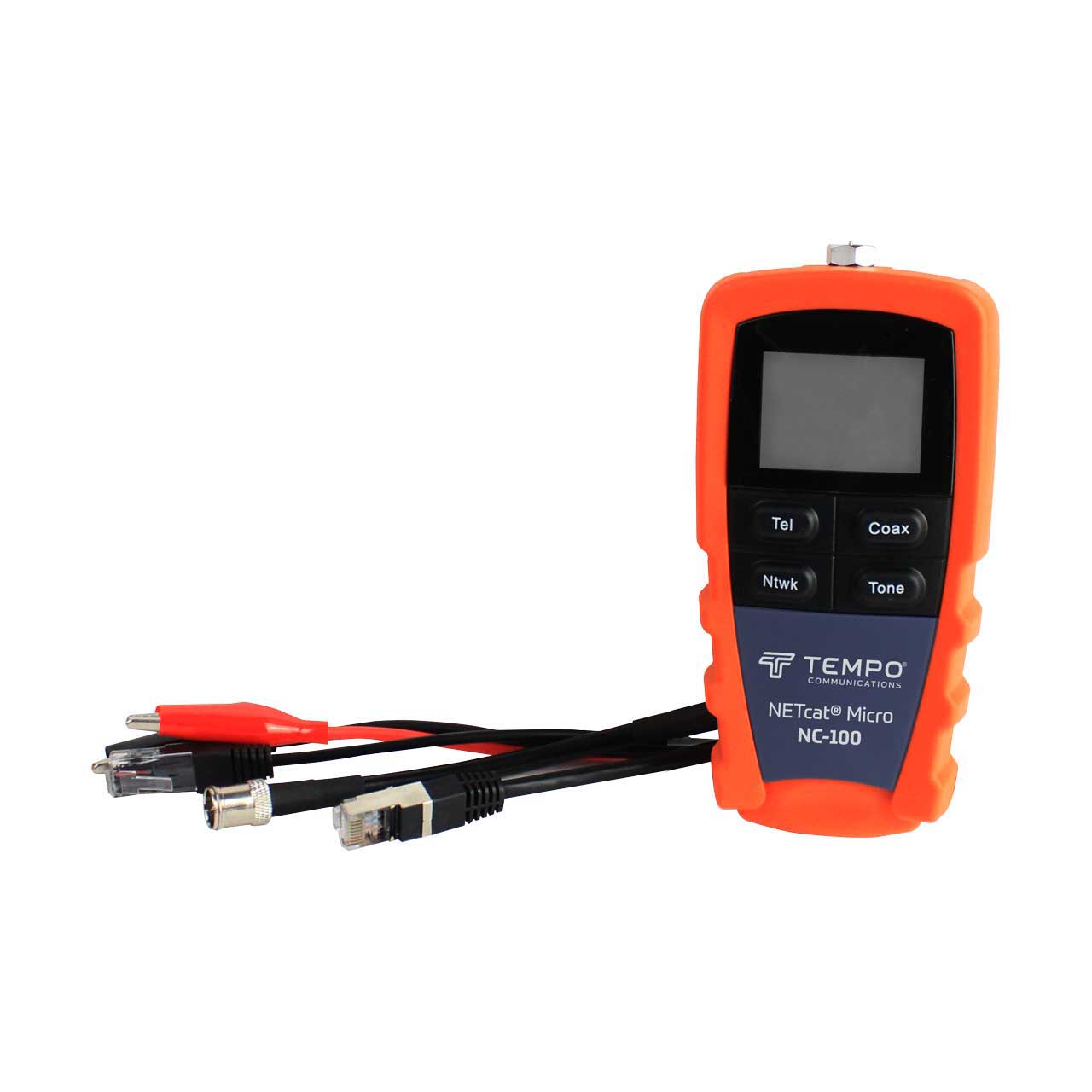

Tempo Communications NC-100 NETcat Micro Wiring Tester VDV (POP)

NC-100 - Overview

• Features:

  • Fast
  • Tests shielded twisted pair, unshielded twisted pair and coaxial cables


  • Accurate
    Generates three distinct, selectable digital tone patterns for cable tracing and troubleshoot


  • Reliable
    Detect shorts, opens, reversed polarity, cross and split pairs


• Specifications:

  • Backlight: LED
  • Battery: 9 V Alkaline Battery (PP3) (Not Included)
  • Buttons: Four Momentary Contact Push Button
  • Size: 33 x 70 x 150 mm
  • Display LCD: Icon And Seven Segment Type
  • Pair Tracing Frequencies: 577 Hz and 983 Hz
  • Humidity: 0 To 95 PCT Non-Condensing
  • Interface Connections: RJ45 Shielded Socket, RJ12 6-Way Socket, F-Type Threaded Female
    Coaxial Connectors
  • Minimum Split Cable Detectable: 2 m to 3 m (5 ft to 10 ft); depends on cable type
  • Three User Selectable Cadences: Alternating Frequencies Of 577 HZ And 983 HZ Are Produced
    At Three User Selectable Rates
  • Temperature Range: -10 to +60 °C (Storage); 0 to +50 °C (Operating)
