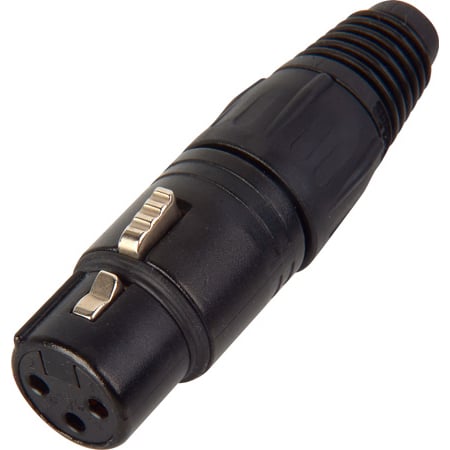

Neutrik NC3FX-B 3-Pin Female XLR Connector Cable End - Black & Gold

ITEM #: NC3FX-B MFG #: NC3FX-B

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$6.08

Our Price:

$5.21

Availability: In Stock
iAvailability Description Popup


    NC3FX-B - Overview

    Neutrik NC3FX-B 3 pole female cable connector with black metal housing and gold contacts.

    The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

    • Features:

      • Rugged zinc diecast shell, long lasting and durable
      • Chuck type strain relief system for secure clamping of cables
      • Boot with rubber gland gives high protection against bending stresses
      • Coloured rings and boots available for coding and marking
      • UL recognized components

    • Specifications:

      • Capacitance Between Contacts: ≤ 4 pF
      • Contact Resistance: ≤ 3 mΩ
      • Dielectric Strength: 1,5 kVdc
      • Insulation Resistance: > 10 GΩ (initial)
      • Rated Current Per Contact: 16 A
      • Rated Voltage: < 50 V
      • Cable O.D.: 3.5 - 8.0 mm
      • Insertion Force: ≤ 20 N
      • Withdrawal Force: ≤ 20 N
      • Lifetime: > 1000 mating cycles
      • Wiresize: max. 2.5 mm²
      • Wiresize: max. 14 AWG
      • Wiring: Solder contacts
      • Locking Device: Latch lock
      • Boot: Polyurethan
      • Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
      • Contacts: Bronze (CuSn8)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Locking Element: St3K32 (latch) / Ck 67 (spring)
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell Plating: Black chromium
      • Strain Relief: Polyacetal (POM)
      • Approvals: UL
      • Flammability: UL 94 HB
      • Standard Compliance: IEC 61076-2-103
      • Protection Class: IP 40
      • Solderability: Complies with IEC 68-2-20
      • Temperature Range: -30 °C to +80 °C

    • Item Includes:

      • 1x Neutrik NC3FX-B 3-Pin Female XLR Connector Cable End - Black & Gold

    • GTIN:

      7613187003035
