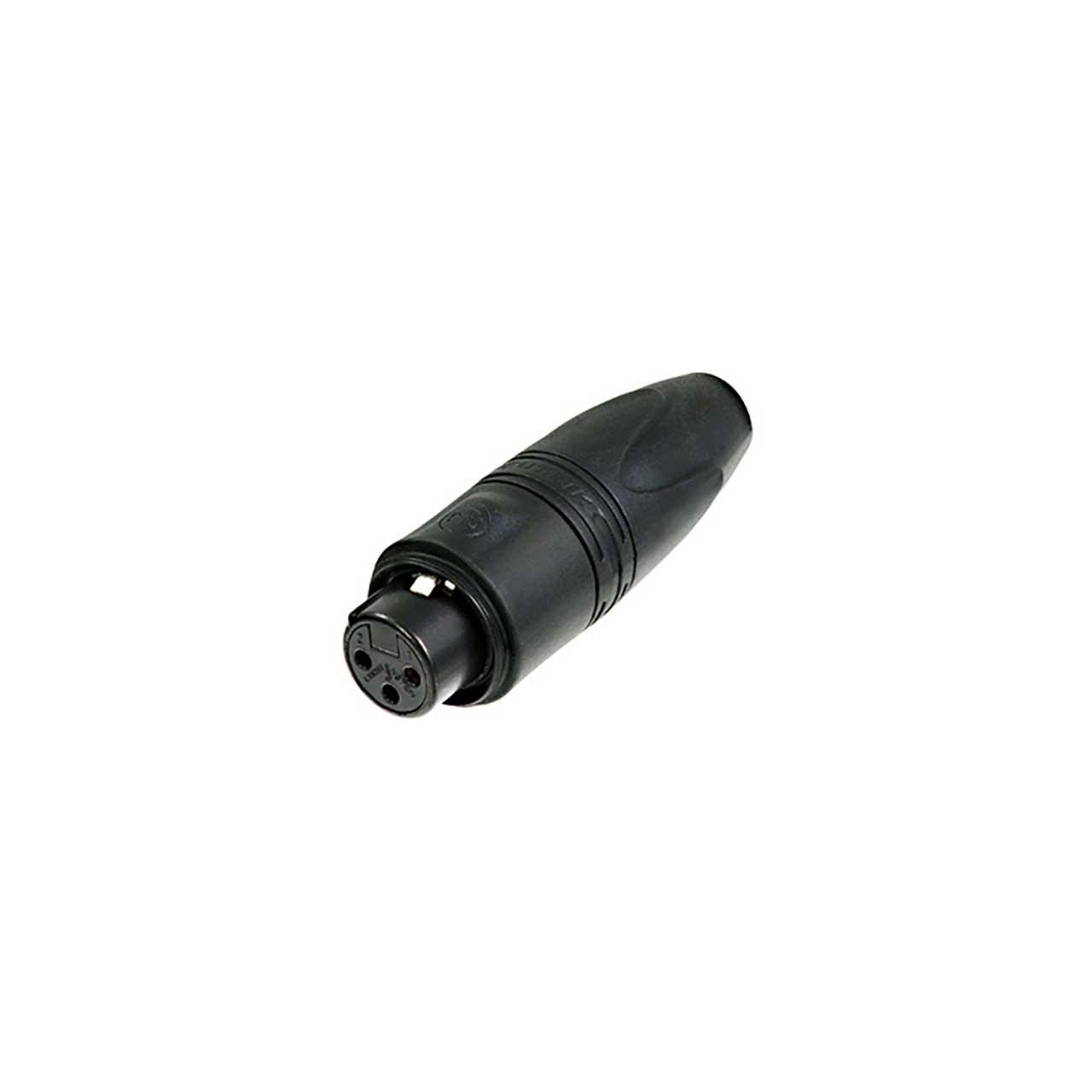

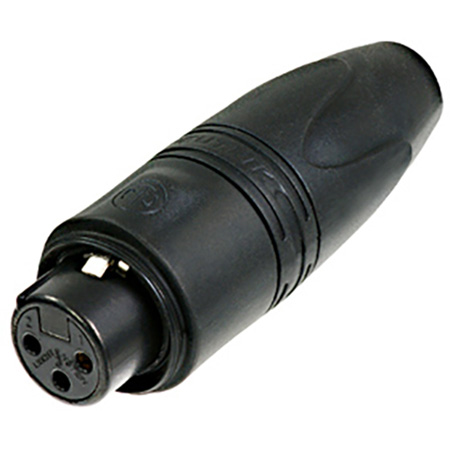

Neutrik NC3FXX-HD-B-D 3 Pole Female XLR Heavy Duty Connector (Black Housing) - 25 Pack

NC3FXX-HD-B-D - Overview

• Features:

  • Dust and Water Ingress Sealing: IP67 in combination with HD cable connector NC3MXX-HD; IP67 in combination with HD chassis connector NC3MPR-HD
  • Rubber sealing jacket protects against water ingress and Mechanical Shock
  • Gold Contacts


• Specifications:

  • Product
  • Title: NC3FXX-HD-B-D
  • Connection Type: XLR
  • Gender: female

    Electrical
  • Capacitance between contacts: ≤ 4 pF
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial), > 1 GΩ (after damp heat test)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V

    Mechanical
  • Cable O.D.: 6.0 - 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock

    Material
  • Boot: Polyurethan
  • Contact plating: 0.2 æm Au hard alloy over 2 æm Ni
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)
  • Sealing jacket: EPDM

    Environmental
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -22°F - 175°F (-30°C - 80°C)
