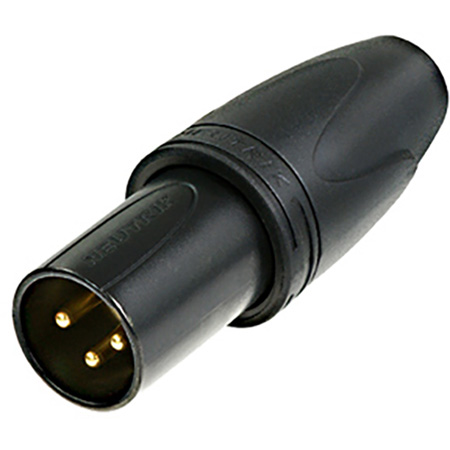

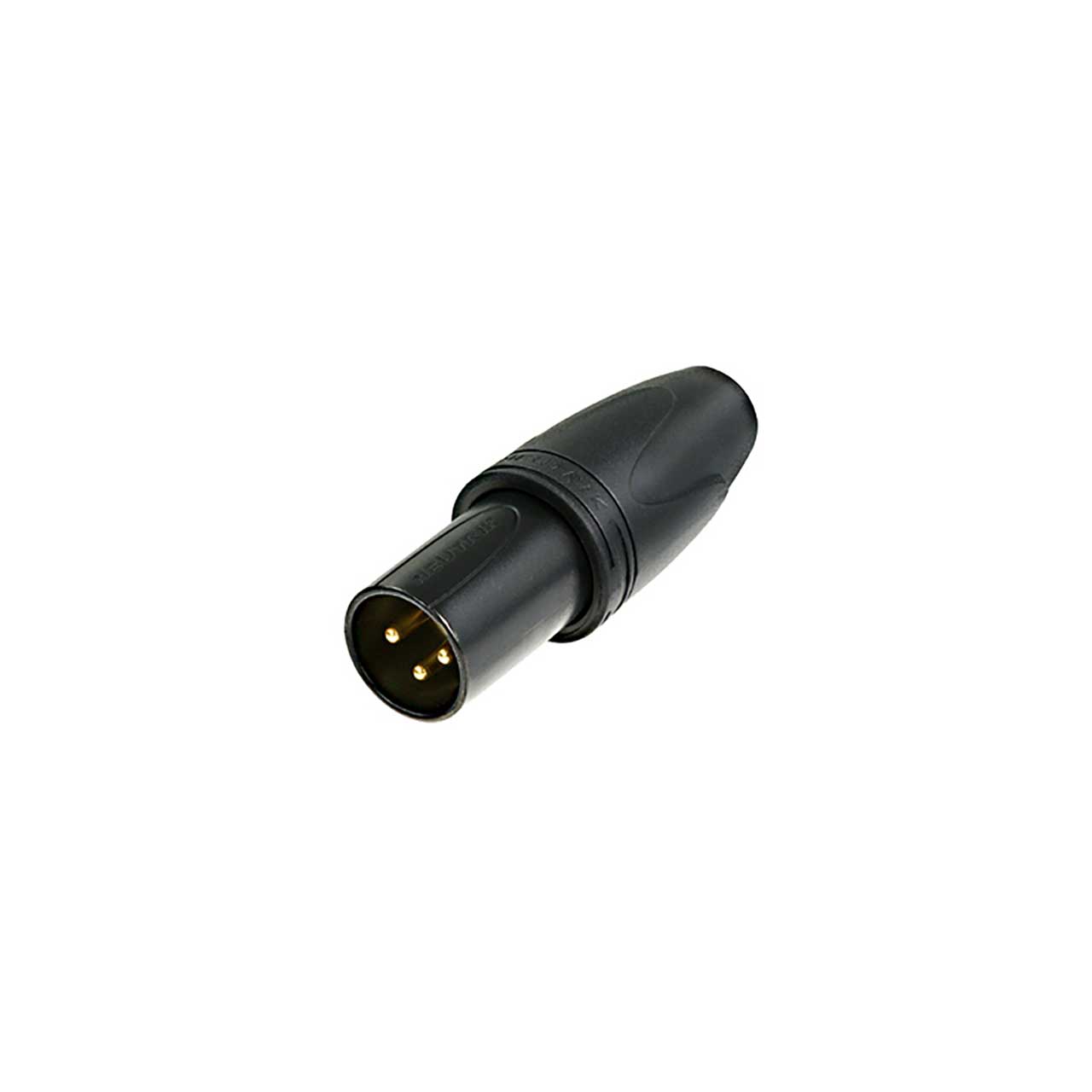

Neutrik NC3MXX-HD-B-D 3 Pole XLR-M Heavy Duty Cable End Black Housing - 25 Pack

NC3MXX-HD-B-D - Overview

• Features:

  • Dust and Water Ingress Sealing: IP67 in combination with HD cable connector NC3MXX-HD; IP67 in combination with HD chassis connector NC3MPR-HD
  • Rubber sealing jacket protects against water ingress and Mechanical Shock
  • Gold Contacts


• Specifications:

  • Product
  • Title: NC3MXX-HD-B-D
  • Connection Type: XLR
  • Gender: Male

    Electrical
  • Capacitance Between Contacts: ≤ 4 pF
  • Contact Resistance: ≤ 3 mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: > 10 GΩ (initial)
  • Rated Current per Contact: 16 A
  • Rated Voltage: < 50 V

    Mechanical
  • Cable O.D.: 6.0 - 8.0 mm
  • Insertion Force: ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG
  • Wiring: Solder contacts
  • Locking Device: Latch lock

    Material
  • Boot: Polyurethan
  • Contact Plating: 0.2 æm Au hard alloy over 2 æm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking Element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Black chromium
  • Strain Relief: Polyacetal (POM)
  • Sealing Jacket: EPDM

    Environmental
  • Flammability: UL 94 HB
  • Standard Compliance: IEC 61076-2-103
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -22°F - 175°F (-30°C - 80°C)
