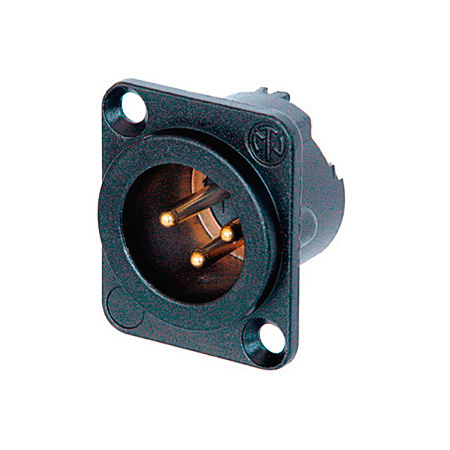

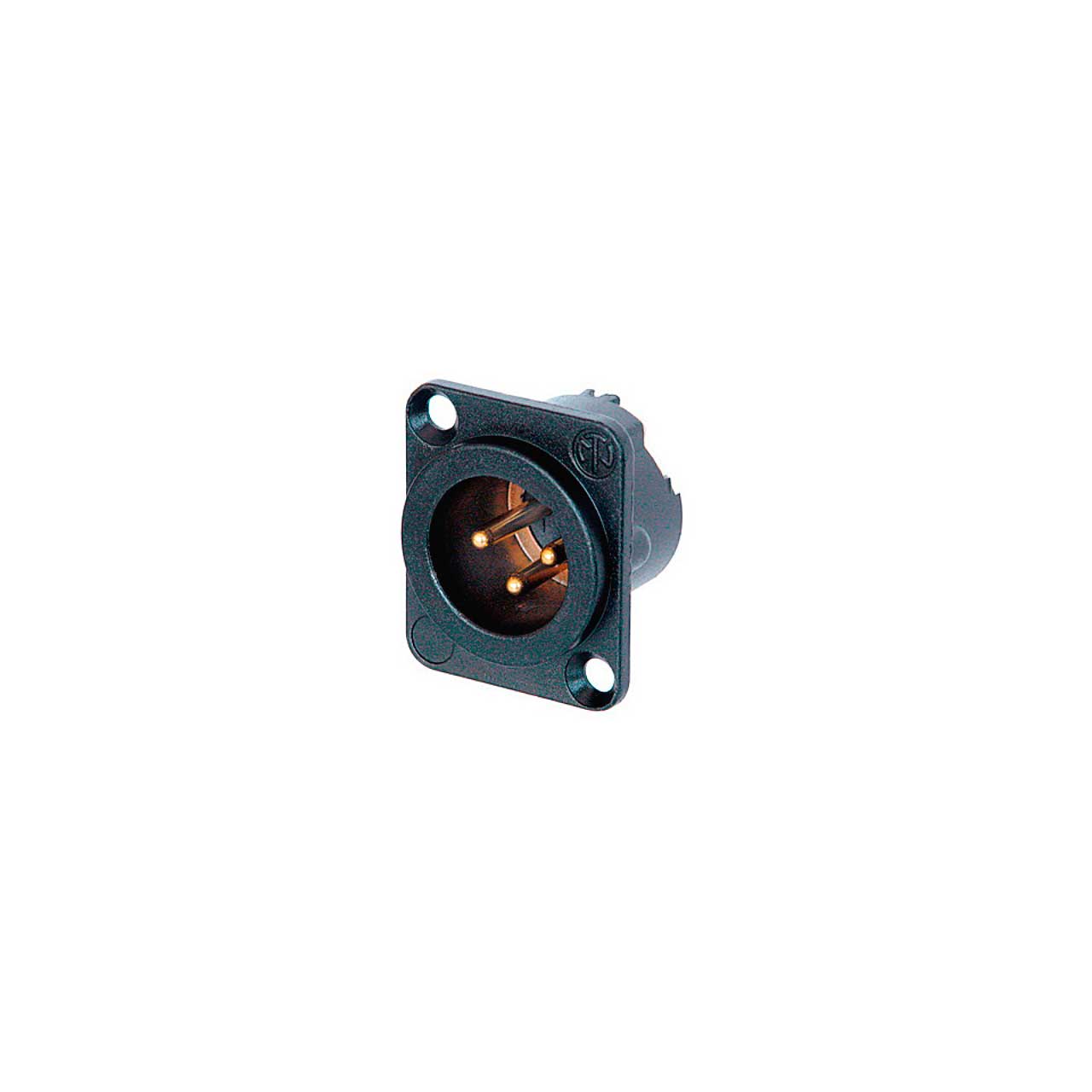

Neutrik NC3MD-LX-BAG 3-Pin Male XLR Panel/Chassis Mount Connector - Duplex Ground Contact - Black/Silver

NC3MD-LX-BAG - Overview

• Features:

  • All metal housing offers best overall RF protection and electromagnetic shielding New duplex ground contact for excellent contact integrity between chassis and cable connector Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact Male connector's retention bar replaces plastic design with all metal version improving pull-out force Female contact incorporates a solder barrier to prevent solder running into the contact mating area Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions


• Specifications:

  • Connection Type:XLR Gender: female Capacitance between contacts: ≤ 4 pF Contact resistance:≤ 5 mΩ (inner) Dielectric strength1,5 kVdc Insulation resistance> 2 GΩ (initial) Rated current per contact16 A Rated voltage50 V Insertion force≤ 20 N Withdrawal force≤ 20 N Lifetime> 1000 mating cycles Wire size max. 2.5 mm² Wire size max. 14 AWG Wiring Solder contacts Locking device Latch lock Mounting direction front & rear Chassis shapeD Contact plating2 µm Ag over 2 µm NiContactsBronze (CuSn6)InsertPolyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium FlammabilityUL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range-30 °C to +80 °C
