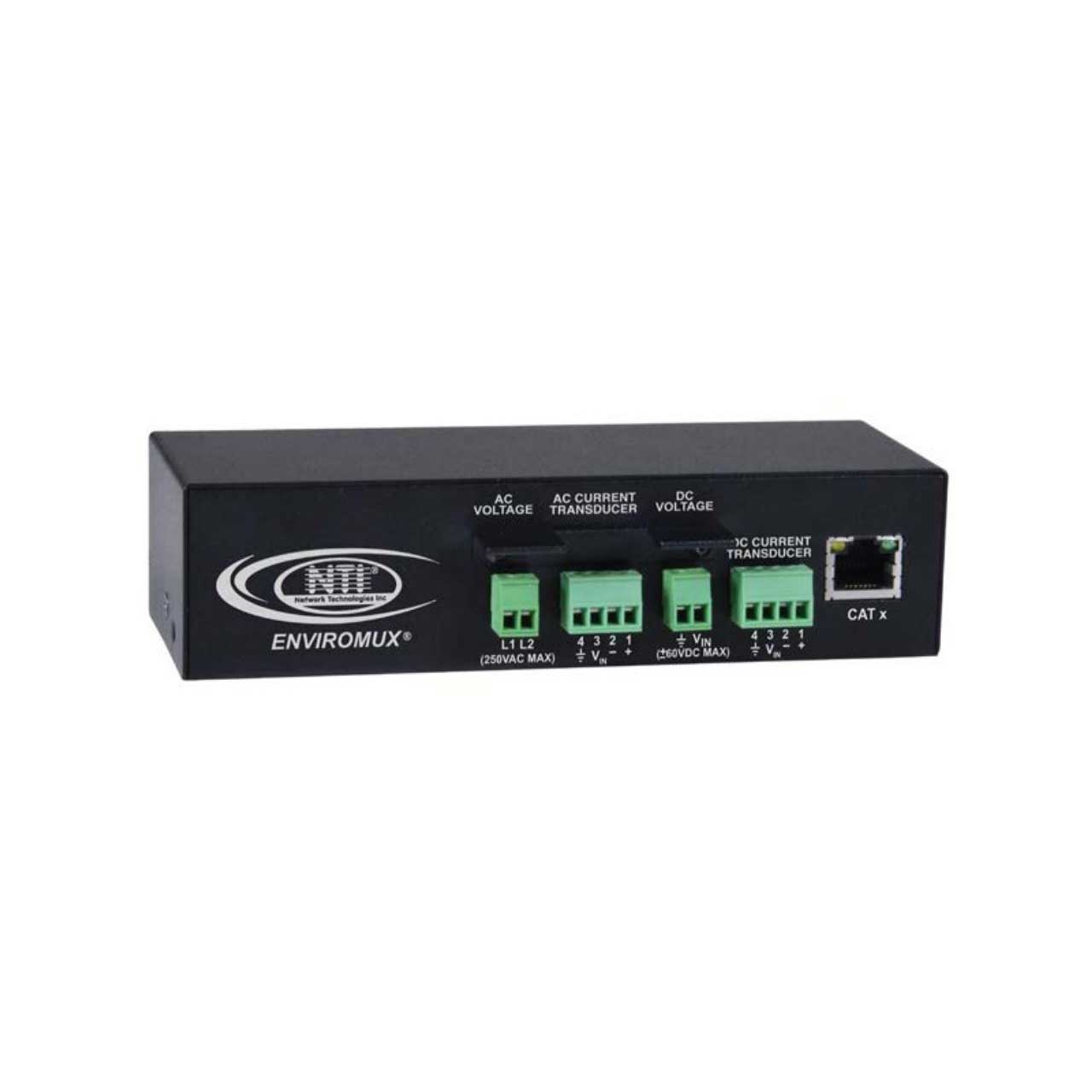

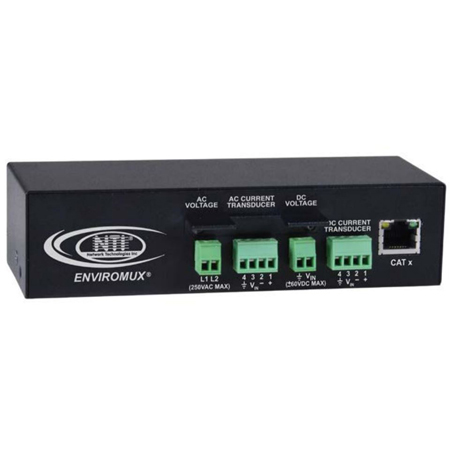

NTI E-ACDCLM AC & DC Voltage and Current Monitor monitors AC and DC voltage sources and current levels when connected to an E-16D, E-5D or E-2D Server Environment Monitoring System. The voltage sources can be anything with a range between -60 to +60VDC or 0-240VAC. Current measurements can be taken on AC and DC loads and with the use of hall effect sensors (sold separately) loads can be as much as 500A. When connected to a SYSTEM via 18-24AWG CAT5/5e/6 cable (up to 1,000 feet away), the voltage and/or current source(s) can be monitored and the SYSTEM can be configured to alert users as to variations in the voltage and current levels.
Note: The E-xD must be running firmware version 2.31 or later in order to use the E-ACDCLM with it. Refer to the E-xD manual for firmware upgrade instructions as needed.
