NTI ENVIROMUX-MICRO-T Micro Environment Monitoring System - Integrated Temperature Sensor

ITEM #: NETT-ENVIROMUXMT MFG #: ENVIROMUX-MICRO-T

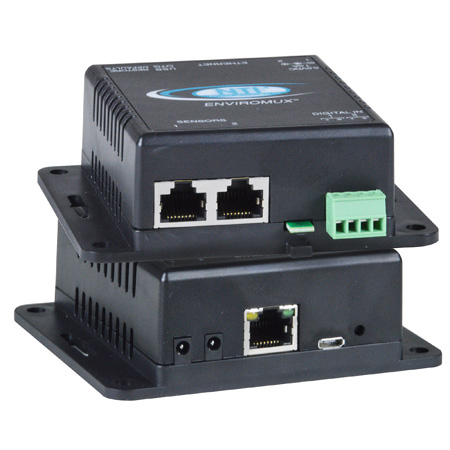

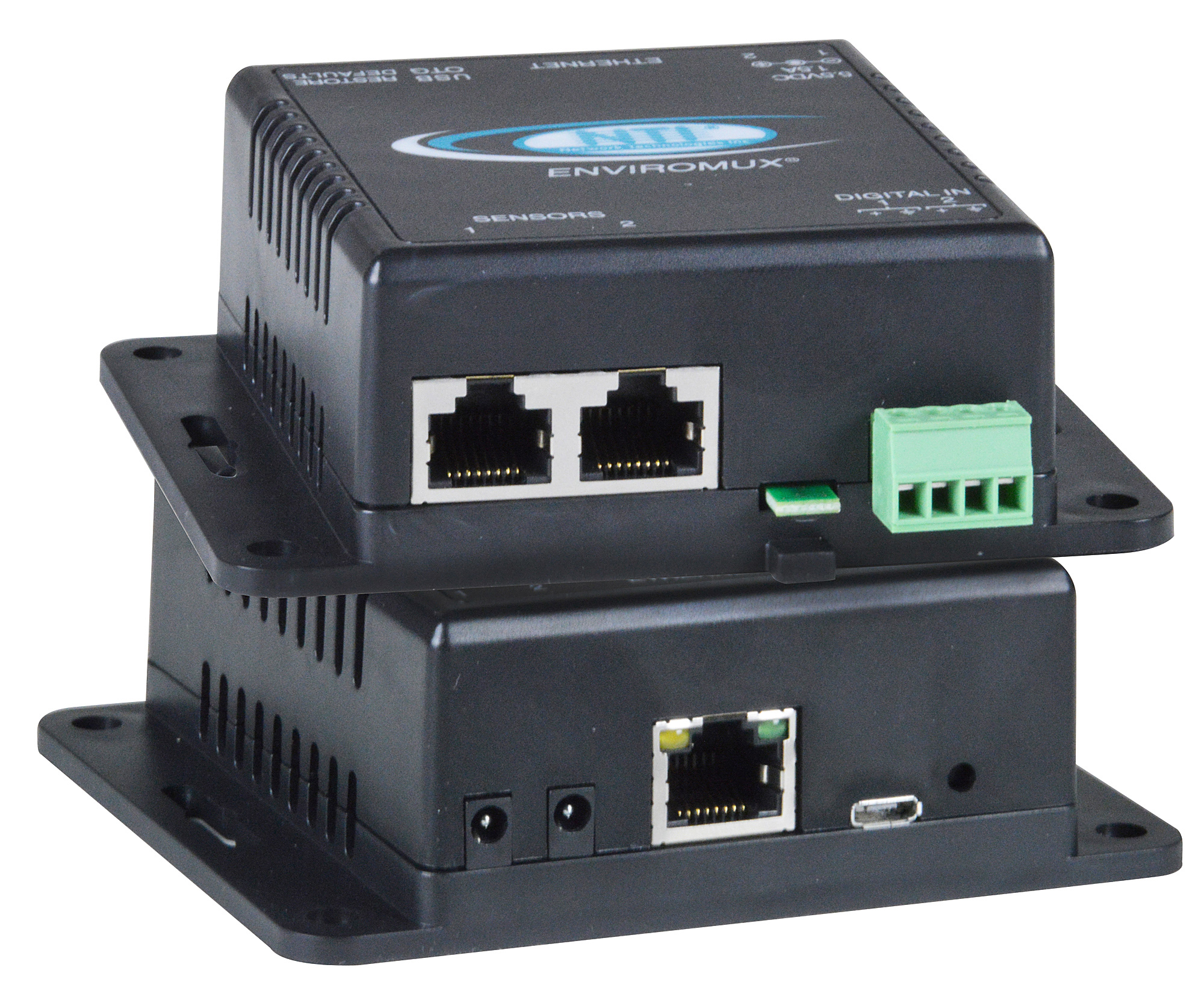

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NETT-ENVIROMUXMT

ENVIROMUX-MICRO-T - Overview

The ENVIROMUX Micro Environment Monitoring System monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via external USB 3G modem).

The system functions independently or as an IP-connected remote sensor for the ENVIROMUX-2D/5D/16D. The ENVIROMUX-MICRO-T features an integrated temperature sensor, two RJ45 sensor ports for external temperature/humidity sensors, and two dry contact inputs.

  • Features:

    • 1 integrated temperature sensor
    • 2 RJ45 ports for external temperature/humidity sensors
    • 2 digital inputs sensitive to contact closure
    • Dual DC power provides dual redundancy
    • Sensors are hot pluggable
    • Monitor (ping) up to 4 IP network devices & alerts are sent if devices are not responding
    • Create multiple alerts for any installed sensor
    • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert
    • Alerts are posted in message log, which is accessible through Web user interface
    • Automatically configures network settings received from a connected DHCP server
    • Supports 4 IP network video cameras for live view of any facility
    • Integrates with various Open Source SNMP monitoring packages -Nagios and MRTG
    • USB port for connecting USB modem
    • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors
    • Security: HTTPS, SSLv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights
    • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored

  • Specifications:

    • RJ45 Sensor Ports
    • Two RJ45 modular jacks for connecting temperature sensors or combined temperature/humidity sensors.
    • Three levels of user-defined alerts - normal, warning, critical.

      USB Port
    • One female Micro USB connector for connecting a USB Modem.

      Ethernet Port
    • One female RJ45 connector.
    • 10/100 Base-T Ethernet interface.
    • Integrated Temperature Sensor
    • Applications from -4°F to 167°F
    • Accuracy-
    • ±0.72°F at -14 to 167°F
    • ±0.9°F at -4 to 23°F
    • Resolution: 0.2°F

      Power
    • Dual DC power provides dual redundancy.
    • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
    • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
    • If both sources have exactly the same voltage, it will draw in part from each of them.
    • 110 to 240 VAC at 50 or 60 Hz via AC adapter.
    • Includes one country-specific AC adapter. The second AC adapter is sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 4W max.

      Environmental
    • Operating & Storage Temperature: -4°F to 167°F
    • Operating & Storage Relative Humidity: 0 to 90% non-condensing RH.
