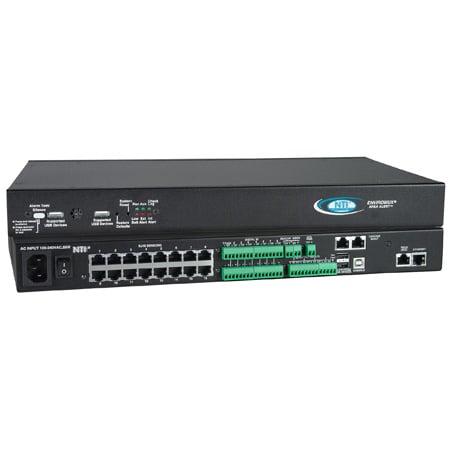

NTI ENVIROMUX-16D Large Enterprise Environment Monitoring System

ENVIROMUX-16D - Overview

• Features:

  • Sensors supported:
  • 16 external configurable sensors
  • 8 digital inputs sensitive to contact closure
  • 8 Remote Temperature/Humidity Sensors over IP
  • ENVIROMUX-MICRO-T: 1 integrated temperature sensor, 2 RJ45 ports for external temperature/humidity sensors, 2 digital inputs sensitive to contact closure, dual DC power (dual redundancy).
  • ENVIROMUX-MICRO-TRHP: 1 integrated temperature/humidity combination sensor, 2 RJ45 ports for external temperature/humidity sensors, 2 digital inputs sensitive to contact closure, built-in Power over Ethernet (POE), dual DC power (triple redundancy).
  • 3 internal sensors - temperature, humidity, power


  • Four output relays for control of external devices
  • Supports IP network video cameras for live view of any facility. Any programmed event can trigger a snapshot from an IP camera
  • Monitor (ping) up to 64 IP network devices
  • Linux inside
  • Available with optional small form-factor pluggable (SFP) port for connecting to a fiber optic network
  • Create multiple alerts for any installed sensor
  • Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts
  • Alerts are posted in message log, which is accessible through Web user interface
  • Automatically configures network settings received from a connected DHCP server
  • Integrates with various Open Source monitoring packages - Nagios and MRTG
  • USB ports for connecting USB modem or for downloading log data to USB flash drive
  • Internal battery backup
  • Up to five units can be connected via Ethernet connection or using CAT5 expansion cables to increase the number of sensors connected


• Specifications:

  • Power Port:
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included)
  • Power consumption: 35W
  • Connection for Earth Ground
  • Fuse protection


  • RJ45 Sensor Ports:
  • Sixteen RJ45 modular jacks for connecting NTI temperature, humidity, temperature/humidity, liquid detection, smoke detection, glass break, vibration and motion sensors


  • Digital Inputs:
  • Eight screw terminals pairs for connecting dry contact devices
  • Input voltage: 0VDC to +25VDC
  • Provides +12VDC, 50mA for terminals 1-7, and +12VDC, 650mA for terminal 8 only.
  • Fuse protection


  • Digital Outputs:
  • Four screw terminals pairs
  • Potential-free relay switch contacts
  • Normally open / normally closed connection points
  • Maximum switching load: 0.5A at 100VAC, 1A at 30VDC, 0.5A at 48VDC
  • Beacon Port
  • One screw terminal pair
  • Provides +12VDC, 180 mA to supply an alarm beacon.
  • Fuse protection


  • Siren Port:
  • One screw terminal pair
  • Provides +12VDC, 180 mA to supply a siren
  • Fuse protection


  • AUX Power:
  • One screw terminal pair
  • Provides 12VDC, 150mA


  • USB Device Ports:
  • Four female USB Type A connectors for connecting USB modem or for downloading log data to USB flash drive
  • Two USB ports on front panel and 2 on back panel
  • USB Console Port: One female USB Type B connector for connecting a PC for serial terminal access
  • RS232 (DCS) Port: One female RJ45 serial port for terminal access
  • Ethernet Port: One 10/100 Base-T Ethernet port with RJ45 Ethernet connector
  • Supports full- and half-duplex
  • RS232 AUX Port: One RJ45 port for connecting a serial GSM modem or a remote serially-controlled device


  • Cascade In/Out Ports:
  • Two RJ45 jacks
  • A maximum of 5 systems can be used in a cascaded configuration via RS485
  • Each slave unit needs its own unique RS485 address value that can range from 1-255
  • Use CAT5/5e/6 patch cables with RJ45 connectors wired straight through
  • Up to 4,000 feet between the master unit and the slave unit
  • The last slave must have a terminating plug (ENVIROMUX-TRMPLG, not included) in the empty socket


  • Protocols:
  • HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, LDAPv3, XOAUTH2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPV6, WAP 2.0
  • Support for XOAUTH2 provides higher security authentication for email accounts (e.g. Gmail)
  • Compatible with any SNMP management software
  • The unit can be polled via SNMP
  • Operates and configures via HTTP/HTTPS web page, Telnet, SSH, or USB/RJ45 serial interface


  • Internal Temperature Sensor:
  • Applications from 32 to 104°F (0 to 40°C)
  • Accurate to within +/-1.35°F (+/-0.75°C)


  • Internal Humidity Sensor:
  • Applications from 20% to 80% relative humidity at temperatures between 32 to 104°F (0 to 40°C)
  • Accurate to within +/-5% relative humidity


  • Internal Power Sensor:
  • Measures mains voltage: 0 to 255 VAC
  • Measures battery voltage: 0 to 20 VDC
  • Measures voltage on 24VDC models: 20 to 32VDC
  • Measures voltage on 48VDC models: 36 to 72VDC.
  • Alerts are sent when there is a power outage and when power returns


  • Back-up Battery:
  • Rechargeable sealed lead-acid battery
  • Battery removal/disposal instructions
  • Provides back-up for one hour


  • MTBF: 39,685 hours
  • Dimensions WxDxH: Without supplied rackmount kit: 16.19x10.01x1.75", With supplied rackmount kit: 19x10.01x1.75"
  • Weight: 9.5 lb (4.31 kg)


  • Environmental:
  • Operating temperature: 32 to 104°F (0 to 40°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating /Storage Relative Humidity: 17 to 90% non-condensing RH
  • Regulatory Approvals: CE, RoHS, TAA compliant


• Item Includes:

  • 1x ENVIROMUX-16D Large Enterprise Environment Monitoring System.
  • 1x country-specific power cord
  • 1x 2-meter USB 2.0 male type-A to male type B transparent cable
  • 1x DB9 female to RJ45 female adapter
  • 1x DB9 male to RJ45 female adapter
  • 1x 5-ft RJ45 to RJ45 CAT5 super flat patch cable
  • 1x rack mount kit
  • 1x CD that contains the manual, Quick Start Guide, an SNMP MIB file, and the NTI Discovery Tool


• Warranty:

  • 2 years
