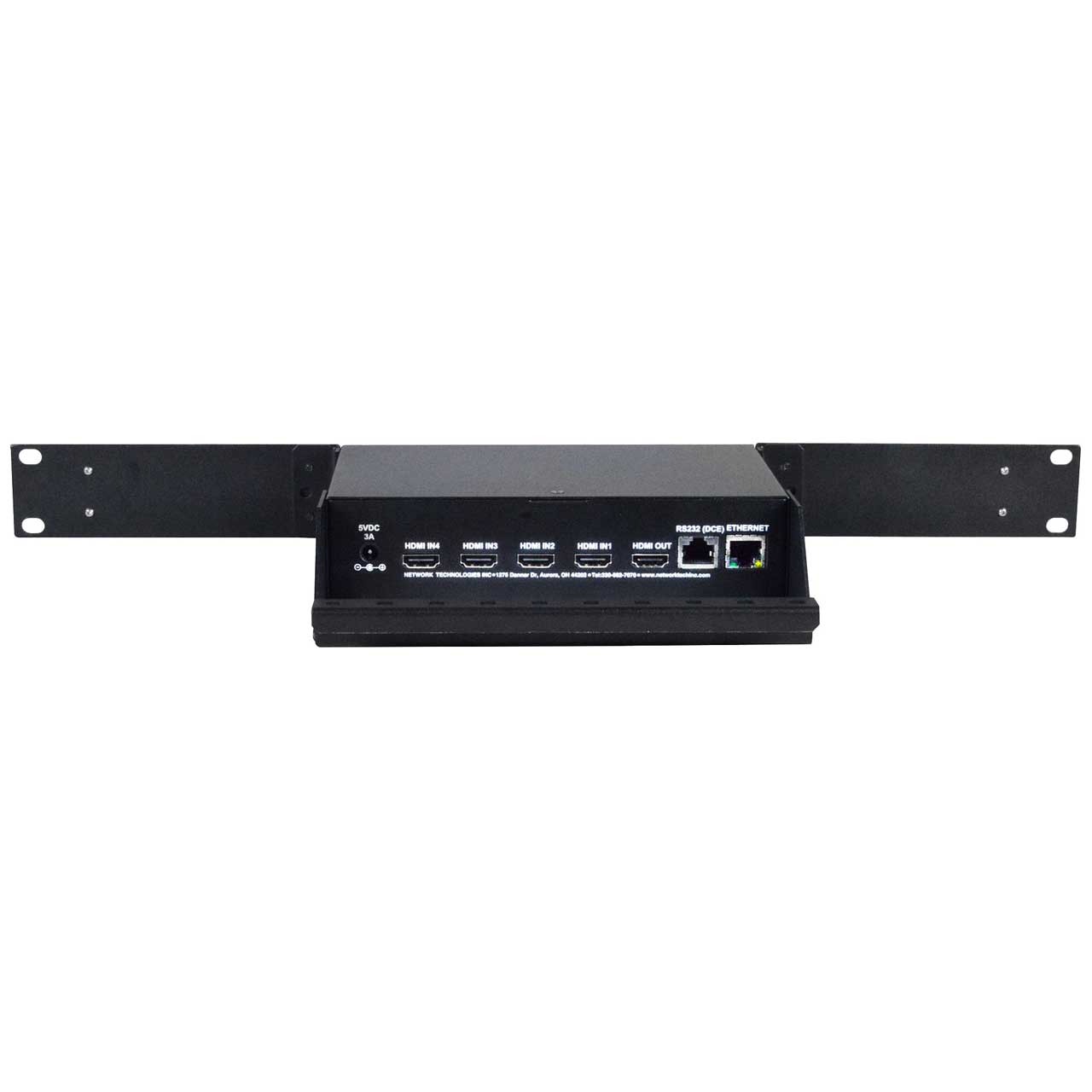

NTI SPLITMUX-HD-4RT-R HDMI Quad Screen Multiviewer - 1RU Rackmount

SPLITMUX-HD-4RT-R - Overview

• Features:

  • Quad, Picture in Picture, Full Screen, and Custom display modes (Custom Display Mode: the size, position and selection of any or all windows are customizable)
  • 2- and 3-source viewing is possible with this method
  • Maintain input aspect ratio if desired-no stretching necessary
  • Layer display windows and adjust transparency of each video source display
  • Independent video in to video out resolution
  • Supports 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200


  • HDMI features supported:
  • Inputs: 24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr
  • Outputs: 24- and 30-bit sRGB
  • Four-channel non-mixing or one channel mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio
  • Bandwidth up to 165 MHz
  • Inputs: 2.25 Gbps
  • Output: 2.0625 Gbps


  • HDCP compliant.
  • Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants
  • Zoom, pan, and crop the image from any source to focus on key areas
  • Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active)
  • Multiple audio sources can be simultaneously active in any display mode or preset layout
  • Adjustable audio gain with VU level indicators for each input channel
  • A customized text label can be added for each video window to provide easy input identification (UMD)
  • Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included)
  • Control the multiviewer through Ethernet, RS232 serial port, on screen display (OSD), front panel buttons, or IR remote
  • Cascade multiviewers to display video from any number of video sources on one screen
  • Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings
  • Backup and restore multiviewer configurations
  • Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor's EDID
  • 1RU rackmount unit
  • Mounted so that the front panel buttons are facing the front or back of the rack
  • Includes cable management shelf


• Specifications:

  • Video Input
  • Four female HDMI connectors.
  • Supported video input resolutions:
  • 2K Cinema (2048x1080 @ 60Hz).
  • HDTV resolutions to 1080p.
  • Computer resolutions to 1920x1200.
  • Supports digital HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
  • Multiplatform support: Windows 2000/XP/Vista/7/8, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • A DVI source can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the multiviewer.


  • Video Output
  • One female HDMI connector.
  • Supported video output resolutions:
  • 2K Cinema (2048x1080 @ 60Hz).
  • HDTV resolutions to 1080p.
  • Computer resolutions to 1920x1200.
  • HDMI-embedded audio switching (four-channel stereo, non-mixing or one-channel stereo, mixing).
  • A DVI display can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the display.


  • Protocols
  • HTTP, HTTPS.
  • TCP/IP, DHCP, UDP, ARP.
  • IPV4.


  • Power
  • 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
  • Power consumption: 10W


  • Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and storage relative humidity: 17 to 90% non-condensing RH.
  • Dimensions WxDxH (in):
  • Without rackmount kit: 7.35x4.98x1.75 (187x126x45 mm).
  • With rackmount kit: 19x4.98x1.75 (483x126x45 mm) (excludes cable tray).
  • Can be mounted so that the front panel buttons are facing the front or back of the rack.
  • Includes cable management tray.
  • Adds 3.37" to the depth.
  • Regulatory Approval: CE, RoHS, TAA compliant.


• Item Includes:

  • 1x SPLITMUX-HD-4RT-R multiviewer
  • 1x country-specific power cord
  • 1x DB9 female to RJ45 female adapter
  • 1x 5-ft CAT5e super flat patch cable
  • 1x IR remote control with two AAA batteries
  • 1x CD that contains the manual and NTI Discovery Tool
  • 2x ear brackets
  • 2x long rack ears
  • 1x cable tray
  • 12x flat head screws


• Warranty:

  • 2 years
