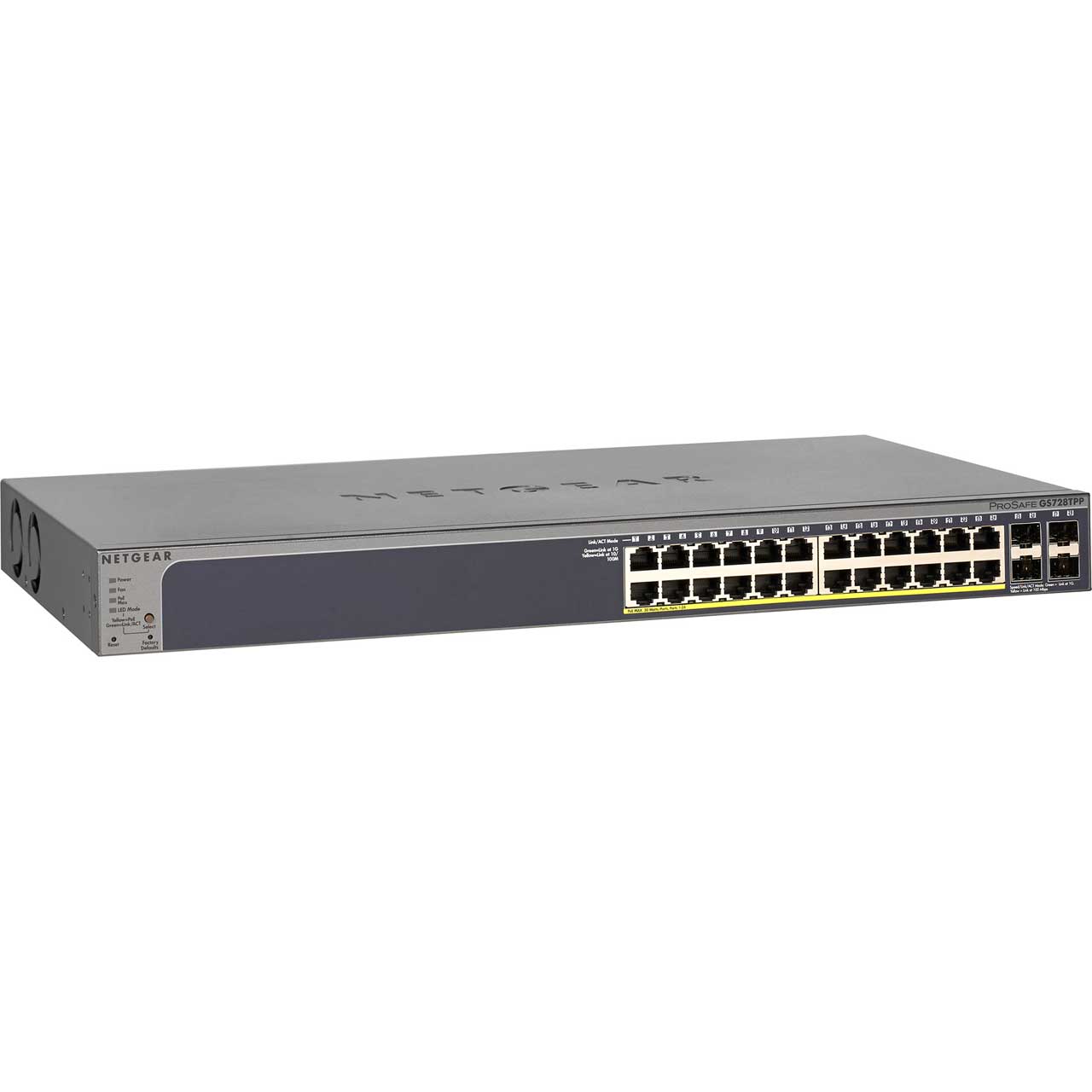

Netgear GS728TP-200NAS 24 Port GbE PoE - Smart Mngd Pro Switch 4 SFP 190W (GS728TPv2)

ITEM #: NG-GS728TP200NAS MFG #: GS728TP-200NAS

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NG-GS728TP200NAS

GS728TP-200NAS - Overview

Netgear GS728TP-200NAS is a Gigabit Smart Managed Pro Switches offer 190W PoE budget across 24 and 4 dedicated SFP ports for Wireless converged networks, IP surveillance and Video-over-IP deployments. Advanced features such as IPv4/IPv6 Layer 3 static routing, DiffServ QoS, LACP bonding and Spanning Tree will satisfy even the most advanced small and medium business networks.

  • Features:

    • Setup and configure with easy-to-use web-browser based interface
    • Power-Over-Ethernet- 24 Gigabit PoE+ ports (802.3af and 802.3at) providing up to 30w per port with 190w total PoE power budget
    • Feature-Rich And Secure- Advanced Smart features include Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN routing,Private VLANs and MVR
    • Comprehensive Layer2 Networking- VLAN,QoS,IGMP Snooping,Rate limiting,LACP Link aggregation,STP,SNMP,and ACL
    • ProSAFE Lifetime Protection

  • Specifications:

    • Capacity
    • Type: ACL
    • Value: 100
    • Type: ARP entries
    • Value: 512
    • Type: IGMP multicast groups
    • Type: IPv4 routes (static)
    • Value: 32
    • Type: IPv6 routes (static)
    • Type: VLANs supported
    • Value: 256

      Dimensions & Weight
    • Depth: 10.1"
    • Height: 1.7"
    • Width: 17.3"
    • Weight: 8.33 lbs

      Environmental Parameters
    • Humidity Range Operating: 90% (non-condensing)
    • Humidity Range Storage: 95% (non-condensing)
    • Max Operating Temperature: 122°F
    • Max Storage Temperature: 158°F
    • Min Operating Temperature: 32°F
    • Min Storage Temperature: -4°F

      Flash Memory
    • Installed Size: 32 MB

      Header
    • Brand: NETGEAR
    • Country Kits: Americas
    • Edition: V2
    • Manufacturer: NETGEAR
    • Model: GS728TP
    • Packaged Quantity: 1
    • Product Line: NETGEAR

      Interface Provided
    • Comments: PoE+
    • Connector Type: RJ-45
    • Qty: 24
    • Type: 10/100/1000 Base-T
    • Connector Type: SFP
    • Qty: 4
    • Type: 1000Base-X
    • Qty: 1
    • Type: USB

      Miscellaneous
    • Authentication Method: RADIUS, TACACS+
    • Color Category: Blue, Gray
    • Compliant Standards: AN/NZS 60950.1:2015, ANSI C63.4-2014, AS/NZS CISPR22:2009+A1:2010 Class A, C-Tick Class A, CB, CCC, CSA 22.2 No. 950, EN 55022/CISPR 22 Class A, EN 60950, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, EN55024, FCC CFR47 Part 15 B Class A, FCC Part 15 A, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, IEC 950, VCCI Class A
    • Encryption Algorithm: TLS
    • MTBF: 1,250,365 hours
    • Rack Mounting Kit: Included

      Networking
    • Advanced Switching: Layer 3
    • Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • Features: 1.5MB packet buffer, 2 fans, Auto VoIP, Broadcast Storm Control, Cable test, Denial of Service (DoS) protection, DHCP client, DHCP relay, DHCP snooping, DHCP support, DiffServ Code Point (DSCP) support, DiffServ support, Dynamic ARP Inspection (DAI), GARP VLAN Registration Protocol (GVRP), Generic Attribute Registration Protocol (GARP), Guest VLAN, ICMP Router Discovery Protocol (IRDP), IGMP querier, IGMP snooping, Link Aggregation Control Protocol (LACP), MAC lockdown, MLD snooping, Multicast Storm Control, Multicast VLAN Registration (MVR), Port mirroring, Private VLAN, Quality of Service (QoS), SNTP support, Store and forward, Syslog support, Type of Service (ToS), Unicast Storm Control, Voice VLAN, Weighted Round Robin (WRR)
    • Form Factor: Rack-mountable
    • Jumbo Frame Support: 10KB
    • MAC Address Table Size: 16K entries
    • Manageable: Yes
    • PoE Budget: 190 W
    • Ports Qty: 24
    • Power Over Ethernet (PoE): PoE+
    • Remote Management Protocol: HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, TFTP
    • Routing Protocol: Static IP routing
    • Smart: Yes
    • Status Indicators: Link/activity, PoE, Port transmission speed
    • Subcategory: Network hubs and switches
    • Subtype: Gigabit Ethernet
    • Type: Switch

      Performance
    • Type: Forwarding performance (64-byte packet size)
    • Value: 41.67 Mpps
    • Type: Switch fabric speed
    • Value: 56 Gbps

      Ports
    • Qty: 24
    • Type: 10/100/1000 (PoE+)
    • Ports (2nd)
    • Qty: 4
    • Type: Gigabit SFP

      Power Device
    • Frequency Required: 50/60 Hz
    • Installed Qty: 1
    • Nominal Voltage: AC 120/230 V
    • Type: Internal power supply

      Processor
    • Clock Speed: 700 MHz
    • Installed Qty: 1

      RAM
    • Installed Size: 128 MB

  • GTIN:

    0606449131611
