Neutrik NJ3FP6P-BAG 1/4 Panel Mount with Plastic Shell - Black Plastic Housing / Silver Contacts

ITEM #: NJ3FP6C-P MFG #: NJ3FP6C-P

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$7.00

Our Price:

$6.00

Availability: In Stock
iAvailability Description Popup


NJ3FP6C-P - Overview

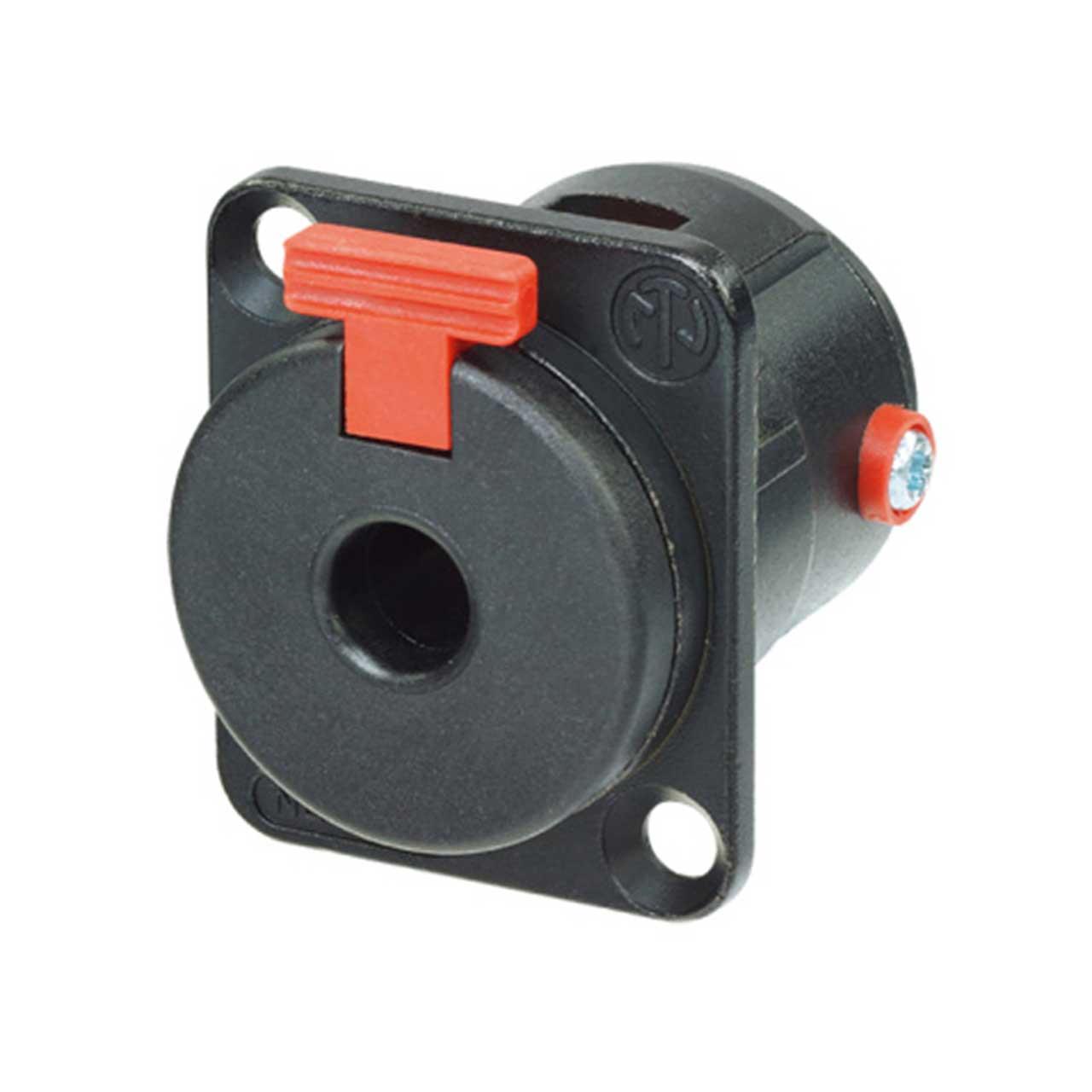

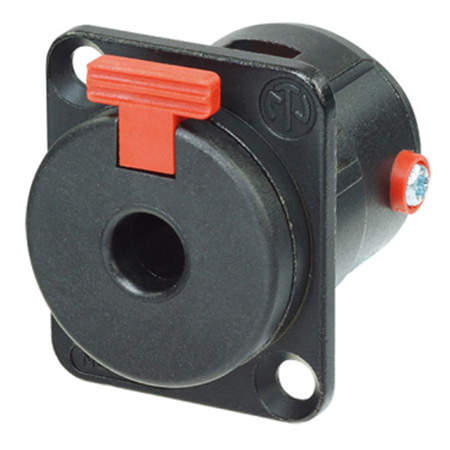

The NJ3FP6C is a locking 1/4" phone jack, D-size shell, black plastic housing and silver contacts. The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.

  • Features:

    • Securely locking chassis jack
    • Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
    • Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
    • Dimensionally compatible with D Series (31 x 26 mm)
    • Solder terminals

  • Specifications:

    • Contact resistance: < 6 mΩ (initial)
    • Dielectric strength: 1 kVdc
    • Insulation resistance: ≤ 1 GO @ 500 V dc
    • Rated current per contact: 10 A
    • Insertion force: < 30 N
    • Withdrawal force: < 20 N
    • Lifetime: > 10000 mating cycles
    • Locking force: > 80 N
    • Wiresize: 1 mm
    • Wiresize: 18 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
    • Mounting direction: Front mounting
    • Chassis shape: D
    • Contact plating: 2 µm Ag
    • Contacts: Brass (CuZn37) (Ground)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Black
    • Strain relief: Polyacetal (POM)
    • Standard compliance: EIA RS 453, IEC 60603-11
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -25 °C to +70 °C
