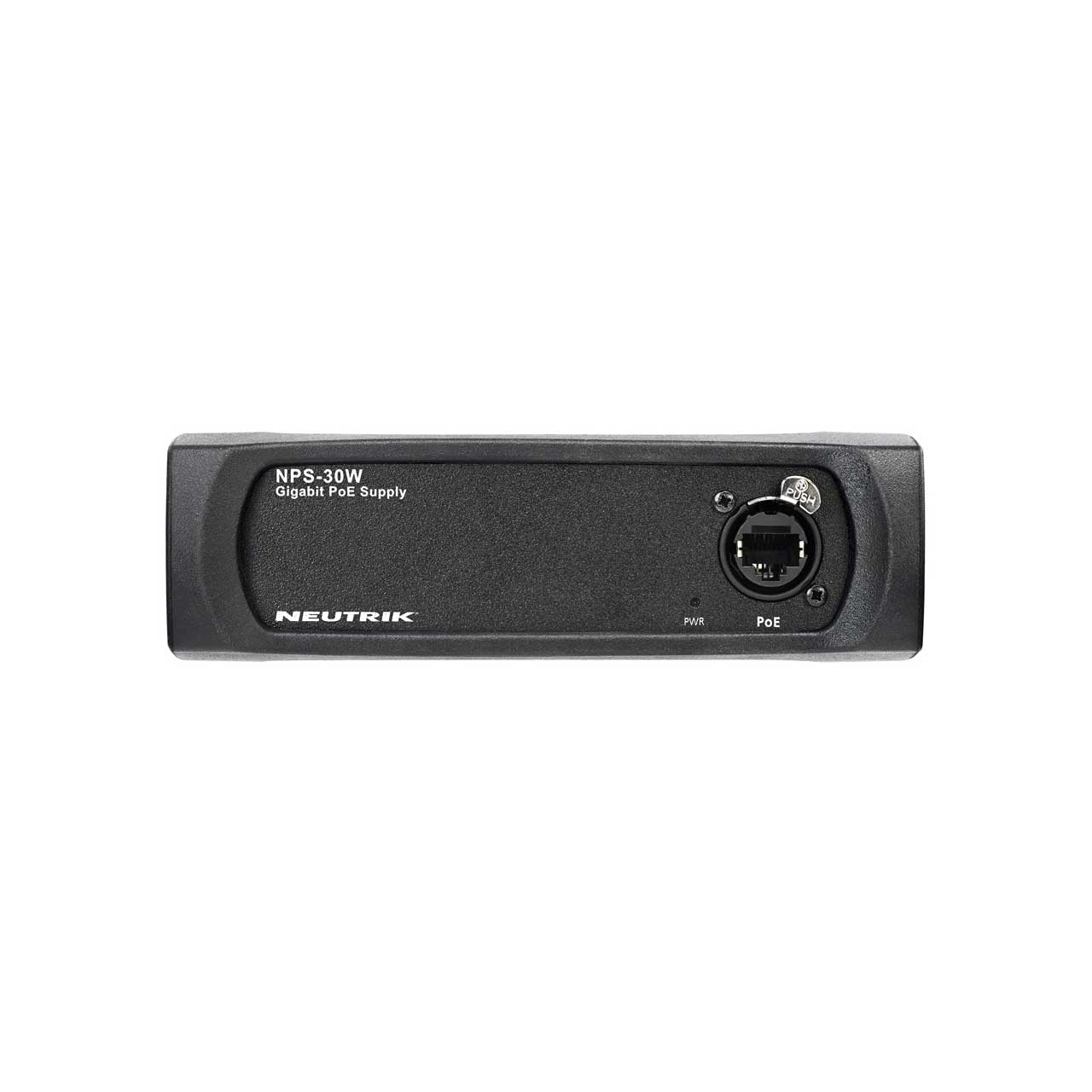

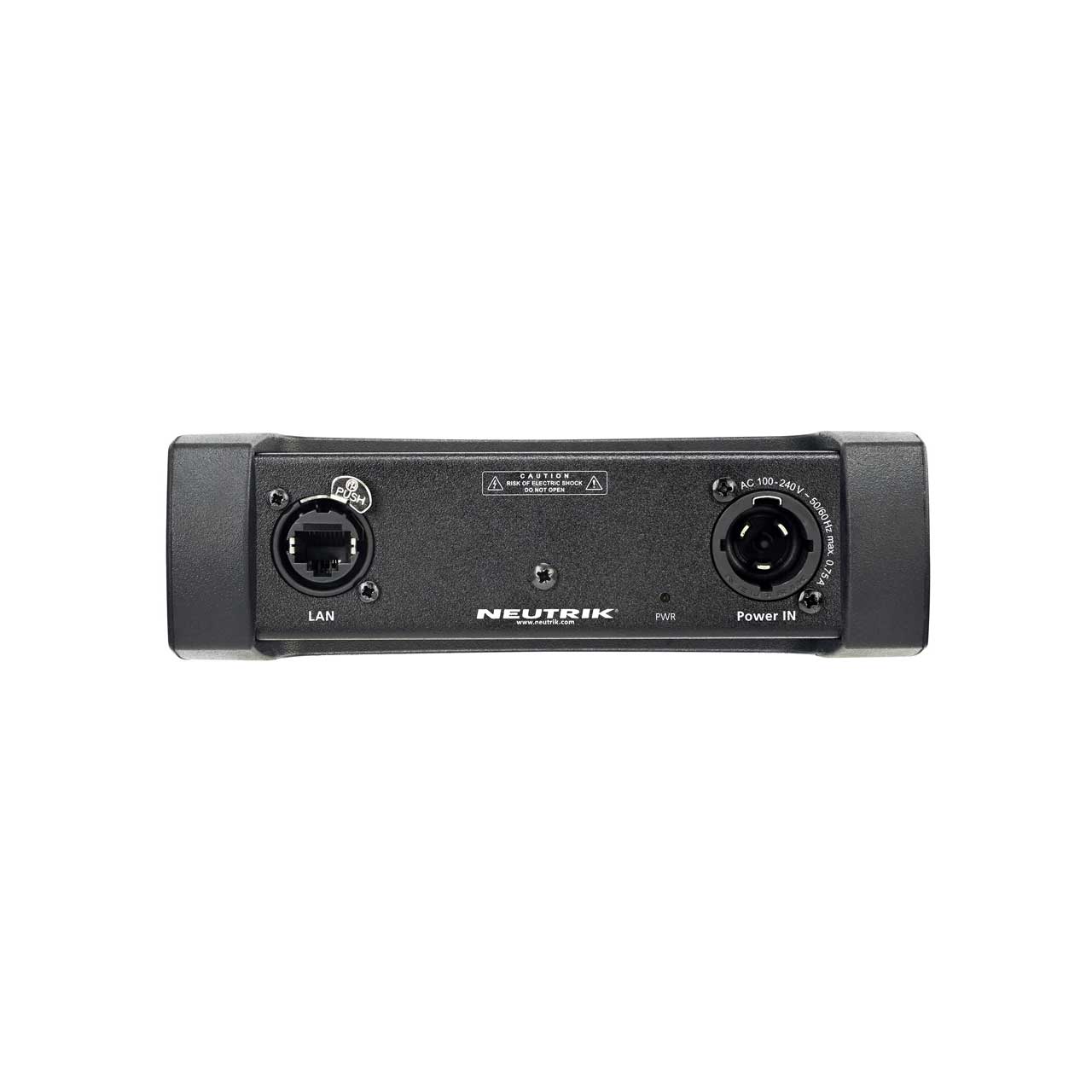

Neutrik NPS-30W-B PoE Injector - Rugged powerCON TRUE1 TOP & etherCON Connectors ( powerCON Cable included)

ITEM #: NPS-30W-B MFG #: NPS-30W-B

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NPS-30W-B

NPS-30W-B - Overview

The NPS-30W is Neutrik's answer to increasing demand for PoE injectors. It is the world's first PoE injector made for harsh stage conditions, with lockable power and network connectors. NPS-30W is a convenient companion for any PoE application, not just Neutrik's network products.

Used for the unpowered data transmission between Gigabit PoE Supply and a network device.

Note:
Do not combine NPS-30W Gigabit PoE Supply with other PoE Supplies, as this can cause a
damage to the powered device due to different pin assignment.
When using 2 NPS-30W PoE Supplies, do not use cables with different connection standards (TIA568A vs TIA568B). Never use Ethernet Cross-cables within PoE connections.

  • Features:

    • Perfect use with Neutrik network devices, such as the NA2-IO-DPRO, etc.
    • For use with any other network device, that requires PoE supply
    • Lockable power and network connectors
    • Heavy duty PoE supply for rugged stage conditions
    • 30 W PoE budget
    • 1 Gbps speed
    • 48 V DC power output
    • Different mounting options (rack, truss, floorbox, table mounting)


  • Specifications:

    • Input Voltage Range: 100 - 240 VAC
    • Input Frequency Range: 50 - 60 Hz
    • Input Max. Current: 0.75 A
    • Output Voltage: 48 VDC
    • Output Max. Current: 0.63 A
    • Rated Power: 30 W
    • Weight: 0.53 kg / 1.17 lbs
    • Dimensions (with rubber protection): 6.4 inches x 3.2 inches x 2.0 inches
    • Dimensions (without rubber protection): 5.9 inches x 2.6 inches x 1.6 inches
    • Operating Environment: Indoor
    • Operating Temperature: -5°C to +50°C
    • Storage Temperature: -40°C to +150°C


  • Item Includes:

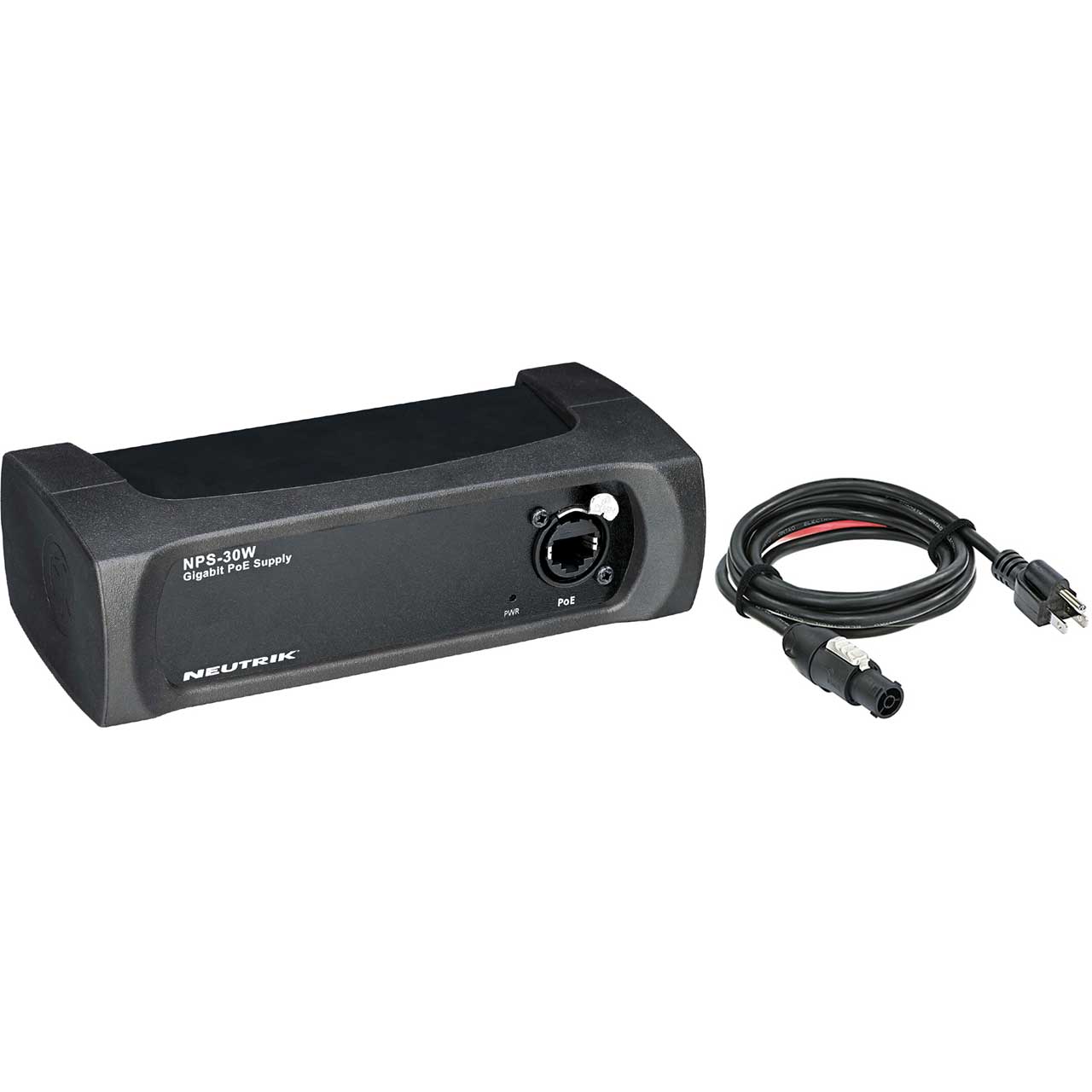

    • 1x Neutrik NPS-30W-B PoE Injector
    • 1x 3 meter cable with powerCON TRUE1 TOP and NEMA 5-15P connectors
