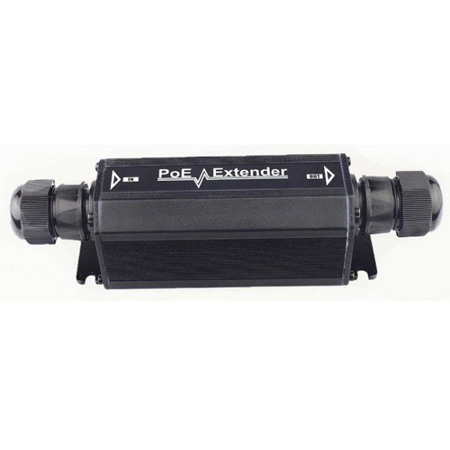

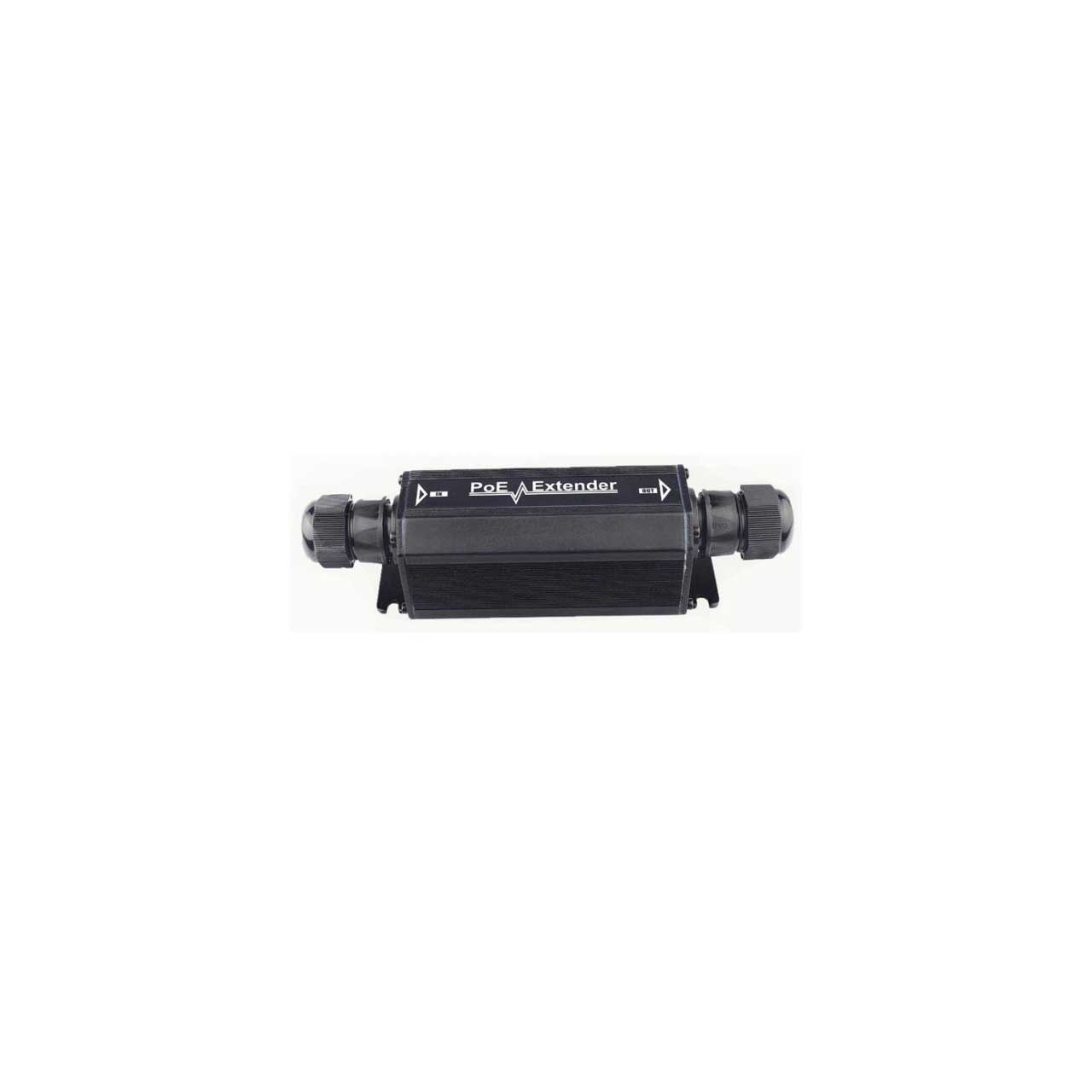

NTI ST-POE-WTP Waterproof Gigabit Power over Ethernet (PoE) Extender

ST-POE-WTP - Overview

• Features:

  • Extend a POE signal up to 328ft (100m) over a single CAT cable (shielded cables recommended)
  • Cascade a maximum of four ST-POE-WTP units to extend a POE signal up to 1640ft (500m) over a CATx cable
  • Input power source requires POE (switch or injector), output endpoint can be a POE or non-POE device
  • For harsh industrial or outdoor environments
  • Power over Ethernet - no additional power source required
  • Fully compatible with Gigabit Ethernet
  • IEEE802.3af and IEEE802.3at compliant
  • Supported wire gauge: 24AWG
  • Compact size, wall-mountable design
  • IP66 rated waterproofing

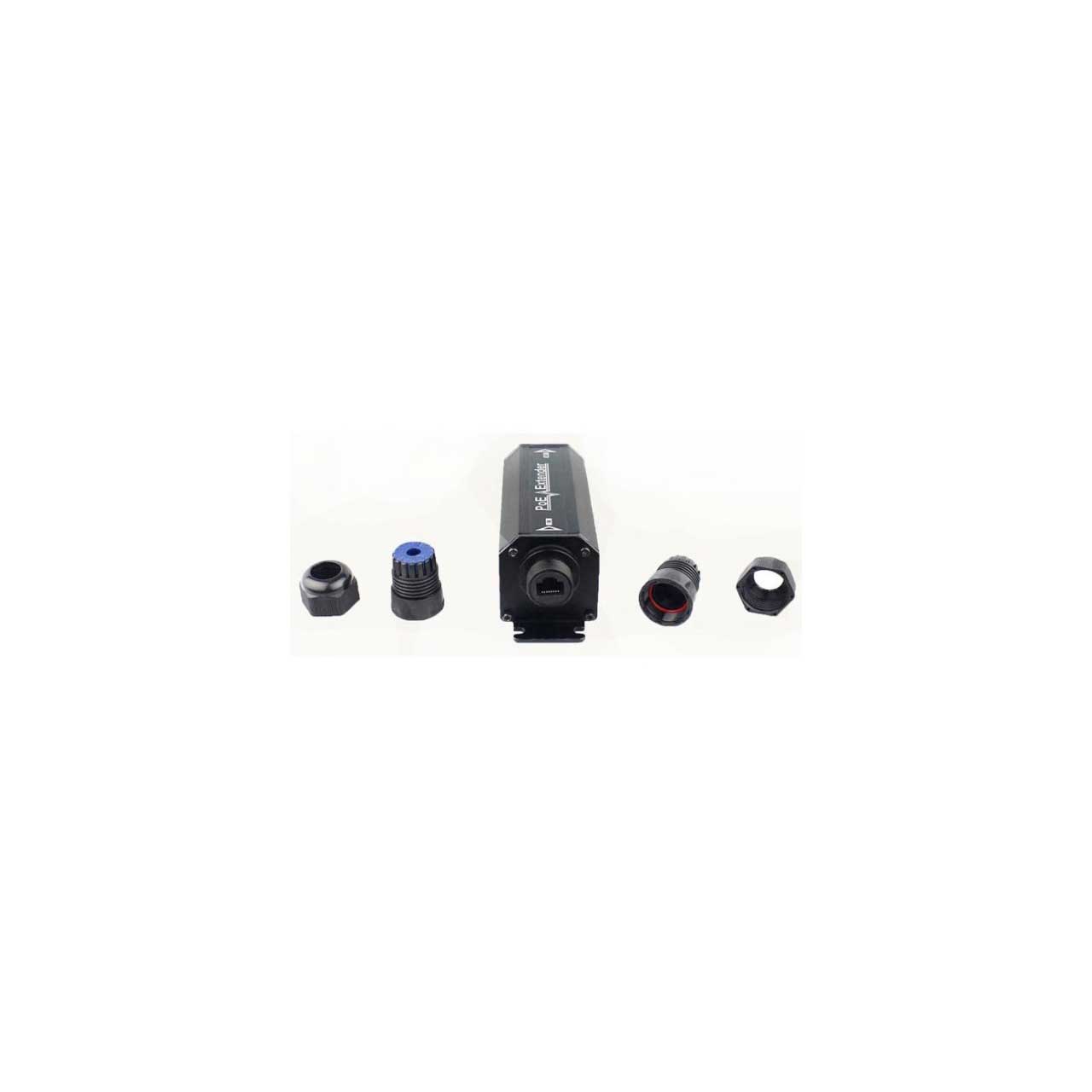

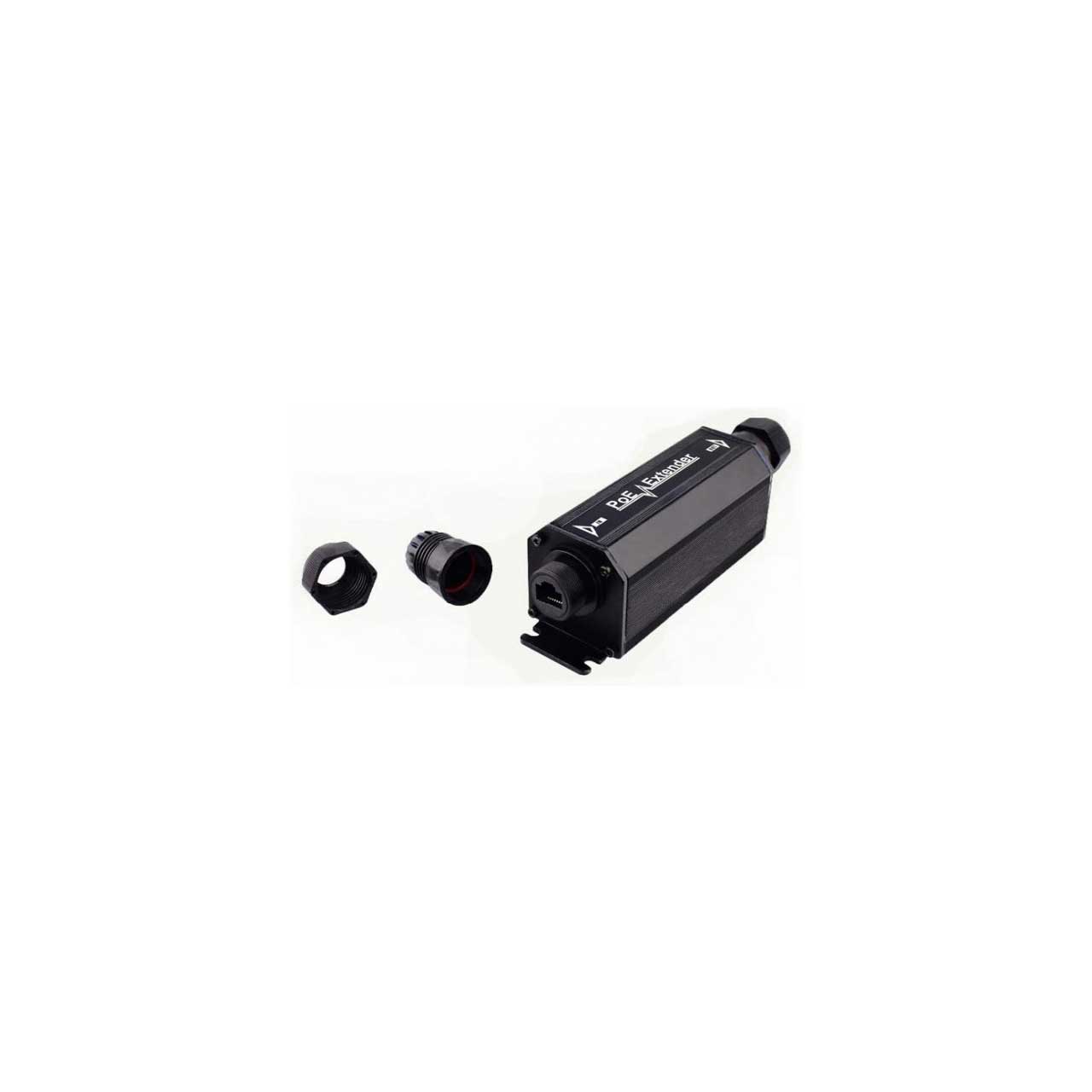

  • CATx cable with a 6mm-7mm O.D. is recommended for waterproofing
  • Support for EIA568A and EIA568B
  • 10/100/1000Mb Half and Full Duplex compatible
  • Regulatory approvals: CE, FCC, RoHS


• Specifications:

  • Ethernet
  • Data Rate: 10/100/1000Mbps

    Power Over Ethernet (PoE)
  • PoE Standard:
    IEEE 802.3af (PoE)
    IEEE 802.2af (PoE+)
  • PoE Power Supply Type: Mid-Span/Type B (No external adapter required)
  • PoE Output Pin Assignment: 4/5(+), 7/8(-)

    Connectors
  • Ethernet + PoE In: 1x RJ-45 Connector
  • Ethernet + PoE Out: 1x RJ-45 Connector

    Electrical and Mechanical
  • Input Power: Powered by 48VDC from PoE switch or Mid-Span injector @ IEEE 802.3af/IEEE802.3af (PoE+)
  • PoE Output Power: 22W
  • Max Powered Devices: 1
  • Enclosure: Metal
  • Dimensions (HxWxD): 7.28 x 1.77 x 1.77"
  • Weight: (0.6128g)

    Environmental
  • Temperature:
    Operating: -13° to 131°F (-25° to 55°C)
    Storage: -22° to 158°F (-30° to 70°C)
  • Humidity: 5 to 90% (non-condensing)
