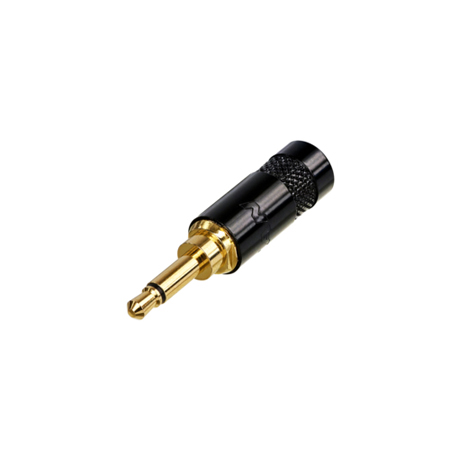

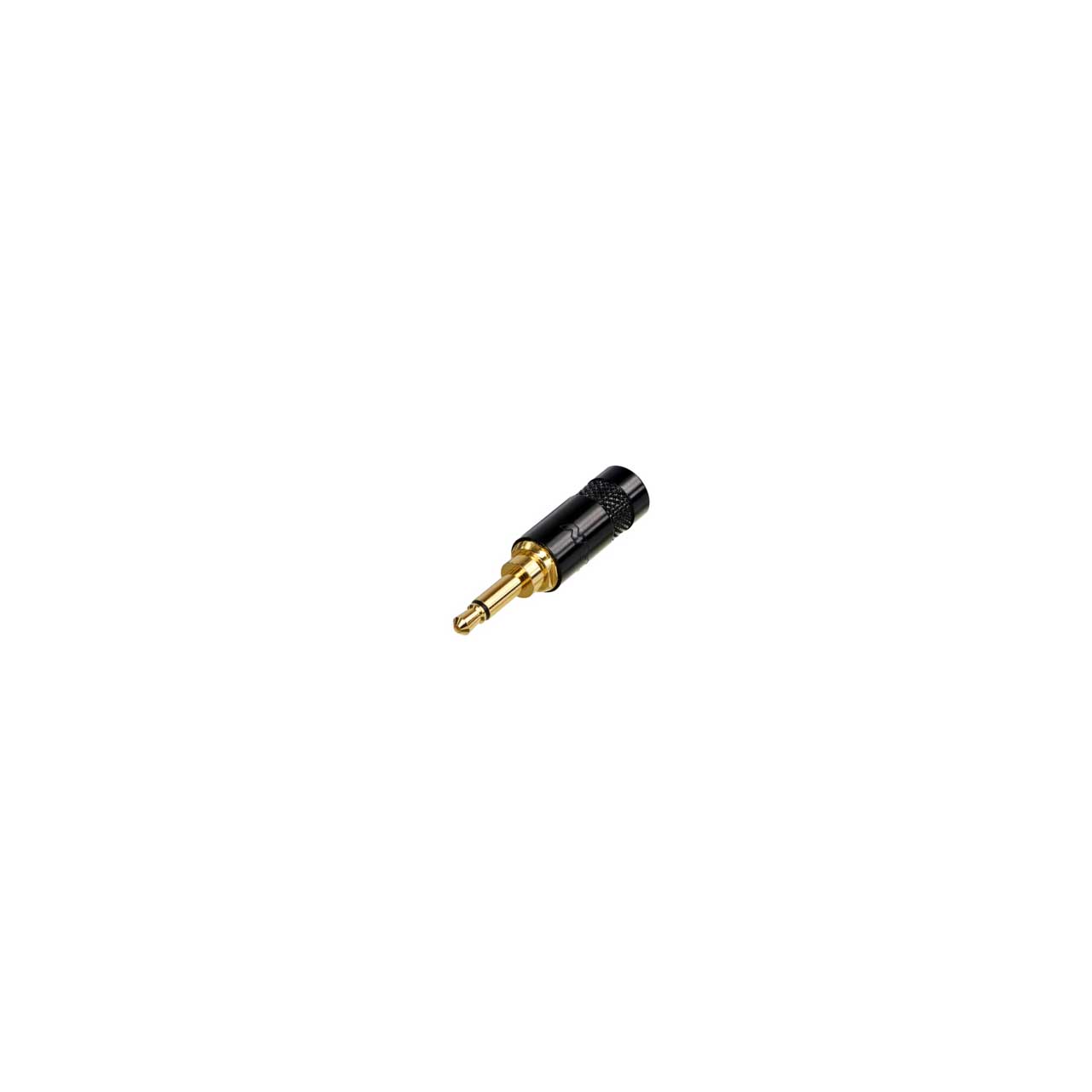

Rean NYS226BG 3.5mm Mono with Black Metal Handle - Black/Gold

NYS226BG - Overview

• Specifications:

  • Electrical
  • Contact Resistance: ≤10 mΩ
  • Insulation Resistance: >200 MΩ(Initial)
  • Dielectric Strength: 500V dc 50HZ

    Mechanical
  • Cable O.D.:
    - Max 4.5mm for standard outlet
    - Max 6.4mm for large outlet ( * L)
  • Insertion and Withdrawal Force:≤60 N
  • Lifetime: >1,000 Mating Cycles

    Mechanical
  • Plug Finger: Brass
  • Sleeve: Zinc
  • Cable Clamp: Steel
  • Housing: Zinc
  • Insulation: PP
  • Plug Finger Plating: Nickel
  • Sleeve Plating: Nickel
  • Cable Clamp Plating: Tin
  • Housing Plating: Nickel


• GTIN:

  0844632004759
