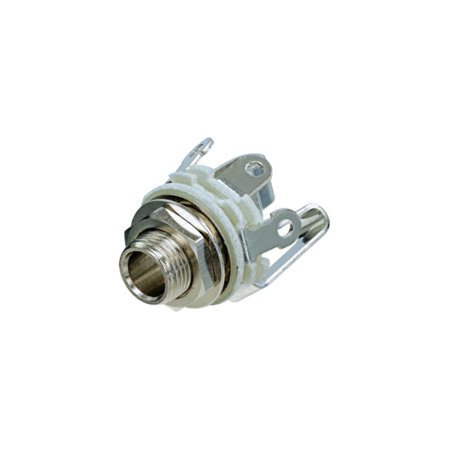

Rean NYS230 1/4in Stereo Open Frame Jack with Solder Tabs

Name: Rean NYS230 1/4in Stereo Open Frame Jack with Solder Tabs
Brand: Rean
SKU: NYS230
Price: 1.24 USD
Availability: InStock

ITEM #: NYS230 MFG #: NYS230

Rean

List Price:

$2.08

Our Price:

$1.24

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NYS230 - Overview

The Rean NYS230 is an open 3-pole jack with 3 contacts. It comes standard with a washer and nut. The NYS230 is made for a panel thickness of 4 mm and features a 0.205" fast on tab.

Specifications:
- Electrical
- Contact Resistance: ≤10 mO
- Insulation Resistance: >2000MΩ(Initial)
- Dielectric Strength 500V dc 50HZ

  Mechanical
- Insertion and Withdrawal Force: 5-40N
- Lifetime: >5000 Mating Cycles

  Material
- Tube: Brass
- Nut: Brass
- Washer: Steel
- Washer: Steel
- Washer: 3240 Epoxy-phenolic
- Insulator Washer: 3240 Epoxy-phenolic
- Contact: Bronze
- Sleeve Contact: Brass
- Contact: Bronze
- Tube: Nickel Plating
- Nut: Nickel Plating
- Washer: Nickel Plating
- Washer: Nickel Plating
- Contact: Tin and Cer
- Sleeve Contact: Tin and Cer
- Contact: Tin and Cer
