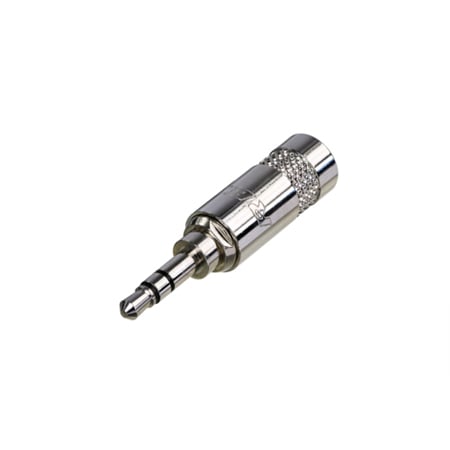

Rean NYS231 3-Pole Metal 3.5 mm Plug with Crimp Strain Relief

ITEM #: NYS231 MFG #: NYS231

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$1.70

Our Price:

$1.02

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS231 - Overview

The Rean NYS231 is a 3-Pole 3.5mm Plug with a Metal Housing and Crimp Strain Relief.

  • Specifications:

    • Electrical
    • Contact Resistance: ≤10 mΩ
    • Insulation Resistance: ≥200 MΩ(Initial)
    • Dielectric Strength: 0.5 KVdc 50HZ

      Mechanical
    • Lifetime: > 5,000 Mating Cycles
    • Insertion and Withdrawal Force: 5 - 40 N
    • Cable O.D.:
      - max 4.5 mm for standard outlet
      - max 6.4 mm for large outlet ( * L)
      - max 8.5 mm for large outlet ( * LL)

      Material
    • Plug Finger: Brass
    • Sleeve: Zinc
    • Retainer Ring: PA66+30%GF
    • Soldering Contact: Phosphor Bronze
    • Cable Clamp: Steel
    • Insulation: PP
    • Housing: Zinc
    • Plug Finger Plating: Nickel
    • Sleeve Plating: Nickel
    • Soldering Contact plating: Tin
    • Cable Clamp Plating: Tin
    • Housing Plating: Nickel


  • GTIN:

    0791963148723
