Rean NYS373-5 RCA Male Plug with Gold Contacts - Green

ITEM #: NYS373-GN MFG #: NYS373-5

Primary Image
Rean
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.35

Our Price:

$2.01

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS373-5 - Overview

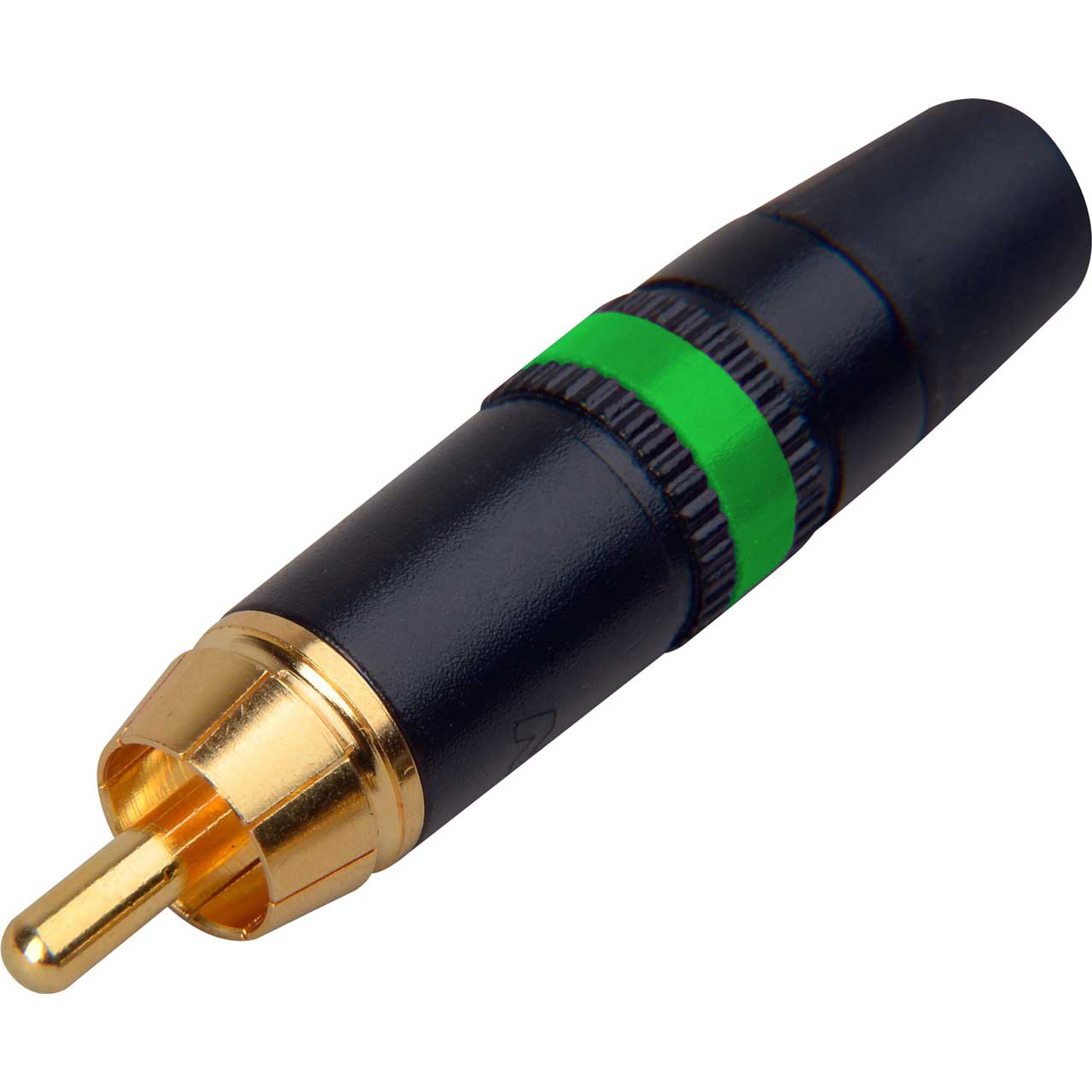

The Rean NYS373 is a phono plug with a black shell, gold plated contacts and rubber boot for best antikink protection. It has a chuck type strain relief for cable O.D. 3.5 to 6.1 mm and a color coding ring.

  • Specifications:

    • Product
    • Title: NYS373
    • Connection Type: Phono ("RCA/Cinch")

      Electrical
    • Contact Resistance: ≤10 mΩ
    • Insulation Resistance: >2000 MΩ(Initial)
    • Rated Voltage: 0.5 VAC

      Mechanical
    • Insertion and Withdrawal Force: 5-20N
    • Lifetime: >5000 Mating Cycles

      Material
    • Pin: Brass
    • Housing: Copper
    • Housing: Zinc
    • Boot: PVC
    • Ground Contact: H62
    • Chuck: PA6
    • Color Dividing Ring: Rubber
    • Elastic Clamp: ABS
    • Pin: Gold
    • Housing: Gold
    • Ground Contact: Gold
    • Housing: Black


  • GTIN:

    4049371068260
