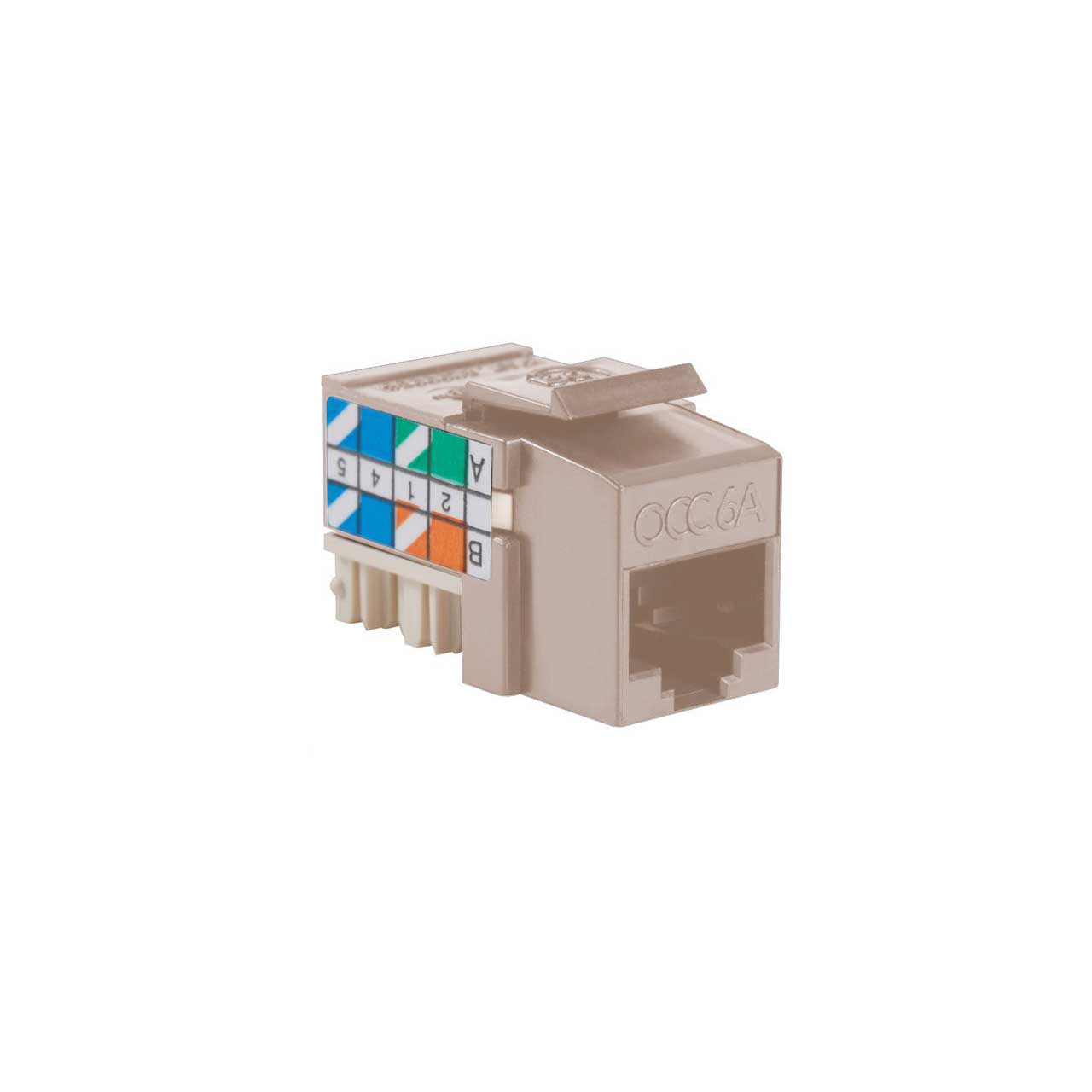

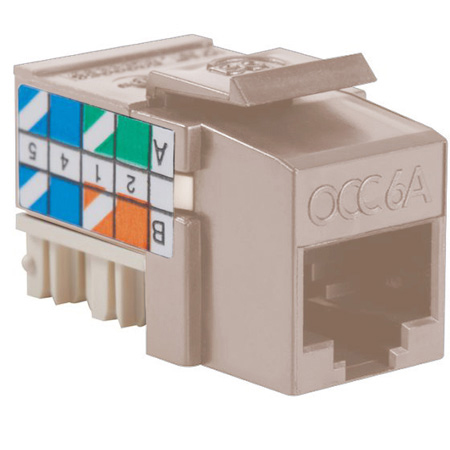

OCC K6A00 Cat 6A Modular Jack - Unshielded

Name: OCC K6A00 Cat 6A Modular Jack - Unshielded
Brand: Optical Cable Corp
SKU: OCC-K6A00
Price: 6.63 USD
Availability: PreSale

ITEM #: OCC-K6A00 MFG #: K6A00

Optical Cable Corp

List Price:

$7.30

Our Price:

$6.63

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

K6A00 - Overview

OCC’s K6A00 Category 6A jack offers a high-performance 10 Gigabit connecting hardware component in a compact form factor. This RJ45 slim-line Category 6A jack is part of a comprehensive solution for high-performance 10G structured cabling systems. Using patented crosstalk reduction technology, OCC engineering has developed one of its highest performing component products yet. The slimline design supports high-density applications, allowing for 48 ports in a 1U panel for UTP and shielded applications, and is ideal for data center and 802.11AC wireless access points.

Features:
- Available in 12 colors
- Meets IEC 60603-7 requirements
- Guaranteed ISO and TIA Category 6A compliant
- 110-style IDC contacts exceed TIA-568-C.2 requirements
- Slimline profile allows 48 ports in a 1U panel
- TIA-568-C.2 Cat 6A and ISO 11801 Ed 2. Cat 6A component compliant
- High-performance contacts provide low crosstalk with improved mechanical robustness
- One-piece stuffer cap included
- UL 1863 listed communications circuit accessory
- Large, easy-to-read color-coded labels
- Supports all IEEE Power over Ethernet (PoE) standards
- Contact material: high-strength beryllium copper alloy
- Contact plating: 50 μin gold over nickel
- Insulation resistance: 500MΩ minimum
- Dielectric withstand: 1000 VAC RMS or 1414 VDC
- DC current rating: 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C ambient
Specifications:
- CATEGORY 6A - Category 6A KMJ jacks, UTP - Unshielded, Slim-line, Electric Ivory; Category 6A KMJ Outlet Jacks, UTP - Unshielded, Slimline
