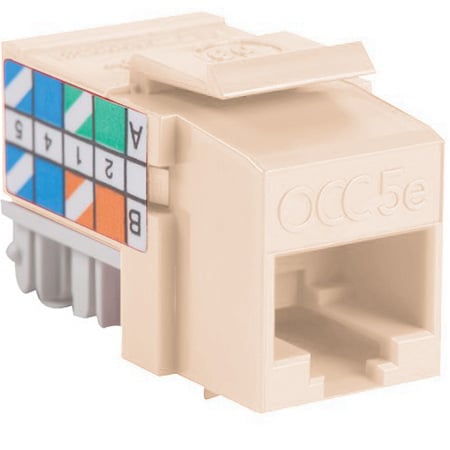

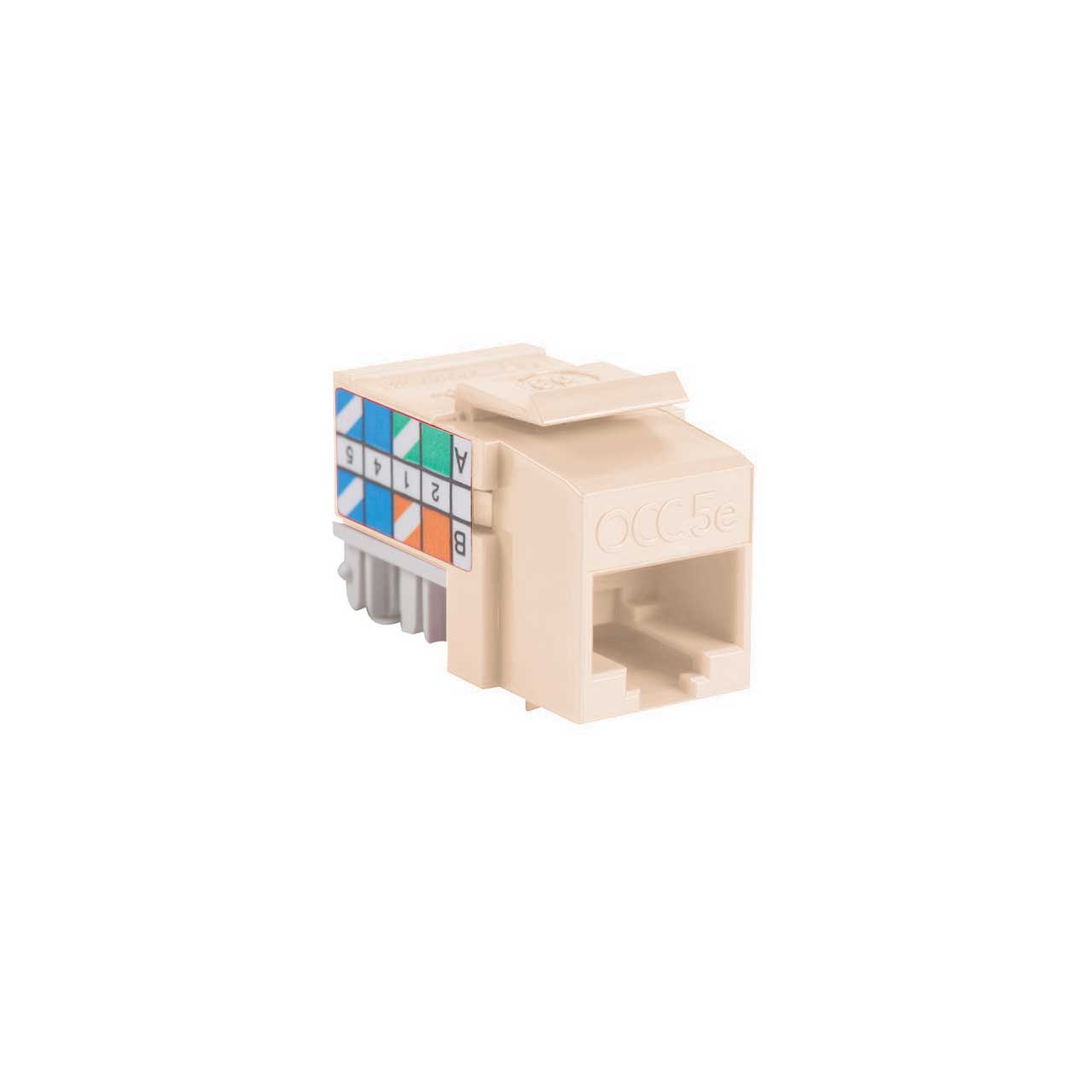

OCC KMJA5E00 Cat 5e Modular Jack

Name: OCC KMJA5E00 Cat 5e Modular Jack
Brand: Optical Cable Corp
SKU: OCC-KMJA5E00
Price: 3.93 USD
Availability: PreSale

ITEM #: OCC-KMJA5E00 MFG #: KMJA5E00

Optical Cable Corp

List Price:

$4.33

Our Price:

$3.93

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

KMJA5E00 - Overview

The OCC KMJA5E00 Category 5e Keystone Modular Jack is a great alternative for high-density applications. Featuring a low profile, snap-in design and support for universal T568A/B wiring, the KMJ Cat5e jacks by OCC offer exceptional performance that exceeds industry standards. OCC’s patented PC board technology provides component compliance to Cat5e specifications. Economy version Keystone jacks are also available that utilize a leadframe design and meet Cat5e link performance.

Features:
- Available in 12 colors
- Meets IEC 60603-7 requirements
- 110-style IDC contacts meet TIA 568-C.2 requirements
- Backward compatible, Cat 3, and Cat 5 compliant
- Universal T568A/B wiring for easy installation
- Available in 12 color options
- Fits all OCC Keystone faceplates and surface mount boxes
- Compliant with Power over Ethernet (PoE+) requirements
- Insulation resistance- 500MΩ minimum
- Dielectric withstand- 1000 VAC RMS, AC 60Hz or 1414 VDC P-P
- DC current rating- 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C
- One-piece stuffer cap included
Specifications:
- CATEGORY 5e - KMJ Category 5e Jack, Universal 568A/B Wiring, Electric Ivory; KMJ Category 5e Jack, Universal 568A/B Wiring
