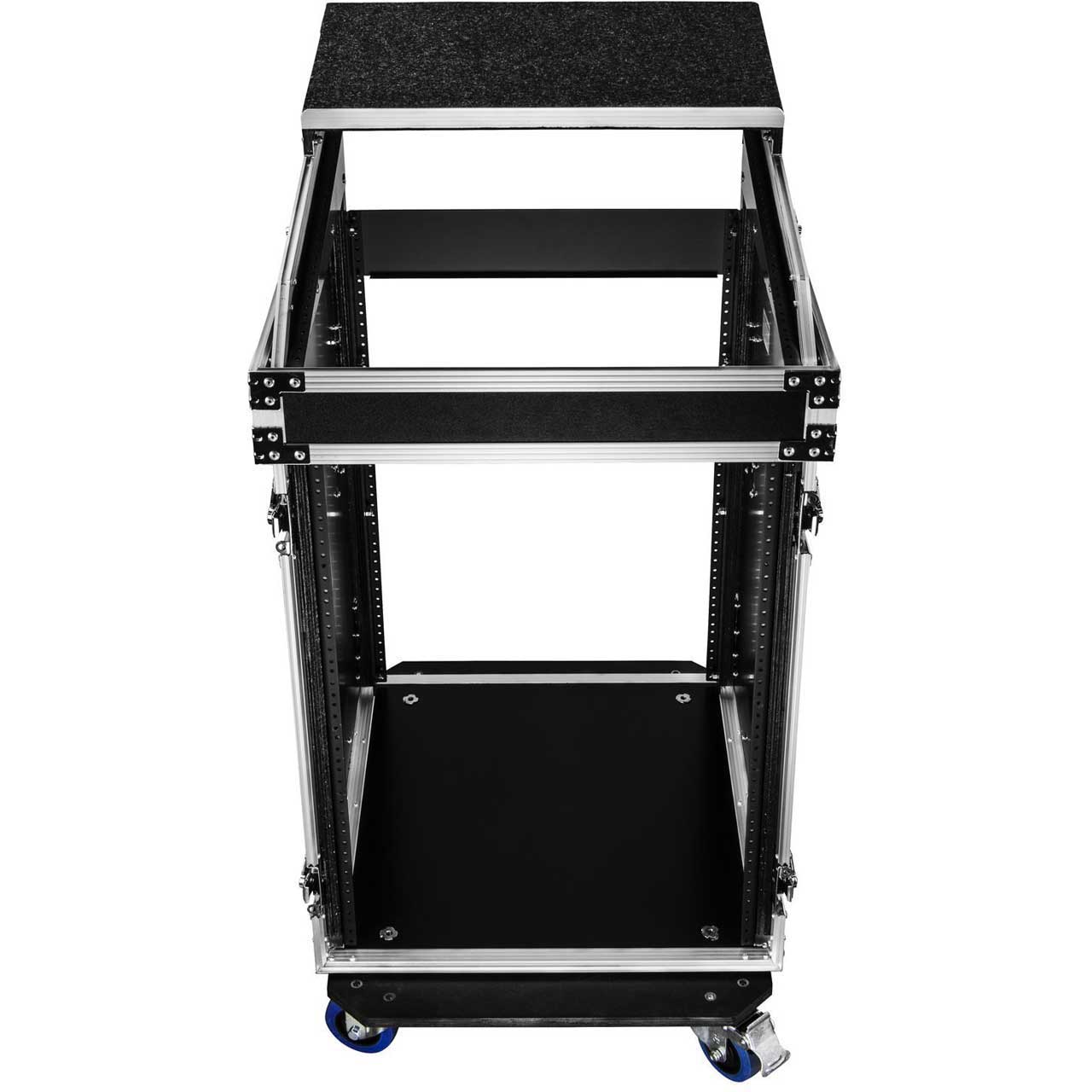

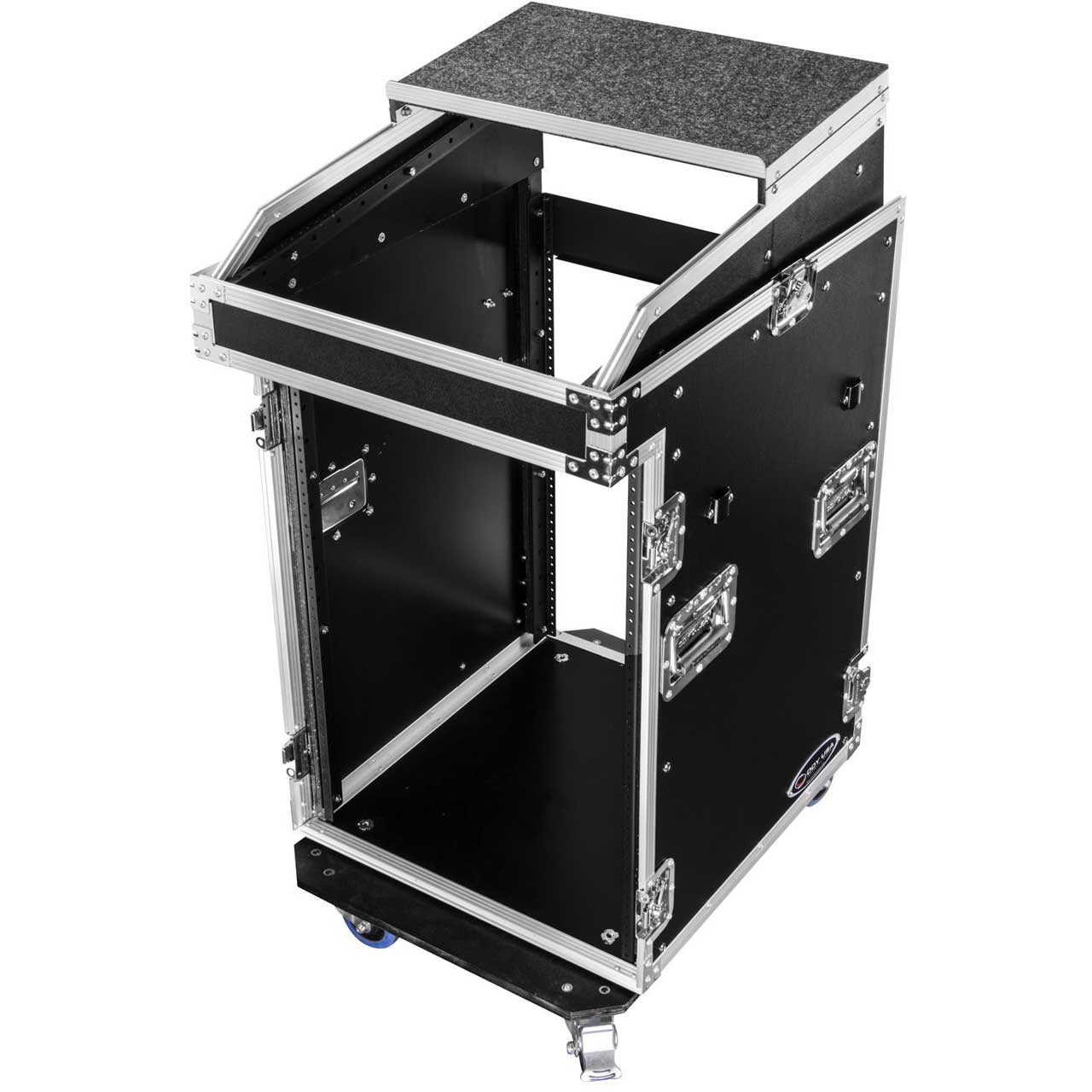

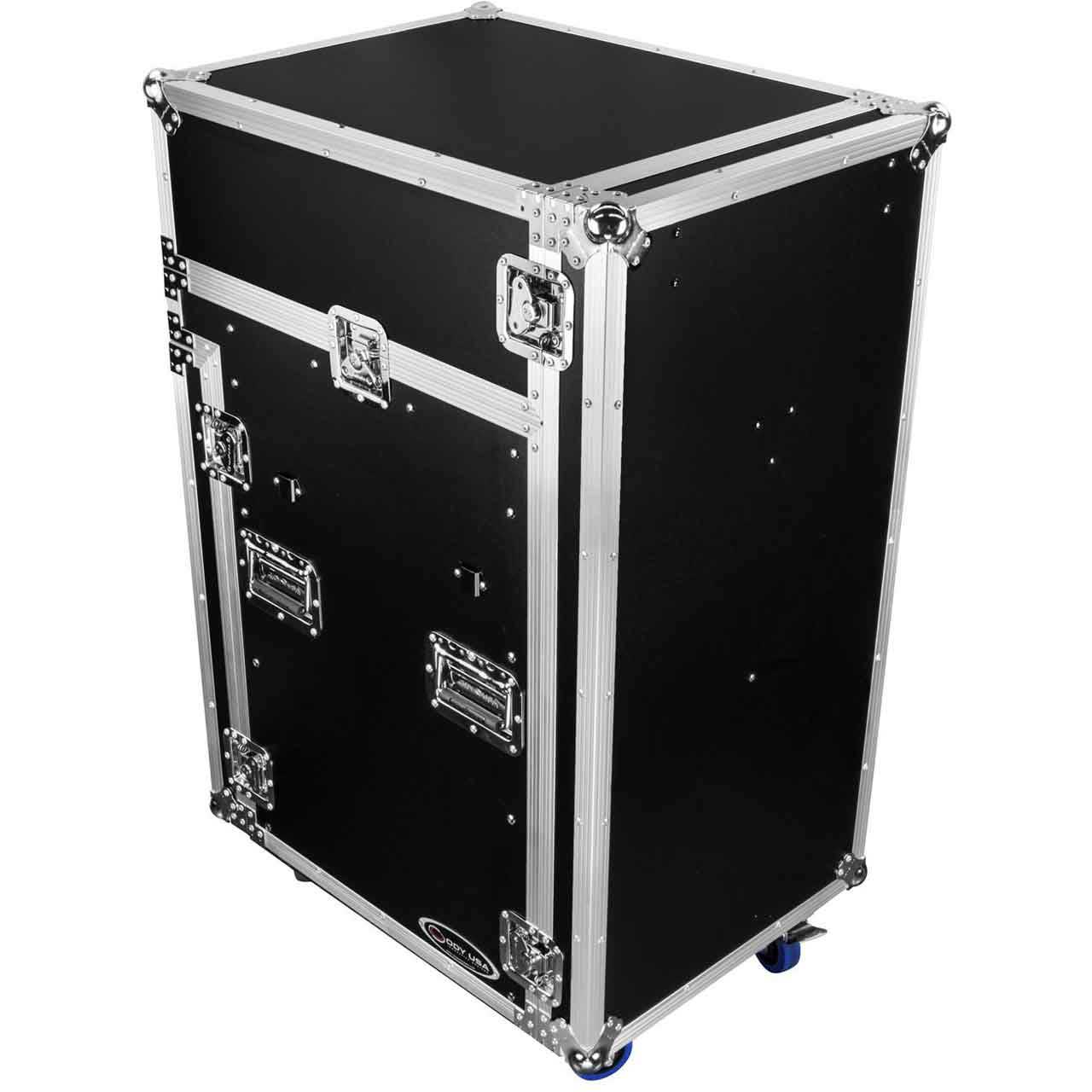

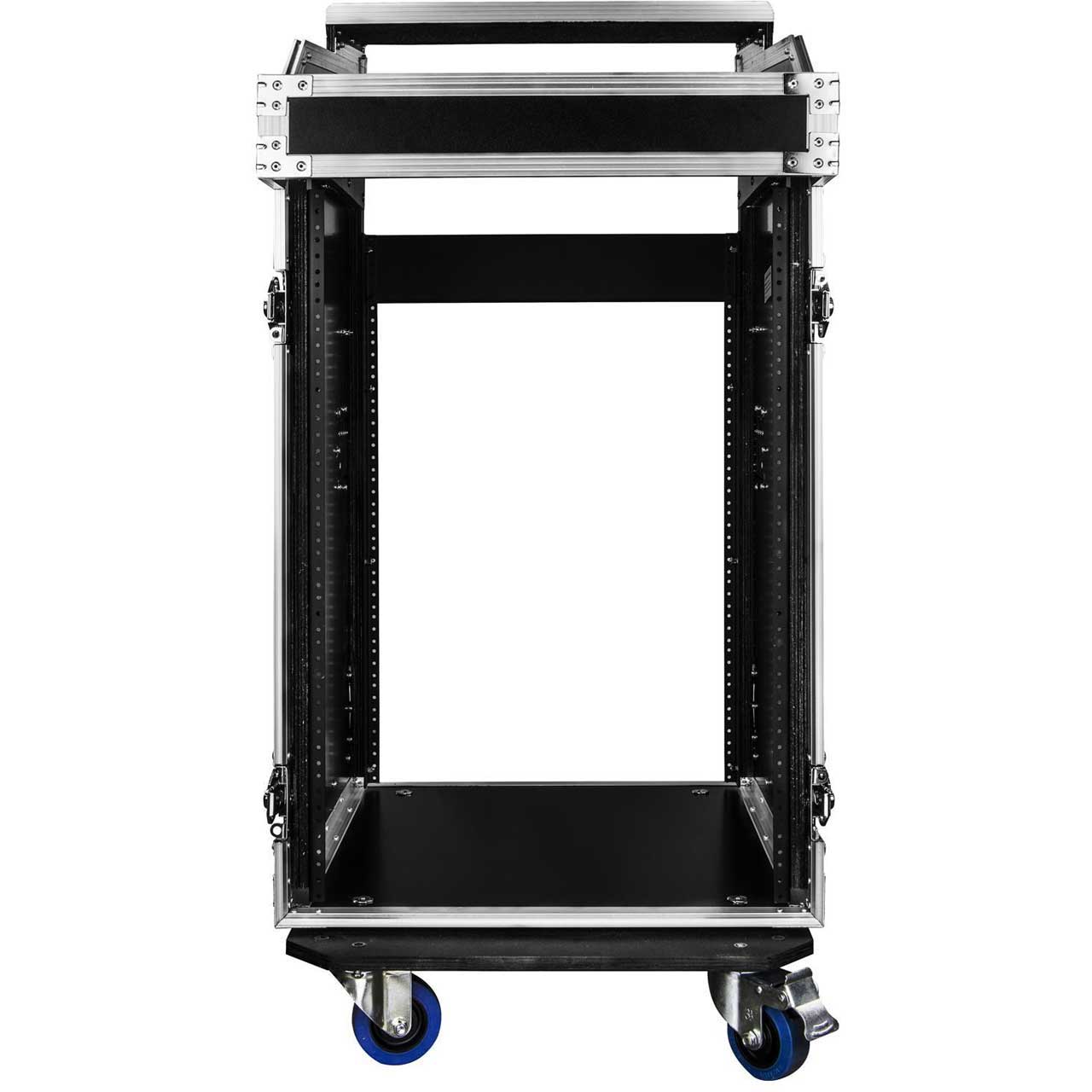

Odyssey Cases FZGS1416WDLX Glide Style 14 Space x 16 Space Combo Rack with Wheels and 1 Side Table

FZGS1416WDLX - Overview

• Features:

  • Top Slanted Rack: 14 spaces
  • Top Slanted Rail has a 4" Height Difference Front to Back
  • Bottom Vertical Rack: 16 spaces
  • Top Slanted Rail To the Top of the Bottom Vertical Rail is 3.75" at the Front and 7.75" at the Back
  • Front to Rear Rail to Rail Measures 21"
  • Rail to Front or Rear Cover is 22"
  • 3/8" Ply Construction
  • Patented Top Glide Style™ Platform
  • Clearance from Slanted Rail to Glide Platform is 2.75"
  • Case Top Cover Interior is 9" with a 2.5" clearance from the Glide Platform's Highest Point (when cover is attached)
  • Removable Front & Rear Doors
  • Rear Cover Depth is 3" (not including the table leg)
  • Front Cover Is 29"H With a 2.75" Interior Depth

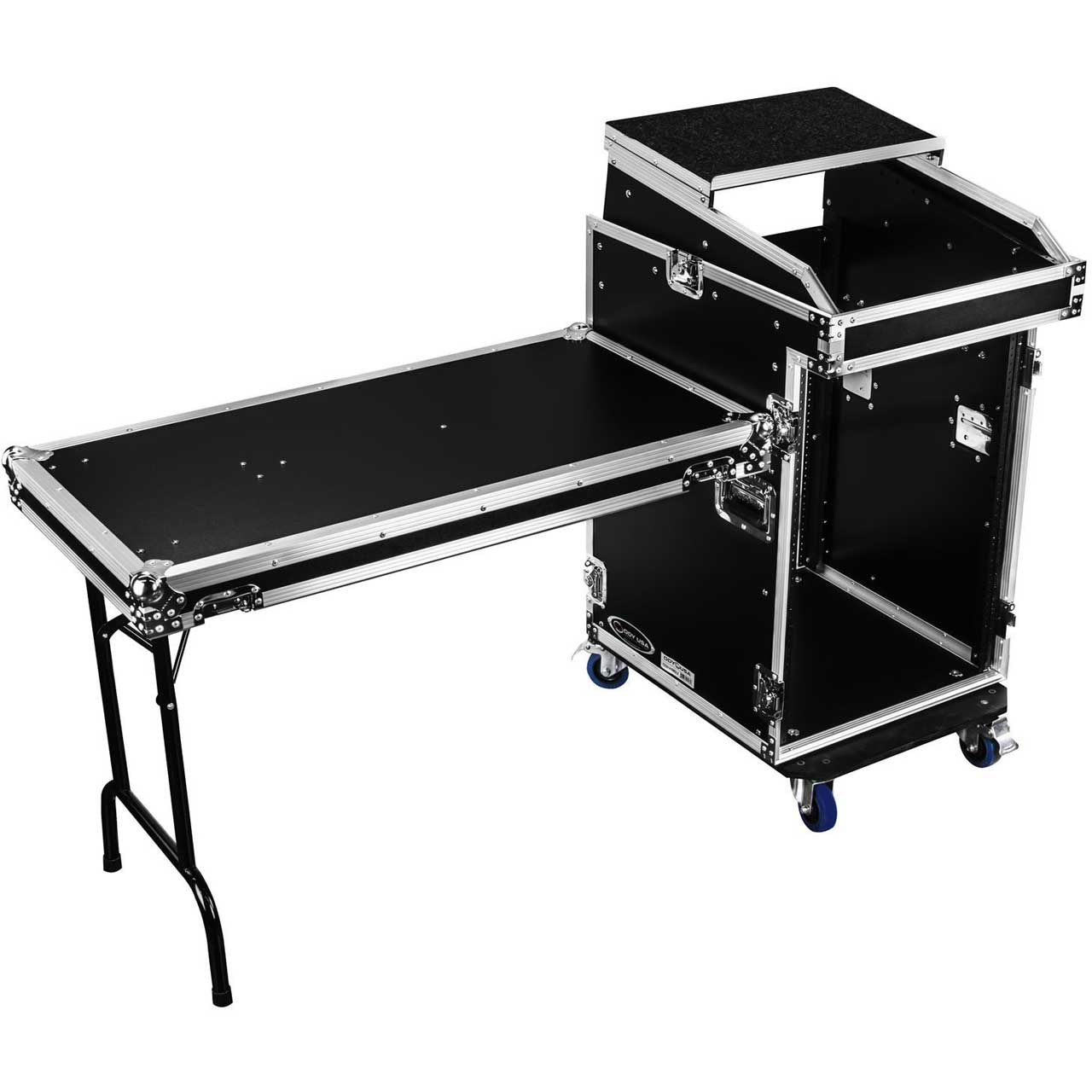

  • Rear Door Converts Into a Side Table Mounted on Either Side of the Rack
  • Table Surface is 22.5" x 44.75"
  • Side Table Mount Weight Capacity is 100 lbs. Evenly Distributed
  • Table When Mounted Is 30"H With 26.5"H Bottom Clearence
  • 3.5" Door Lids (3"interior depth)
  • 3.5" Caster Wheels, 2 With Brakes *Caster Assembly is Required
  • Recessed Handles and Latches
  • Front and Rear Rack Rails
  • Limited Lifetime Warranty


• Specifications:

  • Exterior Dimensions: 22.25" W x 30.25" D x 47.75" H
  • Weight: 111.00 lbs
  • Shipping Dimensions: 23.00" W x 31.25" D x 44.00" H
  • Shipping Weight: 120.00 lbs
  • Vertical Rack Spaces: 16
  • Slanted Rack Spaces: 14
  • Front Rail to Front Cover Measurement: 15"
  • Front Rail to Rear Rail Measurement: 16"
  • Rear Rail to Back Cover Measurement: 17"
  • Case Constructs: Silver Hardware


• Item Includes:

  • 1x Odyssey FZGS1416WDLX Glide Style 14 Space x 16 Space Combo Rack with Wheels and 1 Side Table


• Warranty:

  • Limited Lifetime Warranty
