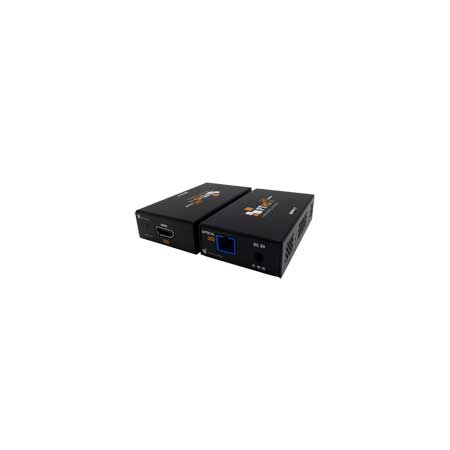

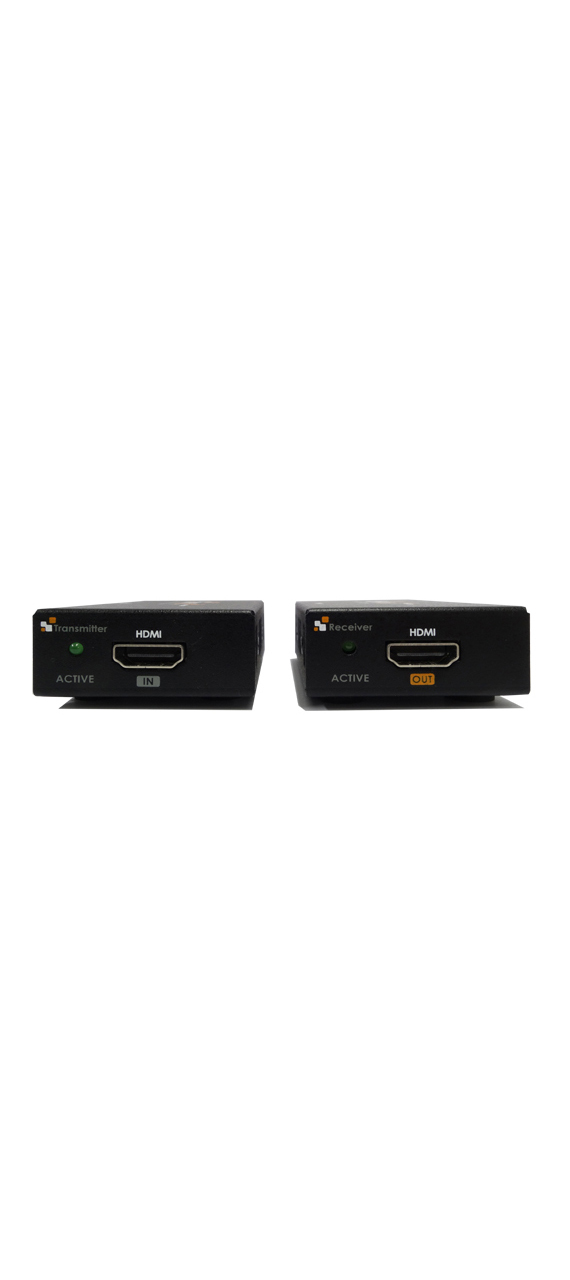

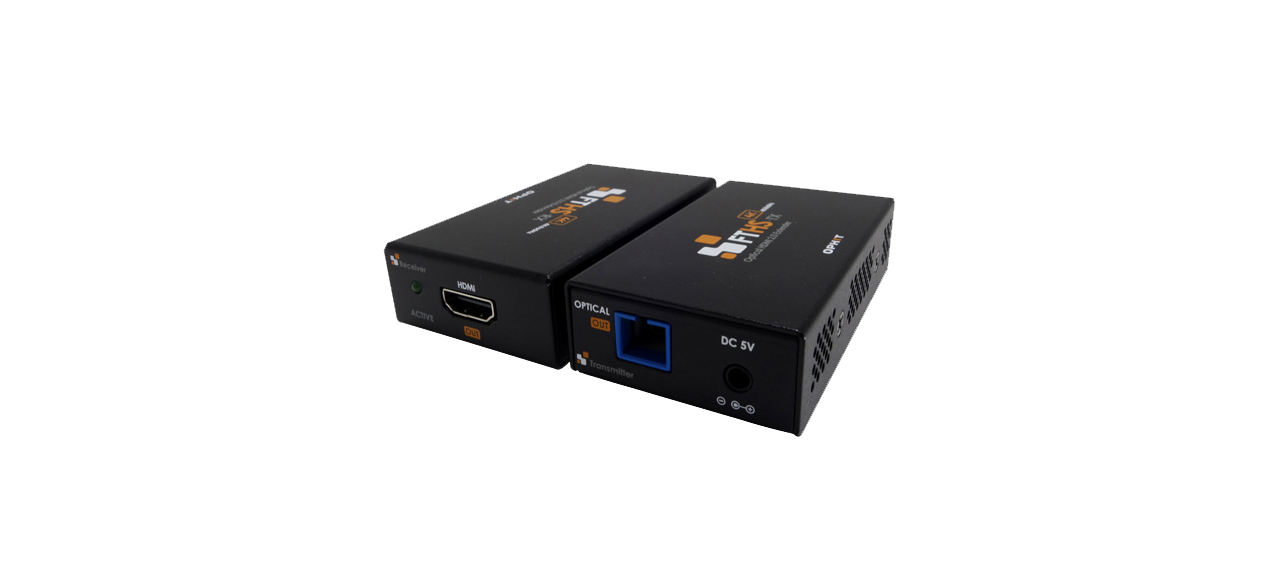

Ophit FTHS-M Optical HDMI Extender Set with Power Supply - 656 Feet (200m) 4K@60Hz HDMI 2.0 - OM3/OM4 - SC

FTHS-M - Overview

• Features:

  • High Speed and long-distance transmission
  • Compatible with HDMI standard V2.0a
  • Supports 50-micron OM3 or OM4 Fiber with an SC Connector

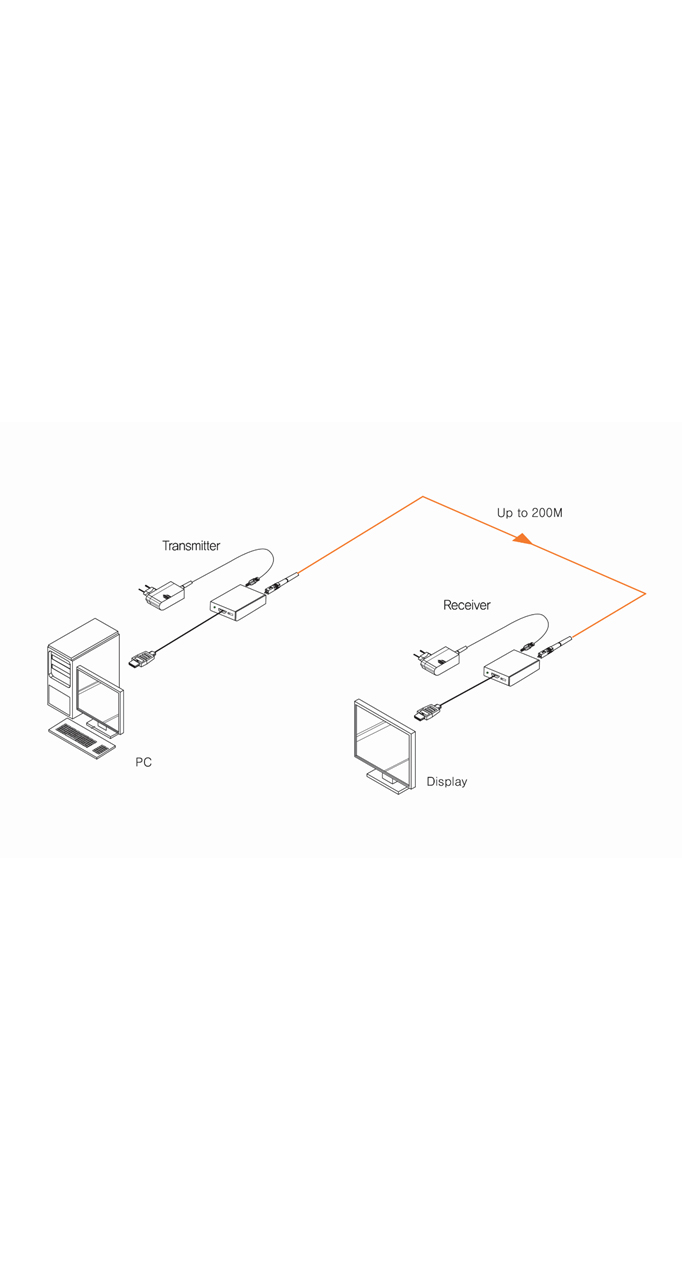

  • Main-link video signal / DDC data and Hot Plug Detection signal is transmitted by- 1-channel multimode optical fiber
  • External power supply use(TX, RX)
  • SCDC (Status and Control Data Channel) compliant
  • HDCP 2.2 compliant
  • EMC & Safety: CE, FCC
    *Does not support CEC and HEAC.


• Specifications:

  • Input and Output Signal: HDMI 2.0 Standard
  • Video Bandwidth: 18Gbps
  • Dimensions: 3.19" x 0.83" x 1.87" (81.2mm x 21.1mm x 47.5mm)
  • Optical Connector: SC Connector
  • Electrical Connector: HDMI type A Connector (Female)
  • Applied Fiber: OM3 or OM4 Multi-mode glass-fiber.
  • Maximum Supporting Resolution: UHD (3840x2160/4096x2160 @ 60Hz)
  • Transmission Distance: 200m (656ft)
  • External Power: 5V/2A (1.35ø DC JACK)
  • Transmitter Power Consumption: 3.05W (Typ)
  • Receiver Power Consumption: 2.85W (Typ)
  • Operating Temperature Range: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature Range: -4°F - 158°F (-20°C - 70°C)


• Item Includes:

  • 1x Ophit FTHS-M Optical HDMI Extender Set with Power Supply - 656 Feet (200m) 4K@60Hz HDMI 2.0 - OM3/OM4 - SC
