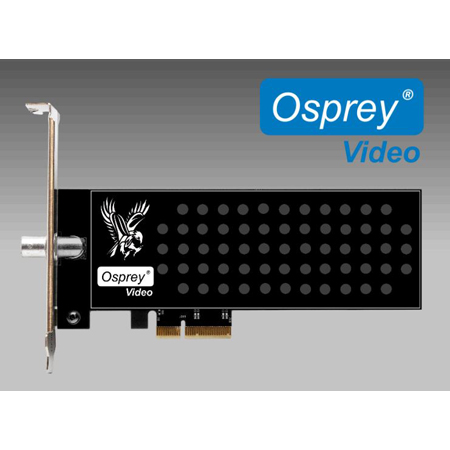

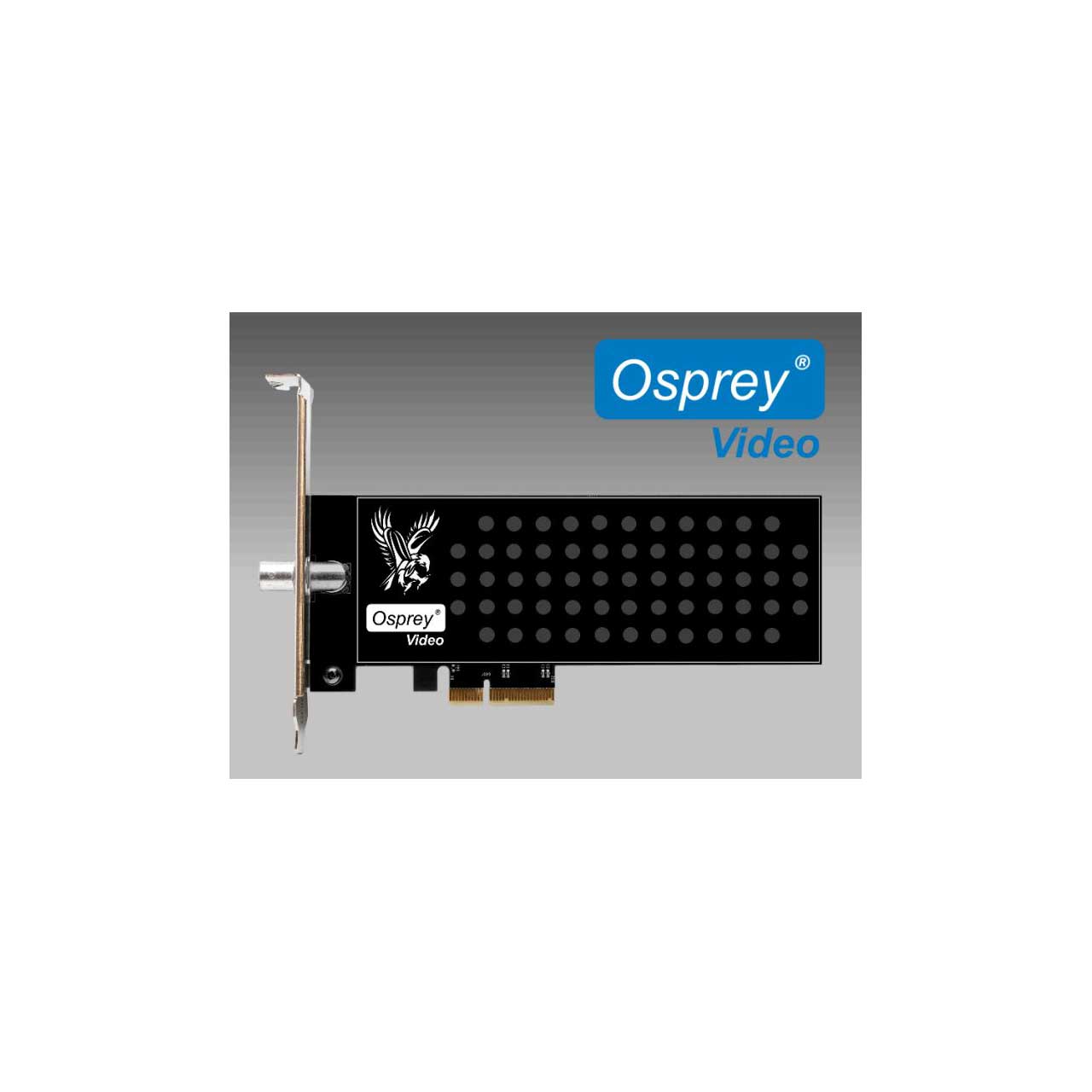

Osprey Video Raptor 916 1x 3G SDI Capture Card with 8 Embedded Stereo Audio Pairs per Channel

916 - Overview

• Features:

  • 1 Channel 3G-SDI
  • 8-bit Color Depth
  • 16 Audio Channels
  • CEA-608, CEA-708 Closed Caption Support


• Specifications:

  • Video Formats
  • 525i59.94 NTSC, 625i50 PAL
  • 720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1080psf 23.98, 24, 25, 29.97, 30
  • 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1080i50, 59.94, 60

    SDI Compliance
  • SMPTE 259/292/296/372/424/425/435 (3G-SDI Level A only)

    SDI Metadata Support
  • CEA-608, CEA-708 for closed captioning

    SDI Color Spaces 8-bit
  • 4:2:2 - UYVY, YUY2, NV16, NV61
  • 4:2:0 - I420, NV12, NV21, YVU9, YV12
  • 4:4:4 - RGB15, RGB24, RGB32, BGR24, BGR32

    Multiple Rate Support
  • Video Format Auto Detect

    SDI Audio Inputs
  • Embedded 16 Channels (8 Stereo) per connection

    Audio Sampling
  • Television standard sample rate of 48 kHz at 24-bit

    Connections
  • Video Inputs Full Size-BNC
  • PCIe 2.0 x4

    Power Consumption
  • ~ 5W

    Compliance
  • CE, FCC, RoHs, REACH

    Environmental Specifications
  • Operating Temperature: 0 to 40C
  • Operating Temperature: 0 to 60C for Rugged Version
  • Non-Operating Temperature: -40 to 75C
  • Operating Humidity Range: 5% to 80% (non-condensing)
  • Operating Humidity Range: Rugged 5% to 95% (non-condensing)
  • Operating Altitude Range: 0 to 20,000ft
  • Non-Operating Altitude Range: 0 to 50,000ft


• Item Includes:

  • 1x Capture Card with Full Height Bracket
  • 1x Half Height Bracket


• Warranty:

  • 2 years
