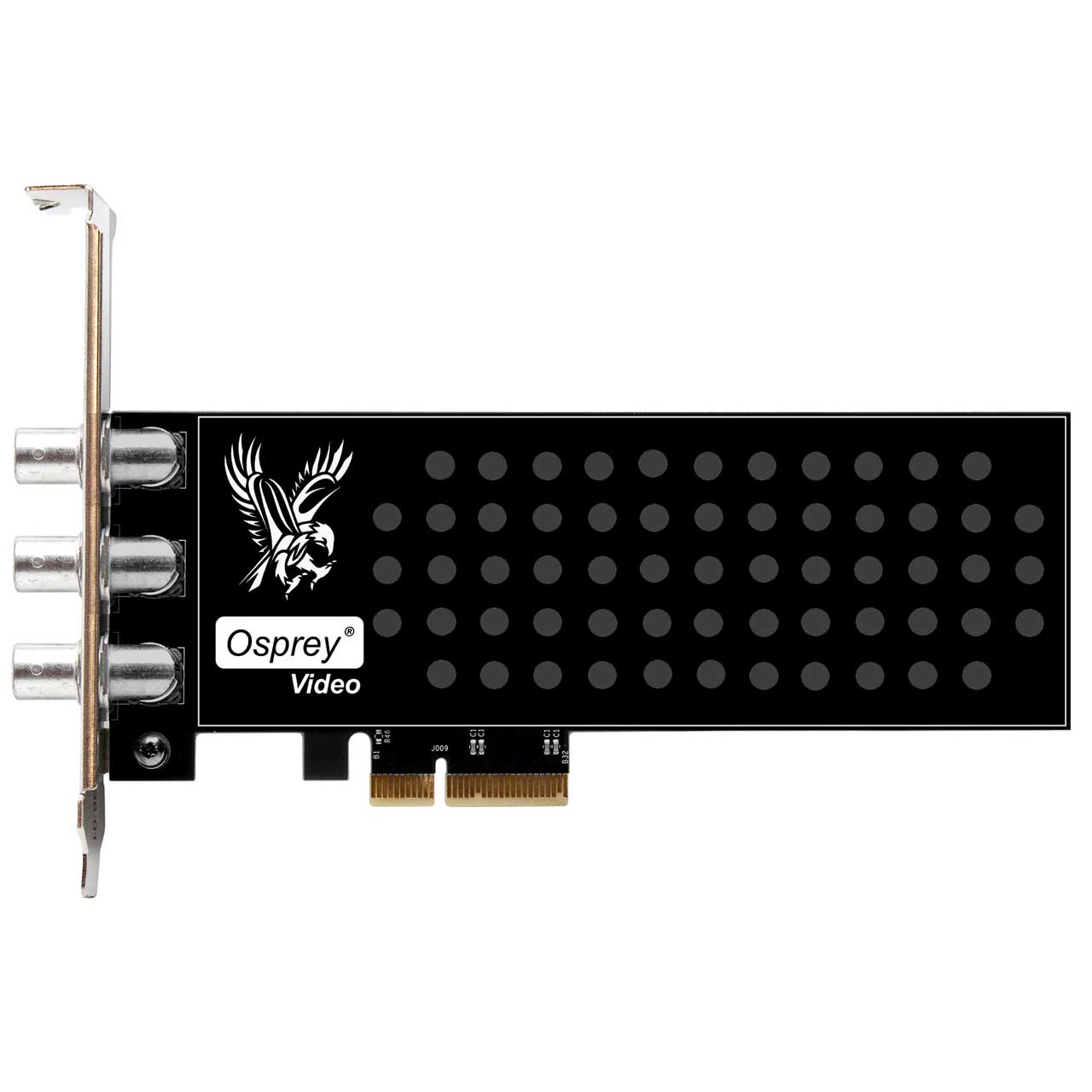

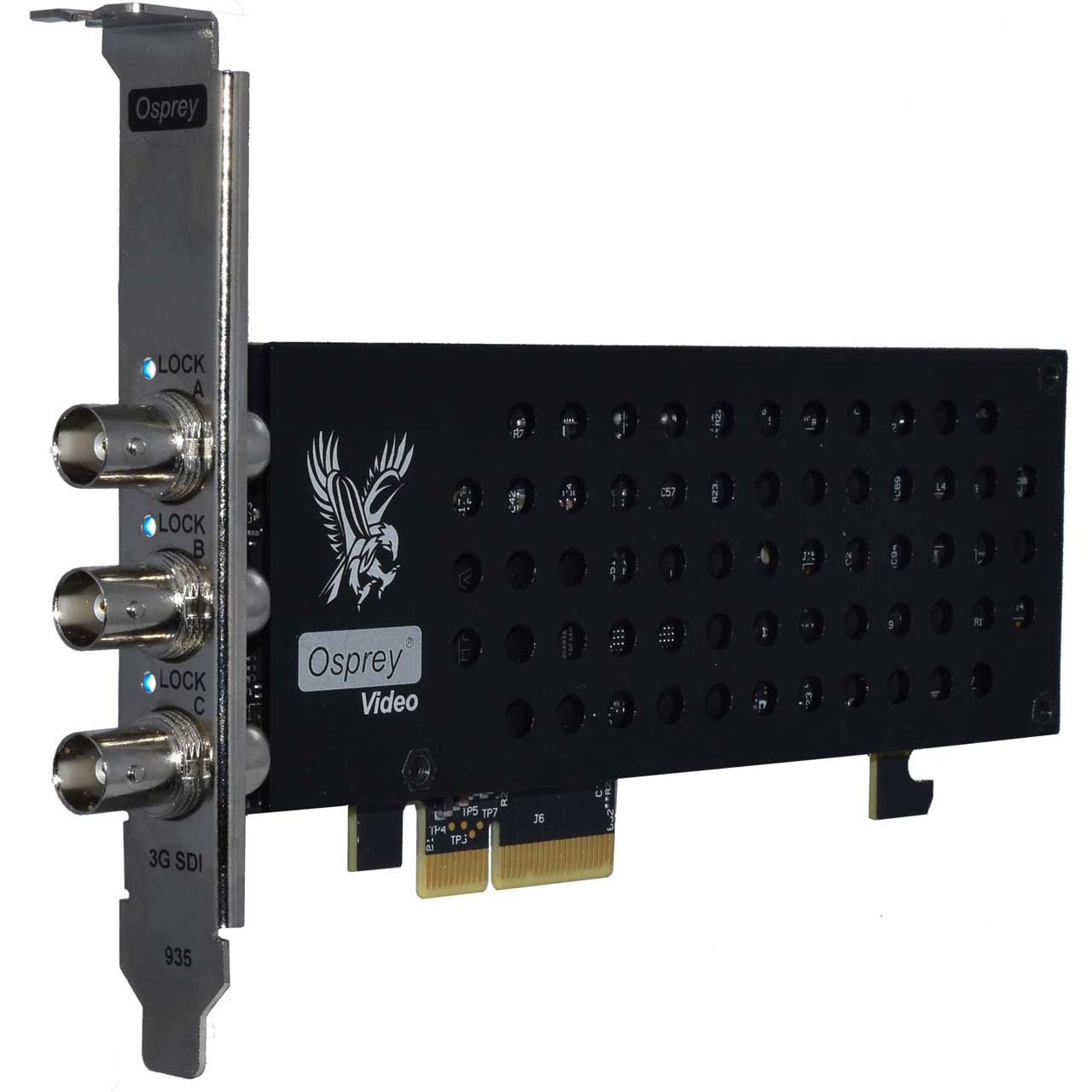

Osprey Video Raptor 935 3x 3G SDI Third Input Programmable as Loopout Embedded 8 Stereo Audio Pairs Per Channel

935 - Overview

• Features:

  • 3G-SDI
  • Inputs up to 1080P60

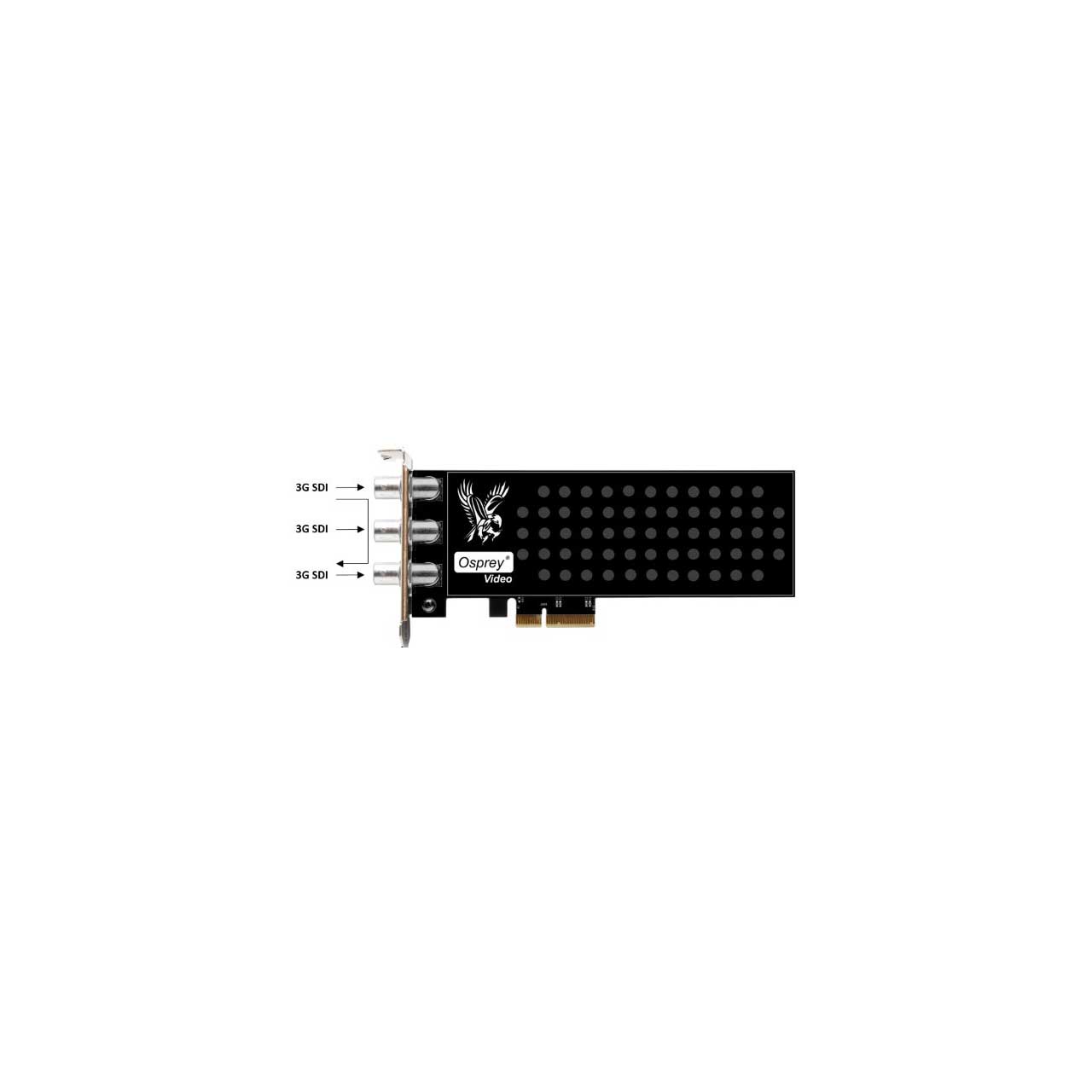

  • Programmable Loopouts
  • Video Outputs
  • 16 Audio Channels per Input
  • Simulstream
  • Medialooks SDK Support
  • Independent Scaling and Frame Rate Conversion for each Input


• Specifications:

  • Computer Interface: PCI Express Gen2 x4
  • Power Consumption: ~ 5.10W
  • Operating Temperature: 0 to 40C
  • Weight: 130g
  • In the Box: Capture Card with Full Height Bracket, Half Height Bracket
  • Connections: 2 x 3Gb/s SD/HD/3G-A (Full Size BNC)
  • SDI Audio Input: Embedded 16 Channels (8 Stereo) per connection
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • 3G/HD Video Standards: 720p50,59.94,60, 1080p23.98,24,25,29.97,30,50,59.94,60, 1080i50,59.94,60
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 435, ITU-R BT.656 and ITU-R BT.601.
  • SDI Metadata Support: CEA-608, CEA-708 for closed captioning
  • Audio Sampling: Television standard sample rate of 48 kHz at 24-bit.
  • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4, YUV 4:4:4 and 4:2:2
  • Multiple Rate Support: Auto Detect SD/HD/3G-A


• GTIN:

  0850189006771
