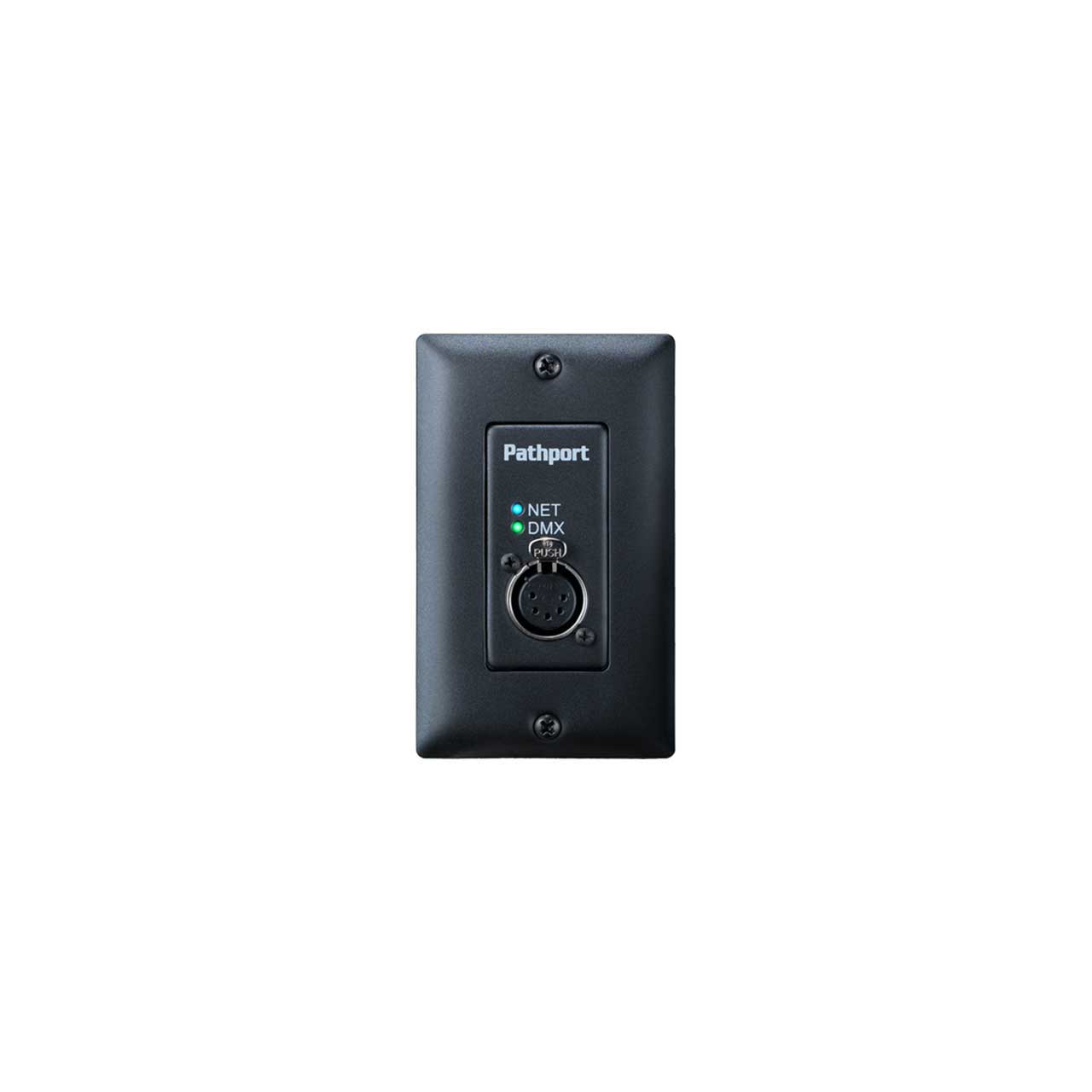

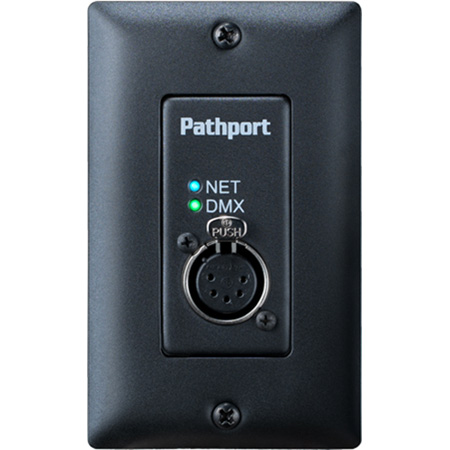

Pathway Connectivity PWPP WM P1 XLR5M BL Pathport Wall-mount 1-Port XLR 5-Pin Male - Black

PWPP WM P1 XLR5M BL - Overview

• Features:

  • Single DMX512 port
  • DMX routing on a universe or channel-by-channel basis
  • Multiple source merging or prioritizing using powerful softpatch engine
  • DMX output speed and signal loss behavior user-set
  • LCD display provides status feedback
  • Power-over-Ethernet (PoE) or auxiliary 24VDC power supply
  • E1.20 RDM compliant as proxy device
  • Manage up to 256 RDM responders per port
  • Fits standard single-gang backbox
  • Ships with single-gang Decora-style faceplate - choose from black or stainless steel
  • Surface mount enclosures as accessory
  • Elegant design suitable for any location
  • Supports the following Ethernet protocols: E1.31 Streaming ACN (sACN), Strand Shownet, Pathport Protocol, Art-Net, ETC Net2 (receive only)


• Specifications:

  • Power-over-Ethernet: Class 1 device - 4W maximum
  • Operating Conditions: -10 to +50°C, 5-95% relative humidity, non-condensing


• Item Includes:

  • 1x Pathway Connectivity P6101BL Pathport UNO Gateway with 1 XLR5M DMX Input - Black
