Pathway Connectivity PWPP WM P2 XLR5F BL Pathport Wall-mount 2-Ports XLR 5-Pin Female - Black

ITEM #: P6202 MFG #: PWPP WM P2 XLR5F BL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Pathway Connectivity Solutions
Free Shipping with $49 Minimum Order

List Price:

$980.00

Our Price:

$899.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PWPP WM P2 XLR5F BL - Overview

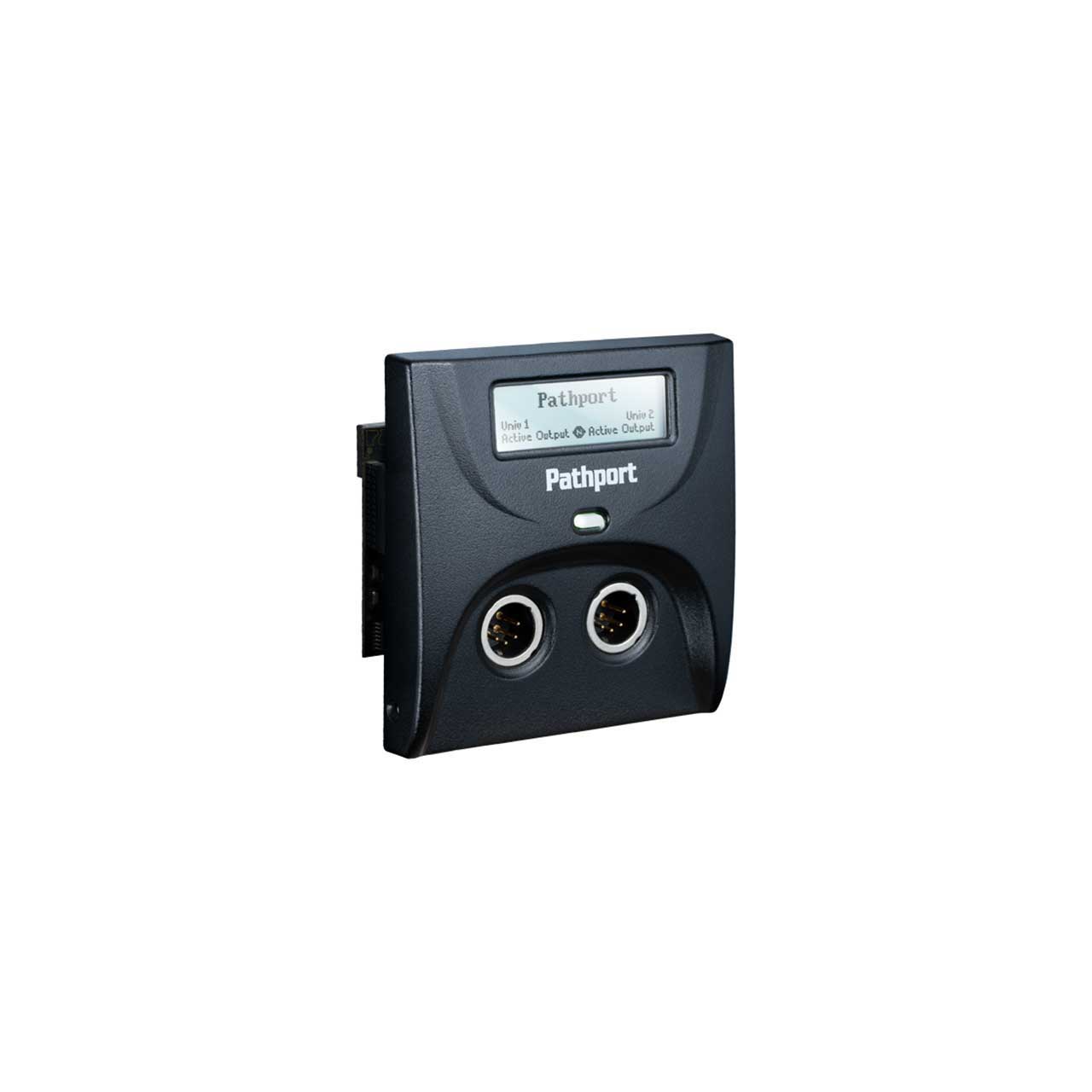

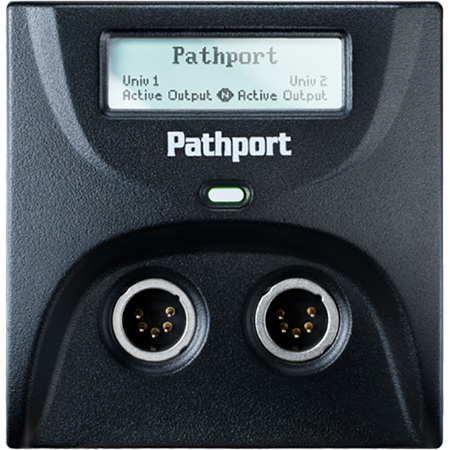

The Pathway Connectivity P6202 is the original and their most popular Pathport™ gateway. It is suitable for flushmount, permanent installation, or for portable use.

  • Features:

    • Two DMX512 ports, individually configurable
    • DMX routing on a universe or channel-by-channel basis
    • Multiple source merging or prioritizing
    • DMX output speed and signal loss behavior user-set
    • LCD display provides status feedback
    • Power-over-Ethernet (PoE) or auxiliary 24VDC power supply (by others)
    • E1.20 RDM compliant as proxy device
    • Manage up to 128 RDM responders per port
    • Fits standard 2-gang, deep backbox
    • Surface mount or portable enclosures as accessories
    • Elegant design suitable for any location
    • Supports the following Ethernet protocols: E1.31 Streaming ACN (sACN), Strand Shownet, Pathport Protocol, Art-Net, ETC Net2 (receive only)


  • Specifications:

    • Power-over-Ethernet: Class 1 device - 4W maximum
    • Operating Conditions: -10 to +50°C, 5-95% relative humidity, non-condensing


  • Item Includes:

    • 1x Pathway P6202 Pathport C-Series Gateway with 2 DMX XLR5F Outputs
